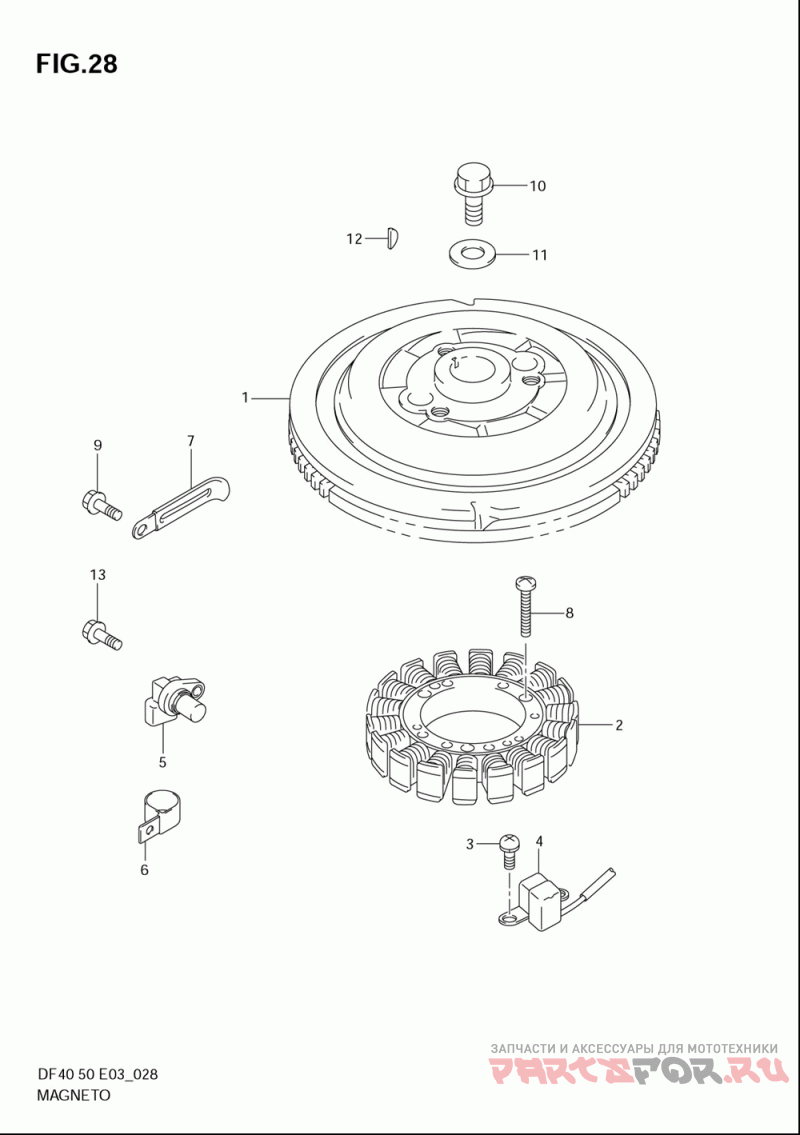

Магнето (модели 2001-2004 года)

Suzuki Marine DF40/DF50

Магнето (модели 2001-2004 года)

#

oem код

название

цена

1

Flywheel Comp M

Flywheel Comp M

2

Coil, Battery Ch

Coil, Battery Ch

3

.screw, Vacuum Valve

.screw, Vacuum Valve

4-1

Coil Assy, Ign T

Coil Assy, Ign T

4-2

Coil, Ignition T

Coil, Ignition T

5

Sensor Assy, Cam

Sensor Assy, Cam

6

Protector, State

Protector, State

7

Зажим

Зажим

8

Винт

Винт

9

Болт

Болт

10-1

Болт

Болт

10-2

Bolt, Magneto Fl (df40:421179~df50:421540~)

Bolt, Magneto Fl (df40:421179~df50:421540~)

11-1

Washer (16.5x36x4.5)

Washer (16.5x36x4.5)

11-2

Washer, Magneto (df40:421179~df50:421540~)

Washer, Magneto (df40:421179~df50:421540~)

12

Шпонка

Шпонка

13

.bolt, Remocon Cable Holder

.bolt, Remocon Cable Holder

4-2

Coil Comp, Ign T

Coil Comp, Ign T
