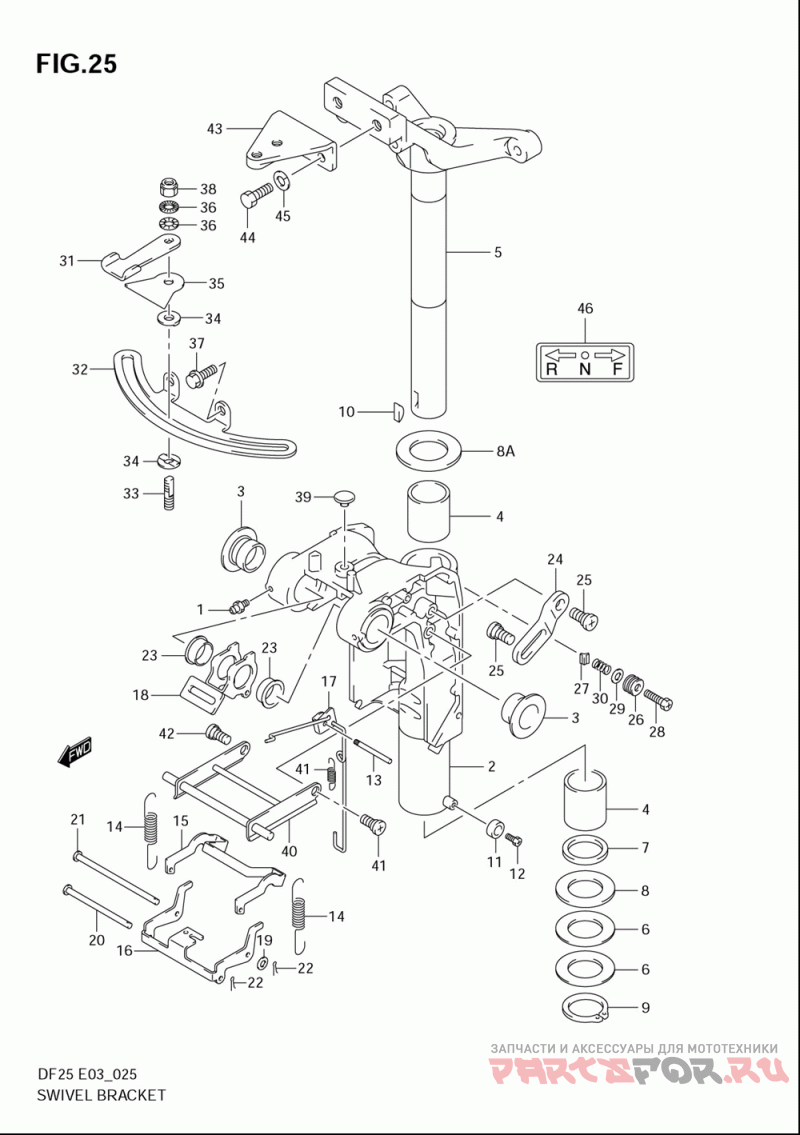

Поворотный кронштейн

Suzuki Marine DF25

Suzuki Marine
#oem кодцена
1
22511-99011
Ниппель
2-1
43111-95J00-0EP
Bracket, Swivel(
2-2
43111-95J10-0EP
Bracket, Swivel(
3
43211-87J00
Bush, Swivel Bra
4
43711-89J10
Bush, Steering
5-1
43750-95J00-0EP
Bracket Comp, St
5-2
43750-95J10-0EP
Bracket, Steerin
6
09181-39001
Регулировочная прокладка
7
09282-39001
Oil Seal 39x51x
8
09160-39001
Washer (39.5x64x1.0)
8A
43721-95J00
Plate, Steering
9
09380-38003
Пружинное стопорное кольцо
10
09420-05003
Шпонка
11
55321-87J00
Anode, Protectio
12
09103-06281
Болт (6х14)
13
41225-94502
Pin, Tilt Lock S
14
45211-95J00
Spring, Reverse
15
45231-95J00
Arm, Reverse Loc
16
45241-95J00
Link, Reverse Lo
17
45250-95J00
Link Comp, Relea
18
45261-95J00
Lever, Release
19
09160-06082
Шайба , рычага сцепления
20
09200-06069
Pin, Rev Lock Arm
21
09200-06070
Pin, Rev Lock Arm Link
22
09204-01002
Шплинт
23
09306-22006
Втулка
24
41223-95J00
Arm, Tilt Stop
25
09106-10078
Bolt, 10x28.5
26
43412-93900
Cover Adjust
27
43417-95J00
Adjuster, Steeri
28
09100-08227
Bolt L:27 (sus)
29
09160-08082
Washer (8.5x16x1.2)
30
09440-11022
Пружина
31
43411-95J00
Lever, Steering
32
43415-95J00
Plate, Steering
33
43512-95J00
Shaft, Steering
34
43514-95J00
Washer, Strg Adj
35
43514-95J10
Plate, Steering
36
43516-89J00
Washer, Steering
37
09116-08137
Bolt, 8x22
38
09159-08131
Nut, Steering Adjuster
39
09250-08010
Plug, Steering Adjuster
40
45710-95J01
Arm Comp, Shallo
41
45722-95J00
Spring, Shallow
43
43755-95J01
Attachment, Stee
44
09100-10270
..bolt
45
09162-10005
Шайба
46
21131-96010
Mark, Clutch Shi
