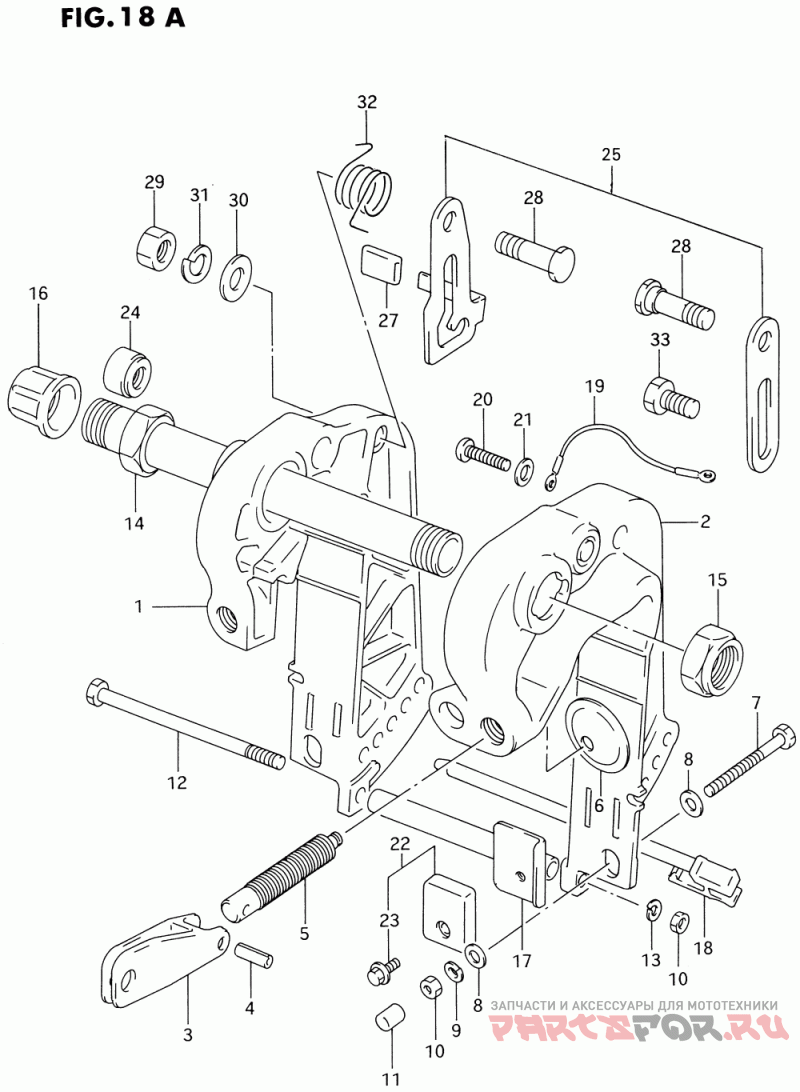

Clamp Bracket (model:94~00)(*)

Suzuki Marine DT25C

Clamp Bracket (model:94~00)(*)

#

oem код

название

цена

1

41110-95D20-0ED

BRACKET, CLAMP STBD (GRAY)

BRACKET, CLAMP STBD (GRAY)

2

41120-95D30-0ED

BRACKET, CLAMP PORT (GRAY)

BRACKET, CLAMP PORT (GRAY)

3

41212-93000-0ED

HANDLE, CLAMP (GRAY)

HANDLE, CLAMP (GRAY)

4

PIN (6X25)

PIN (6X25)

5

SCREW, CLAMP (L:90)

SCREW, CLAMP (L:90)

6

Пластина

Пластина

7

BOLT (8X90)

BOLT (8X90)

8

WASHER, TRANSOM

WASHER, TRANSOM

9

Гровер

Гровер

10

Гайка

Гайка

11

CAP, TRANSOM BELT

CAP, TRANSOM BELT

14

SHAFT, CLAMP BRACKET

SHAFT, CLAMP BRACKET

15

NUT, CLAMP BRACKET SHAFT

NUT, CLAMP BRACKET SHAFT

16

CAP, CLAMP BRACKET SHAFT

CAP, CLAMP BRACKET SHAFT

17

ROD, CLAMP BRACKET

ROD, CLAMP BRACKET

18

PIN, TILT LOCK

PIN, TILT LOCK

19

LEAD

LEAD

20

SCREW (5X8)

SCREW (5X8)

21

Шайба

Шайба

22

Болт (6x15)

Болт (6x15)

23

Болт (6x15)

Болт (6x15)

23

BOLT (6X16)

BOLT (6X16)

24

SEAL, STEERING CABLE

SEAL, STEERING CABLE

25

ARM SET, TILT

ARM SET, TILT

27

RUBBER, TILT LOCK ARM

RUBBER, TILT LOCK ARM

28

BOLT (10X48.5)

BOLT (10X48.5)

29

NUT, TILT LOCK

NUT, TILT LOCK

30

WASHER, TILT LOCK

WASHER, TILT LOCK

31

Гровер

Гровер

32

SPRING, TILT LOCK ARM

SPRING, TILT LOCK ARM

33

BOLT (10X20.4)

BOLT (10X20.4)
