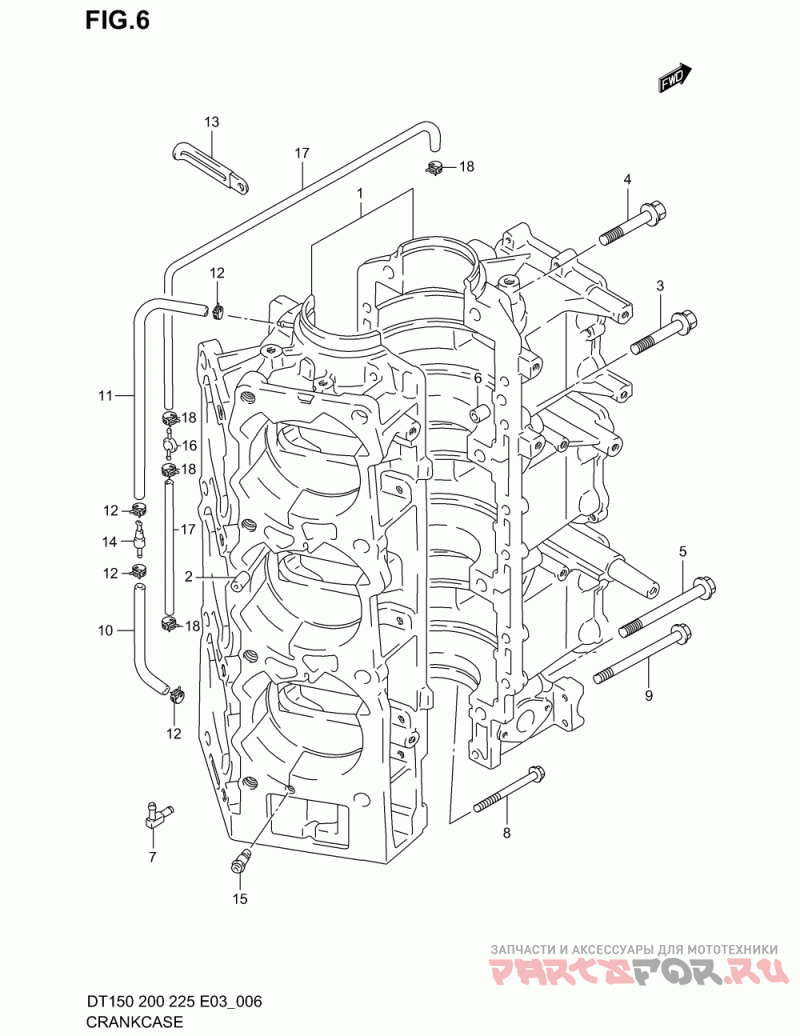

Crankcase (dt225-225g)
Suzuki Marine DT150
| # | oem код | название | цена |
|---|---|---|---|
1 | 11300-88DV0-0ED CRANKCASE ASSY (GRAY) | CRANKCASE ASSY (GRAY) | |
3 | 01550-08407 Болт | Болт | |
6 | 04211-11129 PIN, CRANKCASE KNOCK | PIN, CRANKCASE KNOCK | |
8 | 01550-06507 Болт | Болт | |
9 | 01550-06907 Болт | Болт | |
10 | 09355-30705-600 HOSE, LUBRICATION UPPER | HOSE, LUBRICATION UPPER | |
12 | 09401-06405 Зажим | Зажим | |
14 | 16710-95211 VALVE, LUBRICATION | VALVE, LUBRICATION | |
15 | 16710-87E10 Клапан | Клапан | |
16 | 16810-95501 FILTER, LUBRICTION | FILTER, LUBRICTION | |
17 | 09352-50901-600 HOSE, LUBRICATION NO.2 | HOSE, LUBRICATION NO.2 | |
18 | 09401-08411 Зажим | Зажим |
