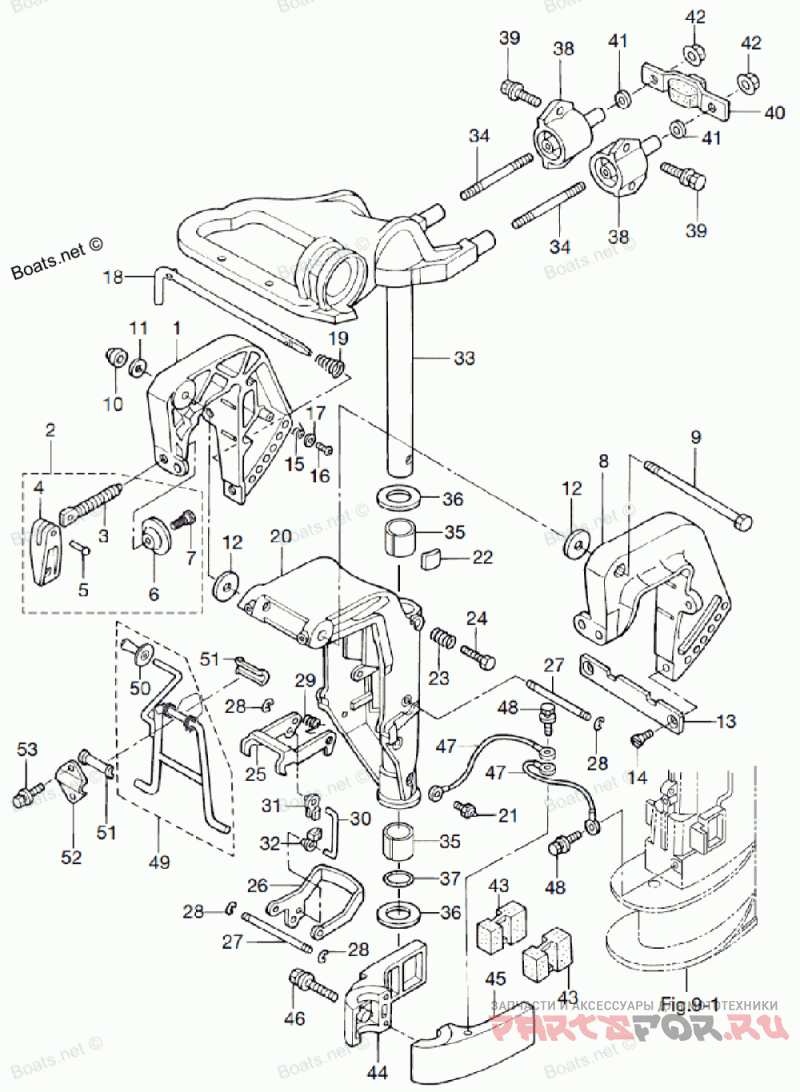

Bracket, Mf & Ef Type

Nissan NSF8A3

Nissan
#oem кодцена
1
3V1Q621121
CLAMP BRACKET R
2
3V1Q621050
CLAMP SCREW KIT
3
3V1621060M
CLAMP SCREW
4
332Q621021
CLAMP SCREW HANDLE
5
3C8621042M
RIVET 3-22
6
332621010M
CLAMP SCREW PAD
7
3C8621070M
SHOULDER BOLT
8
3V1Q621131
CLAMP SCREW, LEFT
9
309621152M
BOLT 8-122
10
9304030800
NYLON NUT 8P1.25
11
9401E30800
Шайба
12
307621161M
WASHER 8.5-28-1
13
3B2621180M
DISTANCE PLATE BRACKET
14
9216E30612
Винт
15
369621461M
STERN BRACKET SPRING
16
9217030406
Винт
17
369621470M
WASHER 4.3-16-1.5
18
350621212M
Штанга
19
369621222M
THRUST ROD SPRING
20
3V1Q623100
SWIVEL BRACKET
21
344671770M
Масленка
22
345624410M
Стопор фрикционный
23
346624211M
FICTION SPRING
24
9101E30830
Болт
25
3V1663220M
REVERSE LOCK
26
3V1663130M
REVERSE LOCK ARM
27
3B2663211M
REVERSE LOCK ROD
28
9453030500
E-RING DIAMETER: 5
29
3B2663150M
REVERSE LOCK SPRING
30
3V1663051M
REVERSE LOCK LINK
31
3C8637330M
ROD SNAP 5-3
32
3K9052230M
ROD SNAP 4-2
33
3V1Q620100
STEERING SHAFT ASSEMBLY
34
3V1613131M
Шпилька
35
350624170M
BUSHING 24-30-30
36
350624230M
THUST PLATE, UPPER
37
350624150M
O-RING 3.5-22
38
3V1B613011
RUBBER MOUNT, UPPER
39
9101F45620
Болт
40
3V1613331M
DAMPER, UPPER
41
9401E30800
Шайба
42
3V1613240M
NUT, WITH FLANGE
43
3V1613020M
RUBBER MOUNT, LOWER
44
3V1Q614010
MOUNT BRACKET, RIGHT
45
3V1Q614020
MOUNT BRACKET, LEFT
46
9101E35652
Болт
46
3A3623961M
GROUND, EARTH WIRE, LENGTH: 110
47
3A3623961M
GROUND, EARTH WIRE, LENGTH: 110
48
9101E35612
Болт
49
3V1624311M
TILT STOPPER ASSEMBLY
50
3AS624330M
TILT STOPPER GRIP
51
393624370M
BUSHING TILT STOPPER
52
369624391M
SETTING PLATE TILT STOPPER
53
9101E35612
Болт
