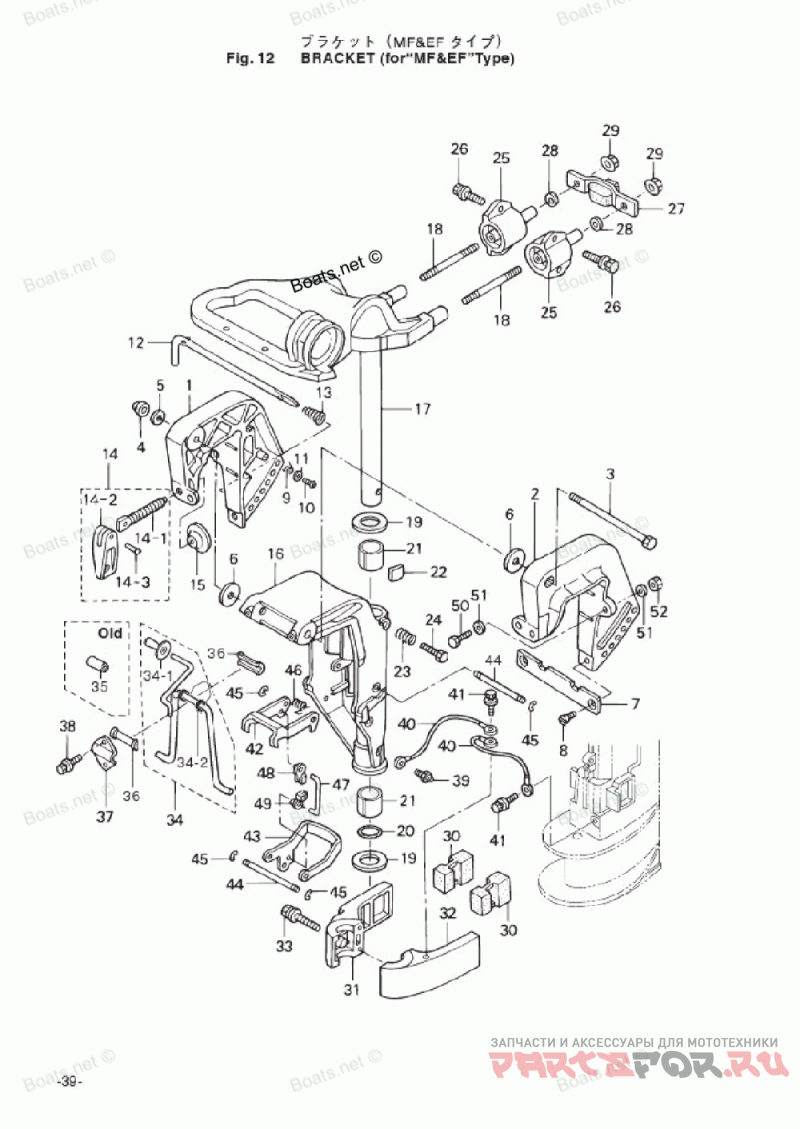

Bracket (for "mf & Ef" Type)

Nissan NSF9.8A3

Nissan
#oem кодцена
1
3V1Q621121
STERN BRACKET (RIGHT)
2
3V1Q621131
STERN BRACKET (LEFT)
3
309621152M
BOLT, 18 -122
4
9304030800
NYLON NUT, 8 - P1.25
5
9401E30800
Шайба
6
307621161M
WASHER, 8.5 - 28 - 1
7
3B2621180M
DISTANCE PLATE
8
9216E30612
Винт
9
369621461M
CLAMP BRACKET SPRING
10
9217030406
Винт
11
369621470M
WASHER, 4.3 - 16 - 1.5
12
350621212M
Штанга
13
369621222M
SPRING, THRUST ROD
14
398Q621001
ASSEMBLY
14-1
398621031M
CLAMP SCREW
14-2
332Q621021
HANDLE, CLAMP SCREW
14-3
3C8621042M
RIVET, 3 - 22
15
332621010M
PAD, CLAMP SCREW
16
3V1Q623100
SWIVEL BRACKET
17
3V1Q620100
STEERING SHAFT
18
3V1613131M
Шпилька
19
350624230M
THRUST PLATE, 22 - 44 - 2
20
350624150M
O-RING, 3.5 - 22
21
350624170M
BUSHING, 24 - 30 - 30
22
345624410M
FRICTION PLATE
23
346624211M
FRICTION SPRING
24
9101E30830
Болт
25
3V1B613011
RUBBER MOUNT (UPPER)
26
9101F45620
Болт
27
3V1613331M
DAMPER (UPPER)
29
3V1613240M
Гайка
30
3V1613020M
RUBBER MOUNT (LOWER)
31
3V1Q614010
MOUNT BRACKET (RIGHT)
32
3V1Q614020
MOUNT BRACKET (LEFT)
33
9101E35652
Болт
34
3V1624311M
TILT STOPPER
34-1
3AS624330M
GRIP, TILT STOPPER
34-2
369624340M
Пружина
35
369624331M
GRIP, TILT STOPPER
36
393624370M
TILT STOPPER BUSHING
37
369624391M
TILT STOPPER SETTING PLATE
38
9101E35612
Болт
39
344671770M
Масленка
40
3A3623961M
GROUND CABLE
42
3V1663220M
REVERSE LOCK
43
3V1663130M
REVERSE LOCK ARM
44
3B2663211M
REVERSE LOCK ROD
45
9453030500
E-RING, D=5
46
3B2663150M
SPRING, REVERSE LOCK
47
3V1663051M
LINK, REVERSE LOCK
48
3C8637330M
ROD SNAP, 5 - 3
49
3K9052230M
ROD SNAP, 4 -2
50
9101E30885
Болт
