Clamp Bracket & Swivel Bracket для лодочных моторов Nissan NSF2B (2009)

Москва и регионы России

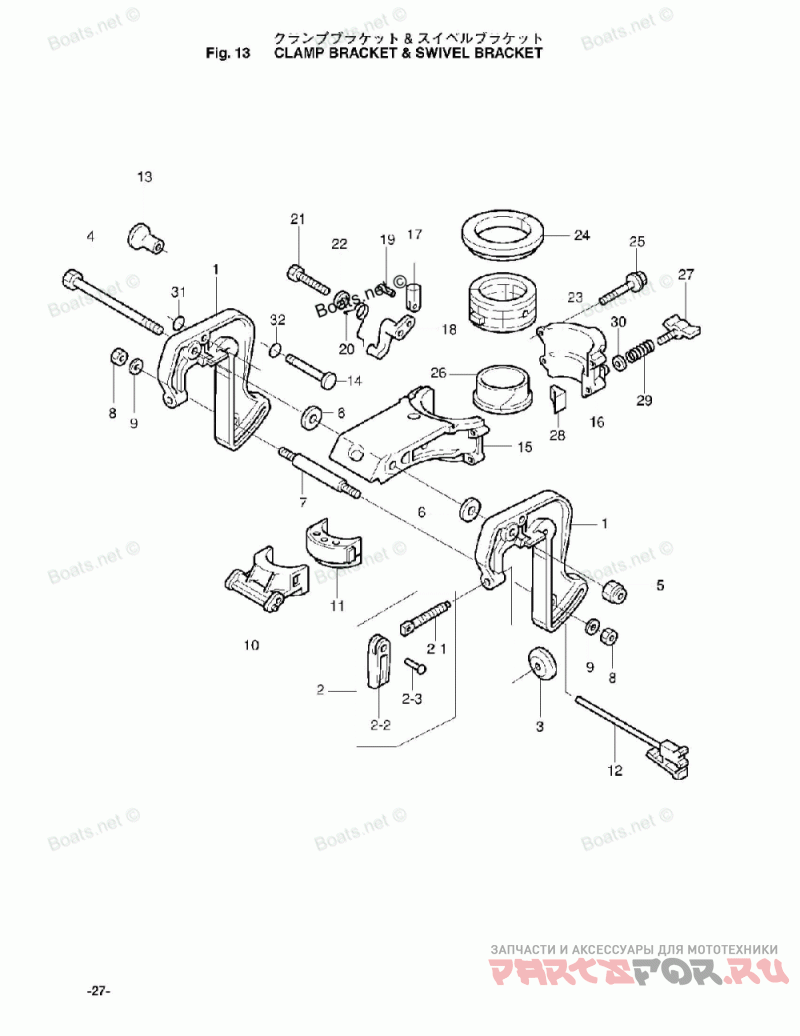

Clamp Bracket & Swivel Bracket

Nissan NSF2B

Clamp Bracket & Swivel Bracket

#

oem код

название

цена

1

CLAMP BRACKET (TILT PIN HOLE 10)

CLAMP BRACKET (TILT PIN HOLE 10)

1

CLAMP BRACKET (TILT PIN HOLE 10)

CLAMP BRACKET (TILT PIN HOLE 10)

1

CLAMP BRACKET (TILT PIN HOLE 8)

CLAMP BRACKET (TILT PIN HOLE 8)

2

CLAMP SCREW ASSY

CLAMP SCREW ASSY

2-1

CLAMP SCREW

CLAMP SCREW

2-2

CLAMP SCREW HANDLE

CLAMP SCREW HANDLE

2-3

RIVET, 3-22

RIVET, 3-22

3

CLAMP SCREW PAD

CLAMP SCREW PAD

4

BOLT, 8 -122

BOLT, 8 -122

5

NYLON NUT, 8-P1.25

NYLON NUT, 8-P1.25

6

WASHER, 8.5-28-1

WASHER, 8.5-28-1

7

DISTANCE PIECE

DISTANCE PIECE

8

Гайка

Гайка

9

Шайба

Шайба

10

THRUST SUPPORTER

THRUST SUPPORTER

11

DAMPER (LOWER)

DAMPER (LOWER)

12

Штанга

Штанга

13

TILT STOPPER KNOB

TILT STOPPER KNOB

14

TILT STOPPER 8 (WIITHOUT O-RING)

TILT STOPPER 8 (WIITHOUT O-RING)

14

TILT STOPPER 10 (WITHOUT O-RING)

TILT STOPPER 10 (WITHOUT O-RING)

14

TILT STOPPER 10 (WITH O-RING)

TILT STOPPER 10 (WITH O-RING)

15

SWIVEL BRACKET "A"

SWIVEL BRACKET "A"

16

SWIVEL BRACKET "B"

SWIVEL BRACKET "B"

17

STEERING STOPPER

STEERING STOPPER

18

STOPPER LEVER

STOPPER LEVER

19

SPRING PIN, 2-12

SPRING PIN, 2-12

20

STOPPER LEVER SPRING

STOPPER LEVER SPRING

21

Болт

Болт

23

STEERING BUSHING

STEERING BUSHING

24

THRUST BUSHING

THRUST BUSHING

25

BOLT, 6 - 35 PRE-COATED

BOLT, 6 - 35 PRE-COATED

26

PIVOT BUSHING (WHITE)

PIVOT BUSHING (WHITE)

26

PIVOT BUSHING (BLACK)

PIVOT BUSHING (BLACK)

27

FRICTION PLATE SCREW

FRICTION PLATE SCREW

28

FRICTION PLATE

FRICTION PLATE

29

FRICTION SPRING

FRICTION SPRING

31

O-RING, 2.4 - 9.5

O-RING, 2.4 - 9.5

32

O-RING, 1.25-8

O-RING, 1.25-8
