Bracket (2) Power Trim & Tilt (new) для лодочных моторов Nissan NSD40B (2006)

Москва и регионы России

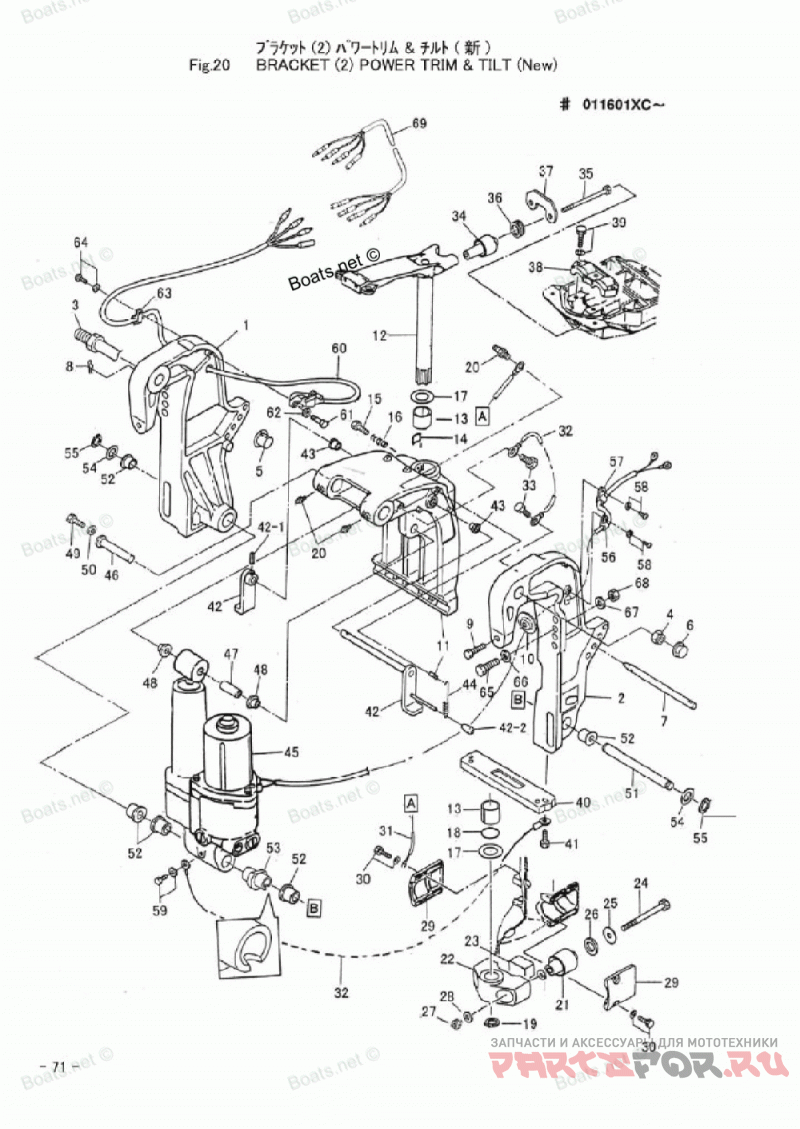

Bracket (2) Power Trim & Tilt (new)

Nissan NSD40B

Bracket (2) Power Trim & Tilt (new)

#

oem код

название

цена

1

CLAMP BRACKET (RIGHT)

CLAMP BRACKET (RIGHT)

2

CLAMP BRACKET (LEFT)

CLAMP BRACKET (LEFT)

3

SWIVEL BRACKET SHAFT

SWIVEL BRACKET SHAFT

4

NYLON NUT, 7/8

NYLON NUT, 7/8

5

BUSHING, BRACKET BOLT

BUSHING, BRACKET BOLT

6

CAP, BRACKET BOLT

CAP, BRACKET BOLT

7

Штанга

Штанга

8

SNAP PIN, D=10

SNAP PIN, D=10

9

CLAMP SCREW

CLAMP SCREW

10

PAD, CLAMP SCREW

PAD, CLAMP SCREW

11

SWIVEL BRACKET (POWER TRIM & TILT)

SWIVEL BRACKET (POWER TRIM & TILT)

12

STEERING SHAFT

STEERING SHAFT

13

BUSHING, 30 - 36 - 41

BUSHING, 30 - 36 - 41

14

FRICTION PLATE

FRICTION PLATE

15

Болт

Болт

16

Пружина

Пружина

17

THRUST PLATE

THRUST PLATE

18

O-RING, 3.5 - 29.7

O-RING, 3.5 - 29.7

19

C-RING, D=28

C-RING, D=28

20

Масленка

Масленка

21

RUBBER MOUNT (LOWER)

RUBBER MOUNT (LOWER)

22

MOUNT BRACKET

MOUNT BRACKET

23

DAMPER (LOWER)

DAMPER (LOWER)

24

RUBBER MOUNT BOLT (LOWER)

RUBBER MOUNT BOLT (LOWER)

25

WASHER, 13 - 34 - 3

WASHER, 13 - 34 - 3

26

DAMPER RUBBER, 21 - 36 - 5

DAMPER RUBBER, 21 - 36 - 5

27

NYLON NUT, 12 - P1.75

NYLON NUT, 12 - P1.75

28

Шайба

Шайба

29

MOUNT HOLDING PLATE (LOWER)

MOUNT HOLDING PLATE (LOWER)

30

Болт

Болт

31

GROUND CABLE

GROUND CABLE

32

GROUND CABLE

GROUND CABLE

33

Болт

Болт

34

RUBBER MOUNT (UPPER)

RUBBER MOUNT (UPPER)

35

RUBBER MOUNT BOLT (UPPER)

RUBBER MOUNT BOLT (UPPER)

36

DAMPER (UPPER)

DAMPER (UPPER)

37

LOCK PLATE (UPPER)

LOCK PLATE (UPPER)

38

MOUNT HOLDING PLATE (UPPER)

MOUNT HOLDING PLATE (UPPER)

39

Болт

Болт

40

Анод

Анод

41

Болт

Болт

42

TILT STOPPER (PTT)

TILT STOPPER (PTT)

42-1

SPRING PIN, 3.5 - 16

SPRING PIN, 3.5 - 16

42-2

GRIP, TILT STOPPER

GRIP, TILT STOPPER

43

COLLAR, 10.2 - 12 - 12

COLLAR, 10.2 - 12 - 12

44

SPRING, TILT STOPPER (PTT)

SPRING, TILT STOPPER (PTT)

45

POWER TRIM & TILT

POWER TRIM & TILT

46

CYLINDER PIN (UPPER)

CYLINDER PIN (UPPER)

47

BUSHING, 13 - 16 - 40

BUSHING, 13 - 16 - 40

48

BUSHING, 13 - 17 - 19.5

BUSHING, 13 - 17 - 19.5

49

Болт

Болт

50

WASHER, 6.5 - 23 - 1.5

WASHER, 6.5 - 23 - 1.5

51

CYLINDER PIN (LOWER)

CYLINDER PIN (LOWER)

52

BUSHING, 18 - 24 - 22

BUSHING, 18 - 24 - 22

53

BUSHING, 18 - 24 - 60

BUSHING, 18 - 24 - 60

54

WASHER, 18.2 - 34 - 1

WASHER, 18.2 - 34 - 1

55

C-RING, D=18

C-RING, D=18

56

CLAMP, 6 - 9.5L

CLAMP, 6 - 9.5L

57

CLAMP, 6 - 14L

CLAMP, 6 - 14L

58

Винт

Винт

60

TRIM SENDER

TRIM SENDER

61

Болт

Болт

62

WASHER, 6 - 16 - 1.5

WASHER, 6 - 16 - 1.5

65

BOLT, 12 - P1.25

BOLT, 12 - P1.25

67

Шайба

Шайба

68

NUT, 12 - P1.25

NUT, 12 - P1.25

69

EXTENSION CORD (TRIM SENSOR)

EXTENSION CORD (TRIM SENSOR)
