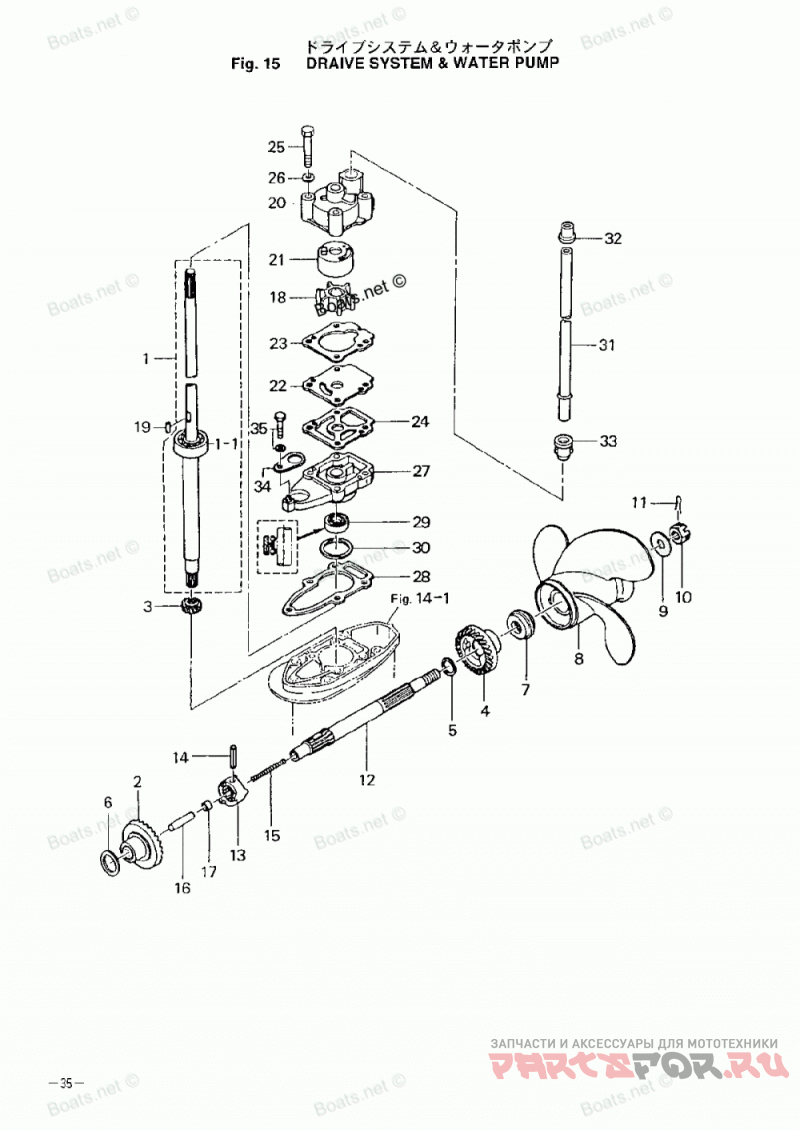

Drive System & Water Pump

Nissan NSF9.8A

Nissan
#oem кодцена
1
3B2643010M
Вертикальный вал "S"
1
3B2643020M
Вертикальный вал "L"
1
3B2643030M
DRIVE SHAFT "UL"
1-1
960106301M
BALL BEARING, 6301
2
3B2640100M
BEVEL GEAR "A"
3
3B2640200M
BEVEL GEAR "B"
4
3B2640300M
BEVEL GEAR "C"
5
369640320M
WASHER, 15.2 - 19 - 1.9
6
369640140M
SHIM, 21 - 28 - 0.1
6
369640150M
SHIM, 21 - 28 - 0.15
7
3B2642301M
THRUST HOLDER, PROPELLER
8
3B2W645140
PROPELLER (7), 3 X 8.9 X 7.0
8
3B2645150M
PROPELLER (7.5), 3 X 8.5 X 7.5
8
3B2645170M
PROPELLER (8.5), 3 X 8.9 X 8.3
8
3B2645180M
PROPELLER (9.5), 3 X 8.9 X 10.0
8
3B2645130M
PROPELLER (6.5), 3 X 8.5 X 6.5
9
369641240M
WASHER, 10.5 - 28 - 2
10
369641210M
NUT, PROPELLER
11
9515030318
SPLIT PIN, 3-18
12
3V1642110M
Вал гребного винта
13
3B2642150M
Муфта сцепления
14
301642170M
SPRING PIN, 3.5 - 28
15
3V1642210M
Пружина
16
369642230M
PUSH ROD, CLUTCH
17
3B2642220M
SPRING HOLDER, CLUTCH
18
3B2650211M
Импеллер
19
3B2650220M
KEY, WATER PUMP IMPELLER
20
3B2650160M
PUMP CASE UPPER
21
3B2650110M
LINER, PUMP CASE
22
3B2650250M
GUIDE PLATE, WATER PUMP
24
3B2650290M
GASKET, GUIDE PLATE
25
9161130650
Болт
26
9401130600
Шайба
27
3B2650170M
PUMP CASE LOWER
28
3B2650200M
GASKET, PUMP CASE LOWER
29
309601110M
OIL SEAL, 12 - 24 - 8
30
3B2640230M
GAP LINER, 28 - 36.8
31
3V1651100M
WATER PIPE "L"
31
3V1651200M
WATER PIPE "UL"
31
3V1651000M
WATER PIPE "S"
32
3V1652060M
SEAL UPPER, WATER PIPE
33
331650140M
SEAL LOWER, WATER PIPE
34
369660330M
STOPPER, CAM ROD BUSHING
35
9101135625
Болт
