Колпак мотора для лодочных моторов Nissan NS25C3 (2005)

Москва и регионы России

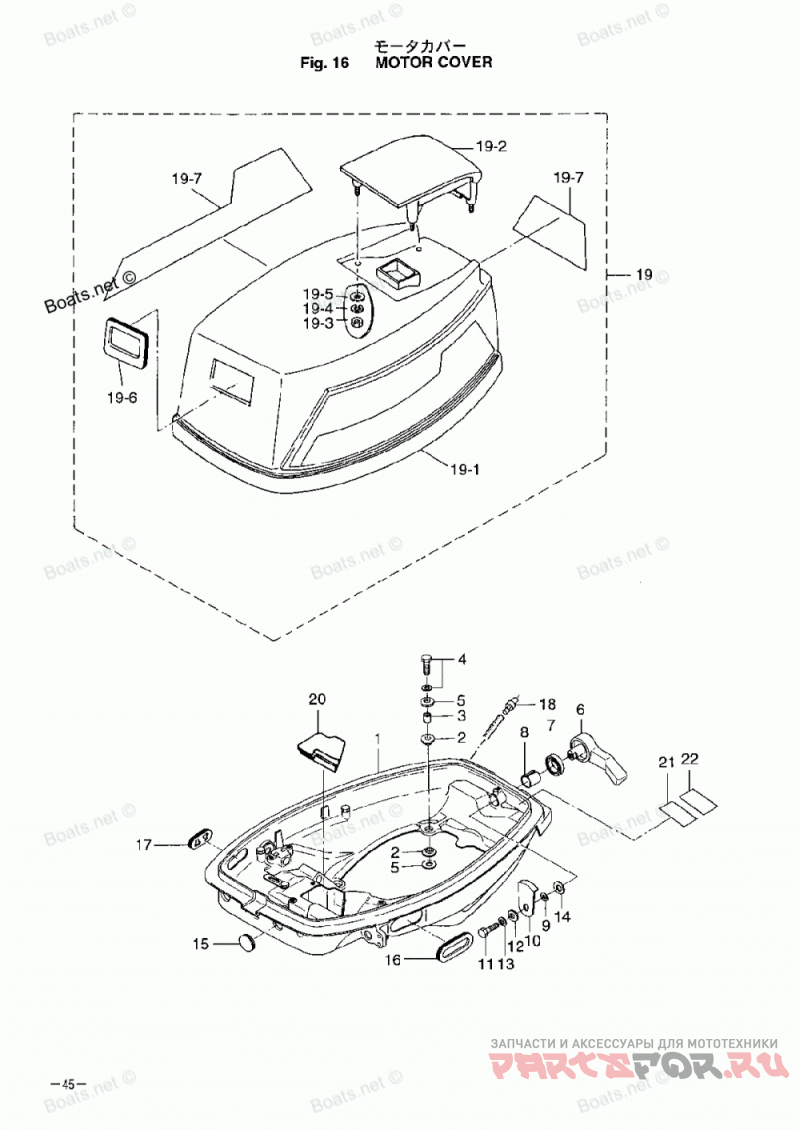

Колпак мотора

Nissan NS25C3

Колпак мотора

#

oem код

название

цена

1

MOTOR COVER LOWER

MOTOR COVER LOWER

2

MOUNT RUBBER, MOTOR COVER LOWER

MOUNT RUBBER, MOTOR COVER LOWER

3

SPACER, 6.2 - 9 - 15.7

SPACER, 6.2 - 9 - 15.7

4

Болт

Болт

5

WASHER, 6.5 - 21 - 1

WASHER, 6.5 - 21 - 1

6

HOOK LEVER

HOOK LEVER

7

SEAL RING, HOOK LEVER

SEAL RING, HOOK LEVER

8

BUSHING, 14 - 16.5 - 17.7

BUSHING, 14 - 16.5 - 17.7

9

WAVE WASHER, D=14

WAVE WASHER, D=14

10

COVER HOOK

COVER HOOK

11

Болт

Болт

12

WASHER, 6 - 16 - 1.5

WASHER, 6 - 16 - 1.5

13

Пружинная шайба

Пружинная шайба

14

WASHER, 14 - 22 - 1

WASHER, 14 - 22 - 1

15

GROMMET, 22 - 3

GROMMET, 22 - 3

16

GROMMET "B", MOTOR COVER LOWER

GROMMET "B", MOTOR COVER LOWER

17

GROMMET, BATTERY CABLE

GROMMET, BATTERY CABLE

18

WATER NIPPLE

WATER NIPPLE

19

MOTOR COVER UPPER

MOTOR COVER UPPER

19-1

SEAL RUBBER, MOTOR COVER UPPER

SEAL RUBBER, MOTOR COVER UPPER

19-2

Ручка наклона

Ручка наклона

19-3

Гайка

Гайка

19-5

WASHER, 6.5 - 16 - 2

WASHER, 6.5 - 16 - 2

19-6

SEAL RUBBER, STARTER

SEAL RUBBER, STARTER

19-7

DECAL SET

DECAL SET

20

GROMMET "D", MOTOR COVER LOWER

GROMMET "D", MOTOR COVER LOWER

21

LABEL, SPARK PLUG

LABEL, SPARK PLUG

22

LABEL, SPARK PLUG (WITH RESISTANCE)

LABEL, SPARK PLUG (WITH RESISTANCE)
