Tiller Handler для лодочных моторов Nissan NS40C (2004)

Москва и регионы России

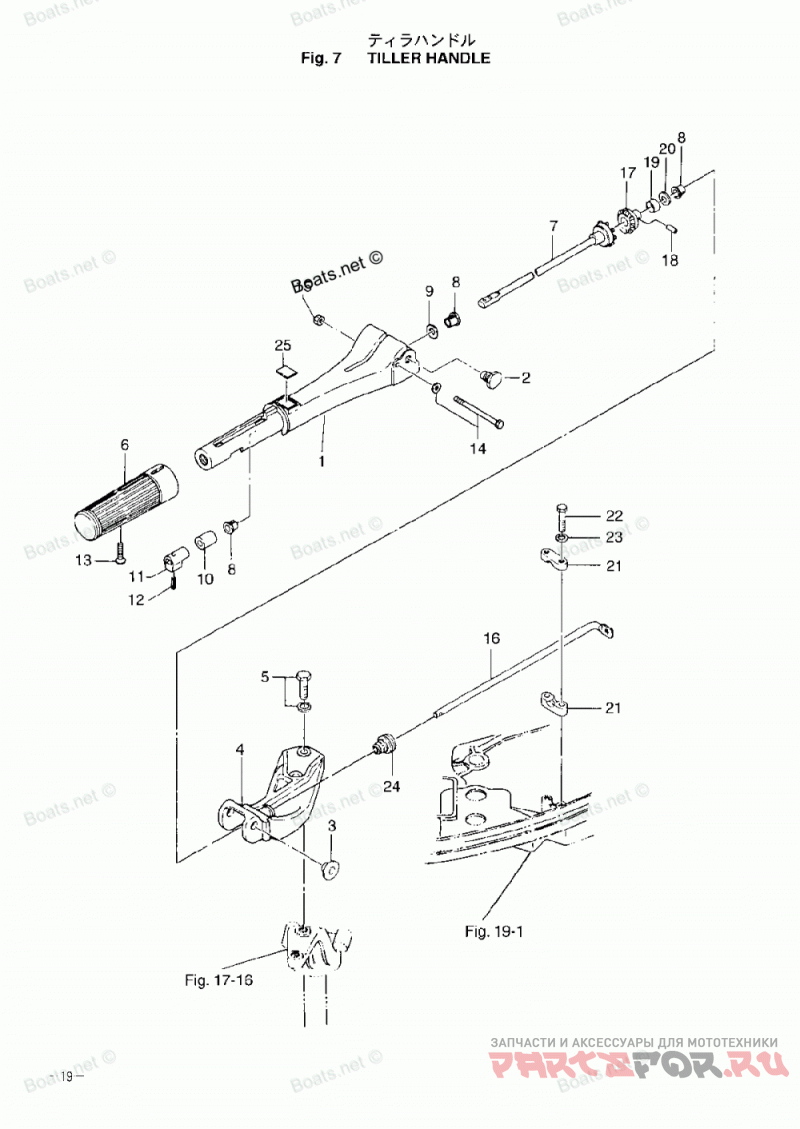

Tiller Handler

Nissan NS40C

Tiller Handler

#

oem код

название

цена

1

STEERING HANDLE

STEERING HANDLE

2

Болт

Болт

3

COLLAR, 9.8 - 12 - 7.5

COLLAR, 9.8 - 12 - 7.5

4

HANDLE "B"

HANDLE "B"

5

Болт

Болт

6

Рукоятка

Рукоятка

7

THROTTLE SHAFT "A"

THROTTLE SHAFT "A"

8

BUSHING, 8.4 - 10 - 11

BUSHING, 8.4 - 10 - 11

9

WAVE WASHER, D=10

WAVE WASHER, D=10

10

RUBBER, THROTTLE SHAFT "A"

RUBBER, THROTTLE SHAFT "A"

11

SPACER, THROTTLE SHAFT

SPACER, THROTTLE SHAFT

12

SPRING PIN, 3 - 10

SPRING PIN, 3 - 10

13

Винт

Винт

14

Болт

Болт

15

NYLON NUT, 6P - 1.0

NYLON NUT, 6P - 1.0

16

THROTTLE SHAFT "B"

THROTTLE SHAFT "B"

17

UNIVERSAL PINION

UNIVERSAL PINION

18

SPRING PIN, 4 - 14

SPRING PIN, 4 - 14

19

COLLAR, 15.9 - 17.1 - 9

COLLAR, 15.9 - 17.1 - 9

20

Шайба

Шайба

21

SUPPORTER, THROTTLE SHAFT "B"

SUPPORTER, THROTTLE SHAFT "B"

22

Болт

Болт

23

Шайба

Шайба

24

GROMMET, THROTTLE SHAFT

GROMMET, THROTTLE SHAFT

25

LABLE, THROTTLE

LABLE, THROTTLE
