Assembly Kit для лодочных моторов Nissan NSF8A (2003)

Москва и регионы России

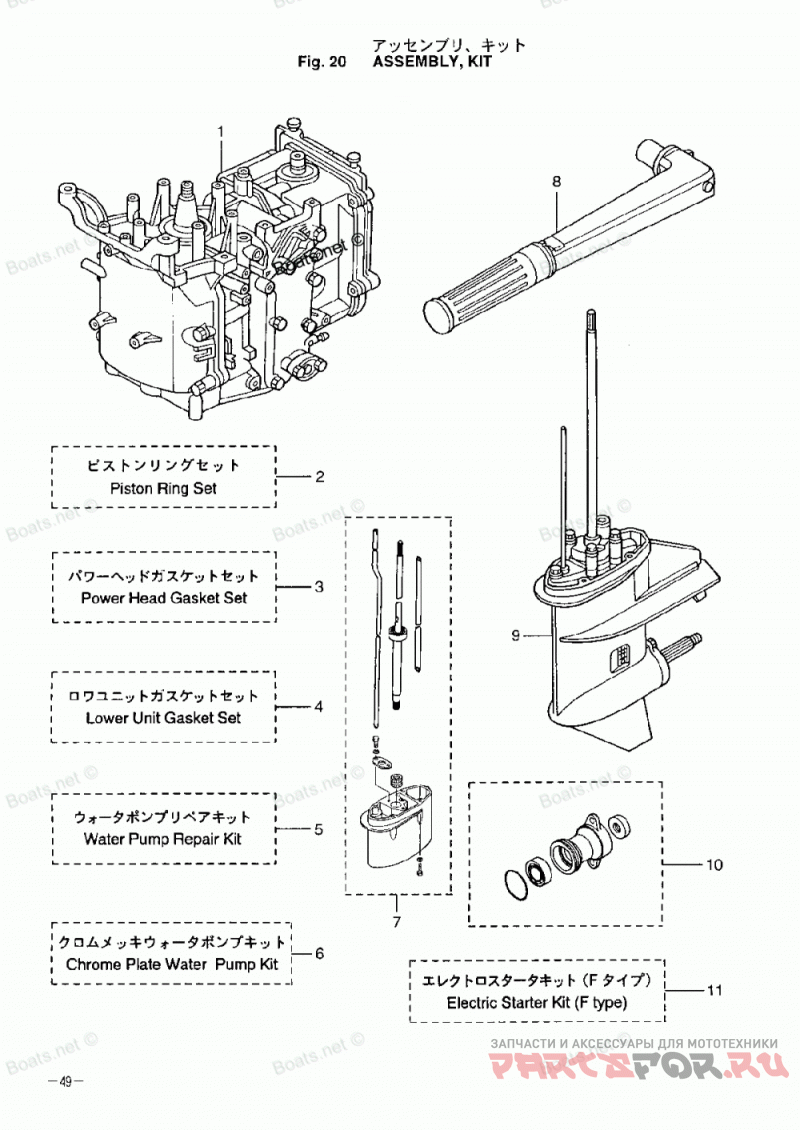

Assembly Kit

Nissan NSF8A

Assembly Kit

#

oem код

название

цена

1

ENGINE SHORT BLOCK

ENGINE SHORT BLOCK

2

PISTON RING OIL (0.5MM O/S)

PISTON RING OIL (0.5MM O/S)

2

PISTON RING TOP

PISTON RING TOP

2

PISTON RING 2ND

PISTON RING 2ND

2

PISTON RING OIL

PISTON RING OIL

2

PISTON RING SET (0.5MM O/S)

PISTON RING SET (0.5MM O/S)

2

PISTON RING TOP (0.5MM O/S)

PISTON RING TOP (0.5MM O/S)

2

PISTON RING 2ND (0.5MM O/S)

PISTON RING 2ND (0.5MM O/S)

2

PISTON RING SET (STD)

PISTON RING SET (STD)

3

GASKET, THERMOSTAT

GASKET, THERMOSTAT

3

O-RING, 2.62 - 18.72

O-RING, 2.62 - 18.72

3

GASKET, ANODE CAP

GASKET, ANODE CAP

3

POWER HEAD GASKET SET

POWER HEAD GASKET SET

3

GASKET, OIL PUMP

GASKET, OIL PUMP

3

GASKET, ENGINE BASE

GASKET, ENGINE BASE

3

Прокладка

Прокладка

3

OIL SEAL, 18 -35 - 8

OIL SEAL, 18 -35 - 8

3

OIL SEAL, 30 - 45 - 8

OIL SEAL, 30 - 45 - 8

3

Прокладка

Прокладка

3

OIL SEAL, 12 - 28 - 5

OIL SEAL, 12 - 28 - 5

3

GASKET, INTAKE MANIFOLD

GASKET, INTAKE MANIFOLD

3

O-RING, 3.1 - 24.4

O-RING, 3.1 - 24.4

3

GASKET, CARBURETOR

GASKET, CARBURETOR

3

GASKET, EXHAUST COVER

GASKET, EXHAUST COVER

3

O-RING, 2.4 - 35.2

O-RING, 2.4 - 35.2

4

O-RING, 3.2 - 47

O-RING, 3.2 - 47

4

GASKET, DRIVE SHAFT HOUSING

GASKET, DRIVE SHAFT HOUSING

4

OIL SEAL, 15 - 28 - 10

OIL SEAL, 15 - 28 - 10

4

Прокладка глушителя

Прокладка глушителя

4

GASKET, GUIDE PLATE

GASKET, GUIDE PLATE

4

GASKET, PUMP CASE LOWER

GASKET, PUMP CASE LOWER

4

OIL SEAL, 12 - 24 - 8

OIL SEAL, 12 - 24 - 8

4

LOWER UNIT GASKET SET

LOWER UNIT GASKET SET

4

O-RING, 2.5 - 4.9

O-RING, 2.5 - 4.9

4

GASKET, 8.2 - 14 - 1

GASKET, 8.2 - 14 - 1

4

O-RING, 2.4 - 15.4

O-RING, 2.4 - 15.4

5

GASKET PLATE, WATER PUMP

GASKET PLATE, WATER PUMP

5

WATER PUMP REPAIR KIT

WATER PUMP REPAIR KIT

5

Шайба

Шайба

5

WATER PUMP REPAIR KIT

WATER PUMP REPAIR KIT

5

Импеллер

Импеллер

5

KEY, WATER PUMP IMPELLER

KEY, WATER PUMP IMPELLER

5

LINER, PUMP CASE

LINER, PUMP CASE

6

CHROME PLATE WATER PUMP KIT

CHROME PLATE WATER PUMP KIT

6

LINER, PUMP CASE

LINER, PUMP CASE

6

GUIDE PLATE, WATER PUMP

GUIDE PLATE, WATER PUMP

7

EXTENSION HOUSING KIT "UL"

EXTENSION HOUSING KIT "UL"

7

CAM ROD "UL"

CAM ROD "UL"

7

EXTENSION HOUSING "UL"

EXTENSION HOUSING "UL"

7

WATER PIPE "UL"

WATER PIPE "UL"

7

Болт

Болт

7

BUSHING, DRIVE SHAFT

BUSHING, DRIVE SHAFT

7

Стопор

Стопор

7

Болт

Болт

7

DRIVE SHAFT "UL"

DRIVE SHAFT "UL"

8

HANDLE ASSY

HANDLE ASSY

9

LOWER UNIT ASSY "S"

LOWER UNIT ASSY "S"

9

LOWER UNIT ASSY "L"

LOWER UNIT ASSY "L"

10

PROPELLER SHAFT ASSY

PROPELLER SHAFT ASSY

11

MAIN SWITCH

MAIN SWITCH

11

ELECTRIC STARTER KIT ("F" TYPE)

ELECTRIC STARTER KIT ("F" TYPE)

11

Болт

Болт

11

BRACKET, STARTER MOTOR

BRACKET, STARTER MOTOR

11

FUSE WIRE

FUSE WIRE

11

WASHER, 6 - 16 - 1.5

WASHER, 6 - 16 - 1.5

11

BATTERY CABLE

BATTERY CABLE

11

FLYWHEEL CUP

FLYWHEEL CUP

11

STARTER SOLENOID

STARTER SOLENOID

11

STAY, FUSE HOLDER

STAY, FUSE HOLDER

11

RUBBER MOUNT, 9 - 16 - 4.3

RUBBER MOUNT, 9 - 16 - 4.3

11

Болт

Болт

11

ALTERNATOR

ALTERNATOR

11

Регулятор напряжения

Регулятор напряжения

11

Болт

Болт

11

COLLAR, 6.2 - 9 - 7.4

COLLAR, 6.2 - 9 - 7.4

11

CAP, CORD

CAP, CORD

11

PLUG "B", CABLE TERMINAL

PLUG "B", CABLE TERMINAL

11

Болт

Болт

11

HOLDER, CABLE TERMINAL

HOLDER, CABLE TERMINAL

11

Болт

Болт

11

STARTER CABLE

STARTER CABLE

11

Болт

Болт

11

NEUTRAL SWITCH

NEUTRAL SWITCH

11

BRACKET, TERMINAL HOLDER

BRACKET, TERMINAL HOLDER

11

Стартер электрический

Стартер электрический

11

SPIRAL TUBE PROTECTOR

SPIRAL TUBE PROTECTOR

11

ELECTRIC BRACKET

ELECTRIC BRACKET

11

ACTUATOR, NEUTRAL SWITCH

ACTUATOR, NEUTRAL SWITCH

11

STAY TERMINAL HOLDER

STAY TERMINAL HOLDER

11

Болт

Болт

11

CAP, CORD

CAP, CORD

11

RUBBER MOUNT, 8.5 - 18 - 7

RUBBER MOUNT, 8.5 - 18 - 7
