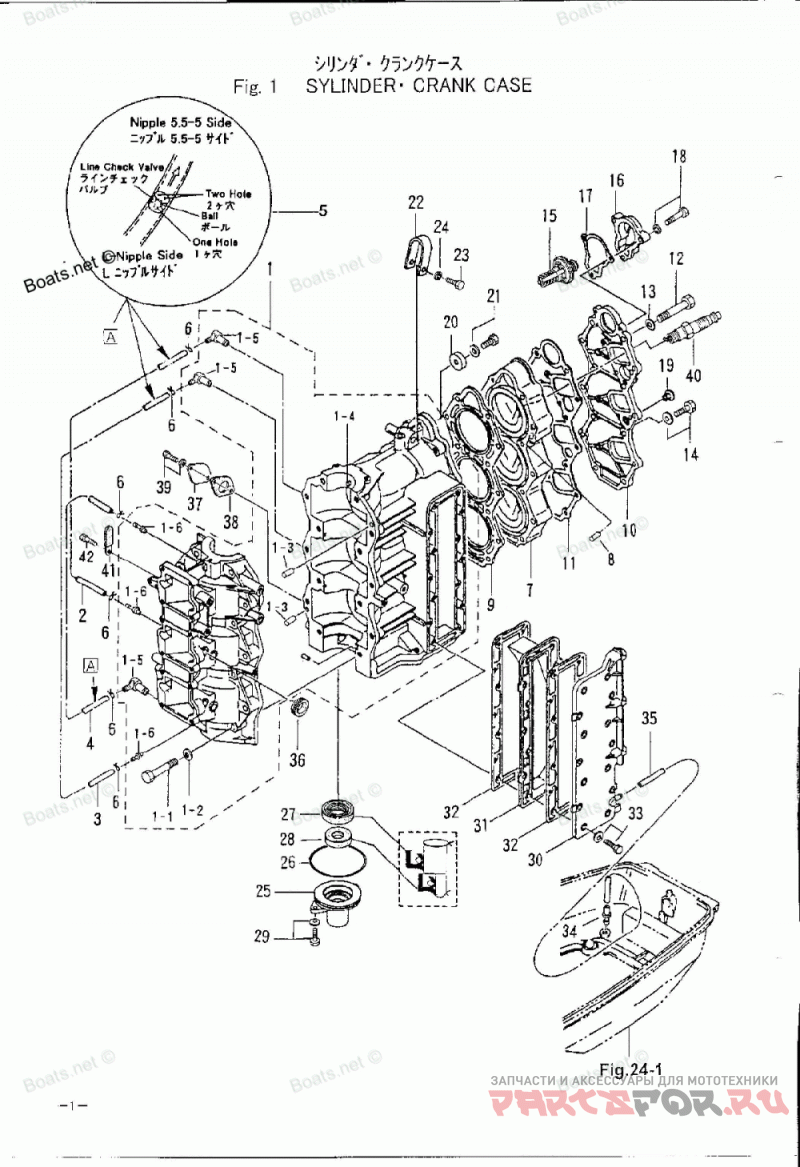

Cylinder,crank Case

Nissan NS50D2

Nissan
#oem кодцена
1
3C8B011002
CYLINDER, CRANK CASE
1
9161240845
Болт
2
98AL40205M
LUBRICATION PIPE
2
9401210800
Шайба
3
980730220M
LUBRICATION PIPE
3
345011110M
KNOCK, 6.12
4
98AL40330M
LUBRICATION PIPE
4
345001170M
KNOCK, MAIN BEARING
5
3B2011600M
CHECK VALVE NIPPLE (OLD)
5
393011600M
LINE CHECK VALVE
5
393011370M
L-NIPPLE (NEW)
6
393011310M
NIPPLE, 5.5-5
6
3T5011330M
CLIP, ∅8
7
3C8B010012
Головка цилиндра
9
3C8010054M
Прокладка
10
3C8B010210
Крышка головки цилиндра
11
3C8010241M
GASKET, CYLINDER HEAD COVER
12
9161890865
Болт
13
345010150M
WASHER, 8.5-19.5-3.2
14
9101215620
Болт
15
353010300M
Термостат
16
353B010310
CAP, THERMOSTAT
17
353010320M
GASKET, THERMOSTAT CAP
18
9101135625
Болт
19
3B7010460M
Заглушка
20
338602182M
Анод
22
9101135620
Болт
22
3C8B015130
HANGER
23
9101140835
Болт
25
3C8012910M
LOWER HEAD, CRANK CASE
26
346012160M
O-RING, 1.7-59
27
334001220M
OIL SEAL, 25-40-8
28
3C8012150M
OIL SEAL, 16-28-7
30
3C8B023010
EXHAUST COVER, OUTER
31
3C8023020M
EXHAUST COVER, INNER
32
3C8023050M
GASKET, EXHAUST COVER
33
9101145625
Болт
34
353011380M
WATER NIPPLE
35
98AB50260M
PIPE, WATER NIPPLE
36
3B7760930M
GROMMET, 25-5
37
3C8090811M
BLIND PLATE
38
3C8090820M
GASKET, BLIND PLATE
39
9101036616
Болт
40
970111009M
SPARK PLUG
40
970111016M
SPARK PLUG (WITH RESISTANCE)
41
309069720M
CLAMP, 6.5-47.5P
42
9101130610
Болт
