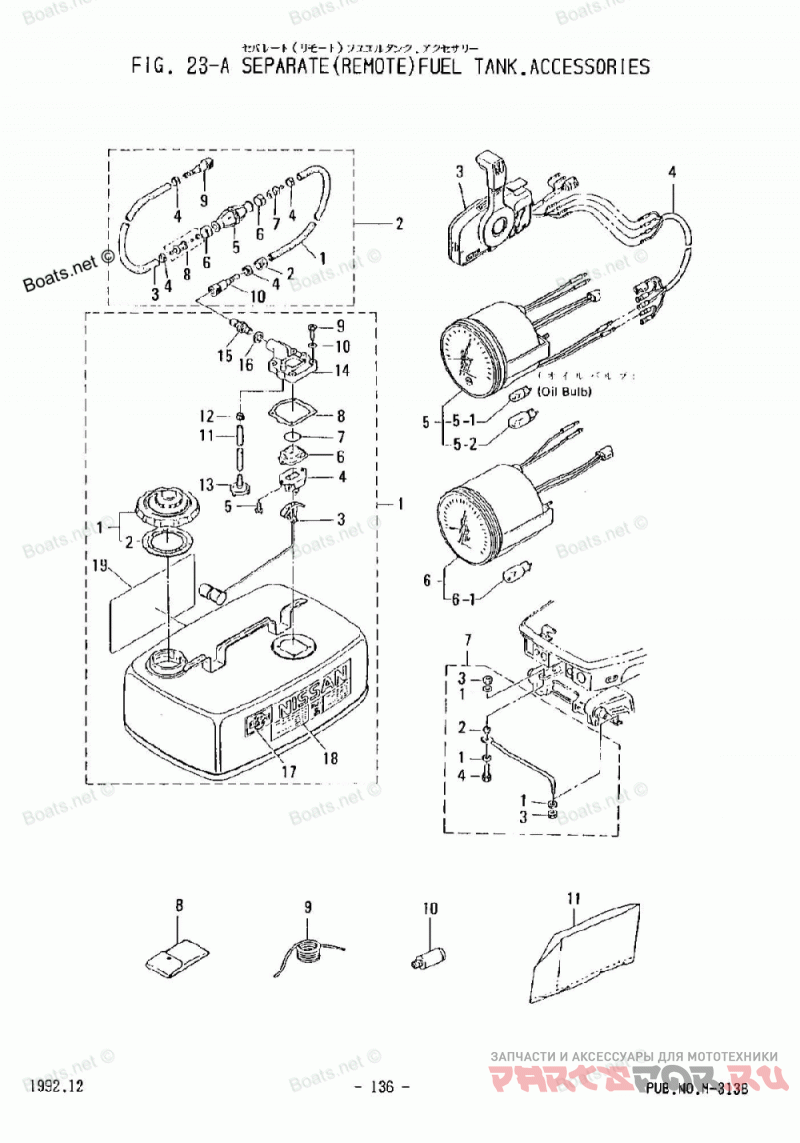

Топливный бак (выносной)

Nissan NS90A

Nissan
#oem кодцена
00
3B8723150M
VINYL MOTOR COVER (3L)
00
3B7722010M
SAFTY ROPE, 6-1600
00
3A3725370M
LEAD WIRE, METER
00
3B7600070M
FLUSHING PLUG
01
3B7726580M
BULB, OIL 12V-1.7W
1
3C7701770M
FUEL TANK ASSEMBLY (25L)
01
353849160M
WASHER, 9.6-18-2
01
98AB71000M
FUEL PIPE A
1-1
3C7700500M
FUEL GAUGE VENTED CAP ASSEMBLY
1-2
3C7700210M
CAP GASKET
1-3
3E0702700M
MALE QUICK CONNECTOR
1-4
3C7701550M
ELBOW TUBING AND CLAMP ASSEMBLY
1-5
3C7701990M
Уплотнительное кольцо
1-6
3C7701130M
Фильтр
2
3B7702003M
PRIMER BULB ASSEMBLY
02
3B7726590M
BULB, METER 12V-1.7W
02
334700210M
GASKET, TANK CAP
02
3B7849140M
SPACER, DRAG LINK
02
3B2702810M
MARK, FUEL CONNECTOR
2-1
98AB71600M
FUEL PIPE A
2-2
3B2702810M
FUEL CONNECTOR (TANK SIDE, FEMALE)
2-3
98AB70700M
FUEL PIPE B
2-4
332702010M
Зажим
2-5
3C7702110M
PRIMER BULB
2-6
3C7702170M
Зажим
2-7
3C7702201M
JOINT A ASSEMBLY IN
2-8
3C7702241M
JOINT A ASSEMBLY OUT
2-9
3B2702501M
FUEL CONNECTOR (ENGINE SIDE, FEMALE)
03
334701200M
FUEL GAUGE (WITH FLOAT)
03
353849180M
NYLON NUT, 3/8
03
98AB71300M
FUEL PIPE B
04
334701210M
BRACKET, FUEL GAUGE
04
3B7849170M
BOLT, 3/8-55
04
332702010M
Зажим
05
9215D0510M
Винт
05
332702110M
PRIMER BULB
06
334701221M
CAP, FUEL GAUGE
06
332702170M
Зажим
07
334701231M
O-RING, 2.0-79.5
07
345702120M
JOINT A, PRIMER BULB
08
334701250M
Прокладка
09
345702500M
FUEL CONNECTOR PIPE
09
3B2702501M
FUEL CONNENCTOR ENGINE
09
922230520M
Винт
10
334701280M
GASKET, 5.1-12-0.8
10
3B2702810M
FUEL CONNECTOR TANK FEMALE
11
98AB70168M
FUEL SUCTION PIPE
12
345701140M
Зажим
13
345701130M
STRAINER, FUEL TANK
15
3B2702701M
FUEL CONNECTOR (TANK MALE)
16
336701120M
GASKET, 10.2-16-0.5
17
386704450M
LABEL, BRAND MARK
18
360704430M
CAUTION LABEL, B2
19
360703410M
CAUTION LABEL, A
