Oil Pump (automixing) для лодочных моторов Nissan NS80A (2002 и предыдущие)

Москва и регионы России

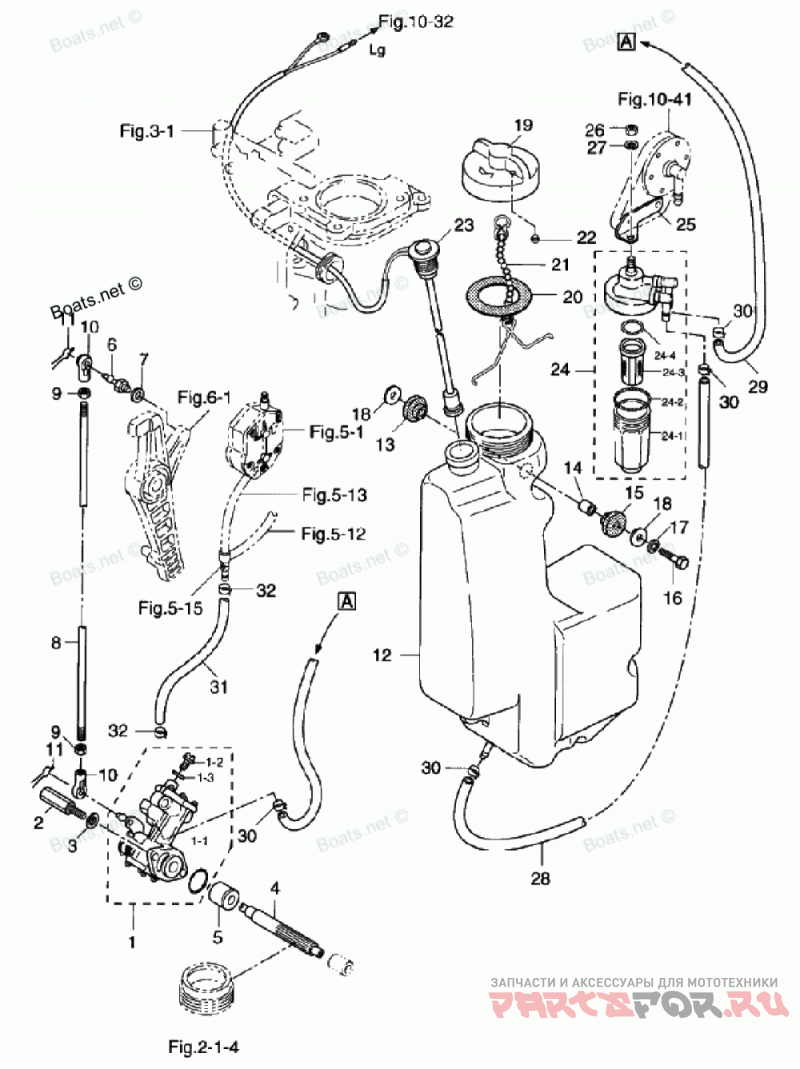

Oil Pump (automixing)

Nissan NS80A

Oil Pump (automixing)

#

oem код

название

цена

1

OIL PUMP ASSEMBLY

OIL PUMP ASSEMBLY

1-1

O-RING, 1.6 - 19.2

O-RING, 1.6 - 19.2

1-2

BOLT, AIR VENT

BOLT, AIR VENT

1-3

Шайба

Шайба

2

BOLT, OIL PUMP

BOLT, OIL PUMP

3

Пружинная шайба

Пружинная шайба

4

DRIVEN GEAR, OIL PUMP

DRIVEN GEAR, OIL PUMP

5

BUSHING, 9 - 20 - 20.8

BUSHING, 9 - 20 - 20.8

6

BALL JOINT C

BALL JOINT C

8

LINK ROD, OIL PUMP

LINK ROD, OIL PUMP

9

Гайка

Гайка

10

CAP C, BALL JOINT

CAP C, BALL JOINT

11

SNAP RETAINER, D=5

SNAP RETAINER, D=5

12

Масляный Бак

Масляный Бак

13

MOUNT RUBBER, 8.5 - 14 - 25

MOUNT RUBBER, 8.5 - 14 - 25

14

SPACER, 6.2 - 9 -15.7

SPACER, 6.2 - 9 -15.7

15

MOUNT RUBBER

MOUNT RUBBER

16

Болт

Болт

18

WASHER, 6.5 - 21 - 1

WASHER, 6.5 - 21 - 1

19

CAP, OIL TANK

CAP, OIL TANK

20

GASKET, 36 - 52 - 2

GASKET, 36 - 52 - 2

21

HOOK, TANK CAP

HOOK, TANK CAP

22

CHECK VALVE, OIL TANK

CHECK VALVE, OIL TANK

23

OIL LEVEL SENSOR

OIL LEVEL SENSOR

24

FILTER ASSEMBLY

FILTER ASSEMBLY

24-1

Крышка крыльчатки

Крышка крыльчатки

24-2

O-RING A

O-RING A

24-3

Фильтр

Фильтр

24-4

Уплотнительное кольцо

Уплотнительное кольцо

25

PLATE, OIL FILTER

PLATE, OIL FILTER

26

Гайка

Гайка

27

Пружинная шайба

Пружинная шайба

28

OIL PIPE A

OIL PIPE A

29

OIL PIPE B

OIL PIPE B

30

CLIP, ∅ 9.5

CLIP, ∅ 9.5

31

OIL PIPE C

OIL PIPE C

32

CLIP, ∅ 8.5

CLIP, ∅ 8.5
