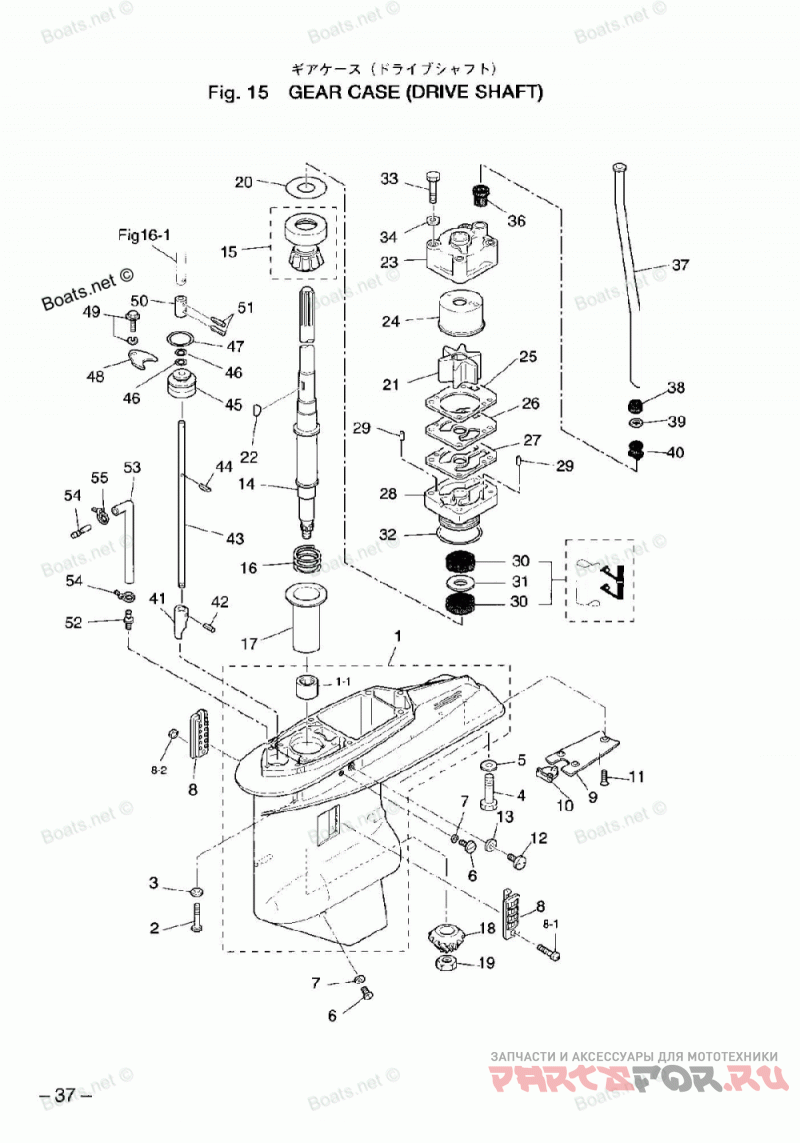

Корпус редуктора (вертикальный вал)

Nissan NS60C

Nissan
#oem кодцена
1-1
3B7601020M
NEEDLE BEARING, 25.4-33.3-31.8
3
9401030800
Шайба
4
3B7600012M
BOLT, 10-40
5
9401031000
Шайба
6
332600051M
OIL PLUG
7
332600060M
GASKET, 8.1-15-1
8
3C7602351M
WATER STRAINER SET
8-1
9215030400
Винт
8-2
9304030400
NYLON NUT, 4PO.7
9
3B7600120M
PLATE, GEAR CASE
10
3B7600130M
HOLE PLUG, GEAR CASE PLATE
11
9216030614
Винт
12
3B7600150M
WATER PLUG
13
3B7600160M
GASKET, 10.1-15-1
14
3J5643020M
DRIVE SHAFT L
14
3J5643030M
DRIVE SHAFT UL
15
3B7602130M
BEARING, 32305
16
353643270M
SPRING, DRIVE SHAFT
17
3B7643280M
GUIDE, DRIVE SHAFT
18
3J5640200M
BEVEL GEAR B
19
3B7640270M
NUT, BEVEL GEAR B
20
353640140M
SHIM, 52-60.5-0.3
20
353640160M
SHIM, 52-60.5-0.15
21
3B7650212M
Импеллер
22
3B7650220M
KEY, WATER PUMP IMPELLER
23
3B7650160M
UPPER PUMP CASE
24
3B7650110M
LINER, PUMP CASE
25
3B7650180M
Прокладка
26
3F3650251M
GUIDE PLATE, WATER PUMP
27
3B7650171M
LOWER PUMP CASE
28
334650120M
DOWEL PIN, 4-10
30
3C7602231M
OIL SEAL.22-42-7
31
346640840M
SHIM, 35-41.9-0.5
32
3B7650150M
O-RING, 3.1-54.4
33
9161030880
Болт
36
334650140M
LOWER SEAL RUBBER, WATER PIPE
37
3F3651100M
WATER PIPE L
37
3F3651200M
WATER PIPE UL
38
345652060M
UPPER SEAL RUBBER, WATER PIPE
39
345652050M
COLLAR, 18-20-4.5
40
346652040M
LOCKING RUBBER, WATER PIPE
41
3B7660111M
Кулачковый толкатель
42
9514033516
SPRING PIN, 3.5-16
43
3B7660131M
CAM ROD L
43
3B7660141M
CAM ROD UL
44
9514033510
SPRING PIN, 3.5-10
45
3B7660311M
BUSHING, CAM ROD
46
345660210M
O-RING. 1.9-6.8
47
3B7660230M
O-RING, 3.5-27.7
48
353660240M
Стопор
49
9101030612
Болт
50
353662411M
JOINT, SHIFT ROD
52
3C7600170M
NIPPLE, 6-1/8
53
980840800M
PIPE A, SPEEDOMETER (L)
53
980840920M
PIPE A, SPEEDOMETER (UL)
54
3C7600180M
NIPPLE, 6-6
55
353843980M
BAND, LEAD WIRE
