Поршни и коленчатый вал для лодочных моторов Nissan NS35C (2002 и предыдущие)

Москва и регионы России

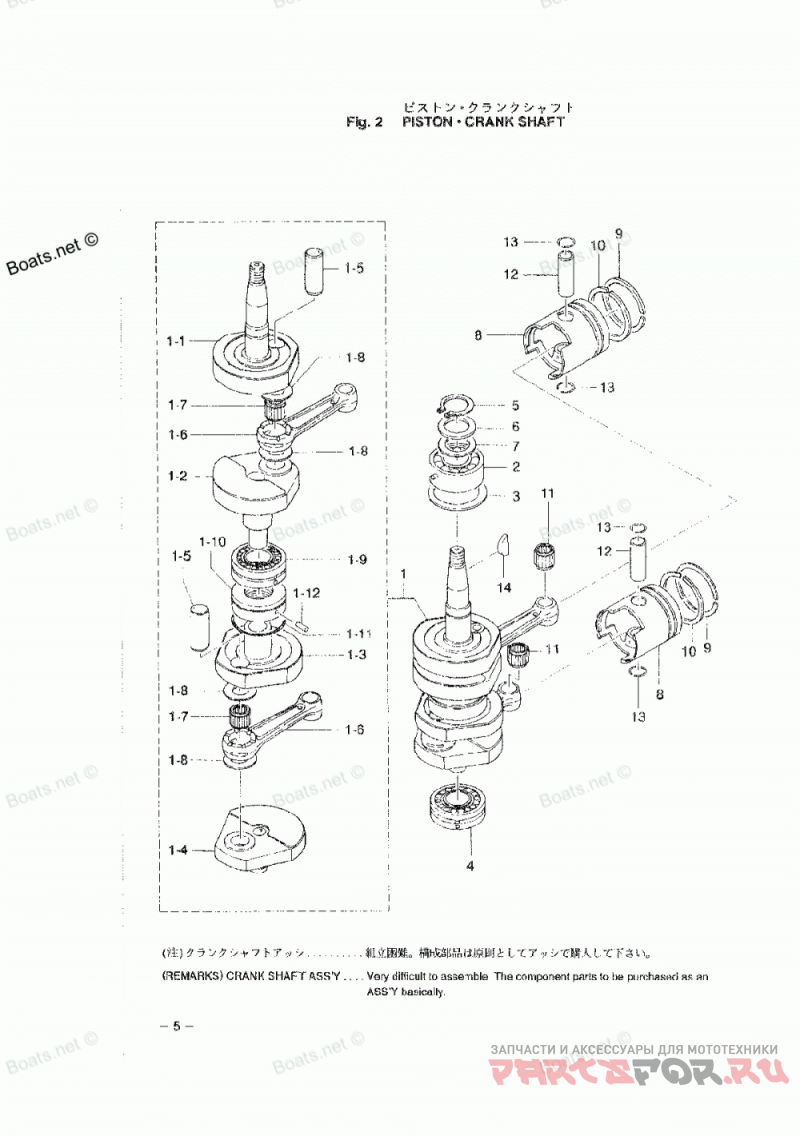

Поршни и коленчатый вал

Nissan NS35C

Поршни и коленчатый вал

#

oem код

название

цена

1

CRANKSHAFT ASSEMBLY

CRANKSHAFT ASSEMBLY

1-2

CRANKSHAFT B

CRANKSHAFT B

1-3

CRANKSHAFT C

CRANKSHAFT C

1-4

CRANKSHAFT D

CRANKSHAFT D

1-5

CRANK PIN

CRANK PIN

1-6

Шатун

Шатун

1-7

NEEDLE BEARING, 25-32-20

NEEDLE BEARING, 25-32-20

1-8

WASHER, BIG END BEARING

WASHER, BIG END BEARING

1-9

MAIN BEARING CENTER

MAIN BEARING CENTER

1-10

LABYRINTH PACKING

LABYRINTH PACKING

1-11

O-RING, 2-49.5

O-RING, 2-49.5

1-12

SPRING PIN, 3-6

SPRING PIN, 3-6

2

BEARING, 3206

BEARING, 3206

3

RETAINER, 56-66-1.6

RETAINER, 56-66-1.6

5

C-CLIP D=30

C-CLIP D=30

6

SPACER, 30.2 -40-2.3

SPACER, 30.2 -40-2.3

7

SHIM, 31-42

SHIM, 31-42

8

Поршень (STD)

Поршень (STD)

8

PISTON 0.5MM O/S

PISTON 0.5MM O/S

9

PISTON RING 1ST STD

PISTON RING 1ST STD

9

PISTON RING 1ST 0.5MM O/S

PISTON RING 1ST 0.5MM O/S

10

PISTON RING 2ND 0.5MM O/S

PISTON RING 2ND 0.5MM O/S

10

PISTON RING 2ND STD

PISTON RING 2ND STD

11

NEEDLE BEARING, 17-21-27

NEEDLE BEARING, 17-21-27

12

Палец поршневой

Палец поршневой

13

Зажим

Зажим

14

MAGNETO KEY

MAGNETO KEY
