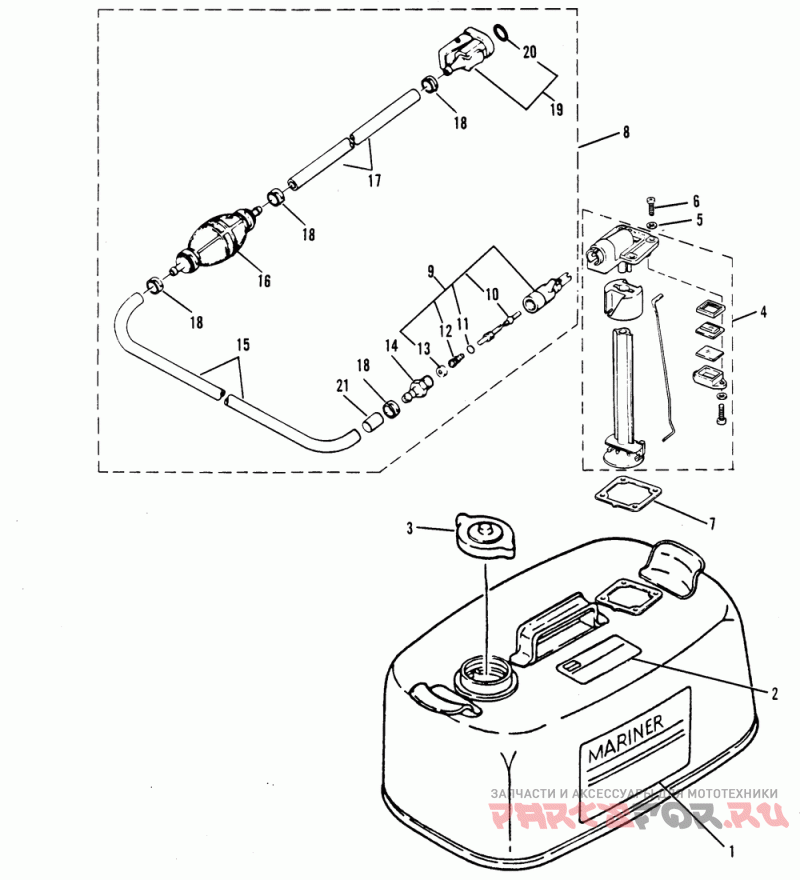

Fuel tank and fuel line assembly
Mariner 40C (TWIN CARB) (W/AUTO-BLEND) 6E9-007666 THRU 6E9-015000 (
| # | oem код | название | цена |
|---|---|---|---|
1 | 14617M Наклейка | Наклейка | |
3 | 18962M Cap Etl-502266 Above Serial 00008626-09999999 | Cap Etl-502266 Above Serial 00008626-09999999 | |
8 | 877681Q8 Ord 32-858104q08 | Ord 32-858104q08 | |
10 | 30187 Stem @3 | Stem @3 | |
11 | 16524 O Ring @2 | O Ring @2 | |
12 | 30189 Пружина | Пружина | |
13 | 30188 Washer-cup @3 | Washer-cup @3 | |
14 | 63187 Fitting @2 | Fitting @2 | |
16 | 89396Q01 Primer Bulb @4 Etl-502265 Below Serial 00000000-00008625 | Primer Bulb @4 Etl-502265 Below Serial 00000000-00008625 | |
19 | 13563Q3 Fitting-fuel@2 | Fitting-fuel@2 |
