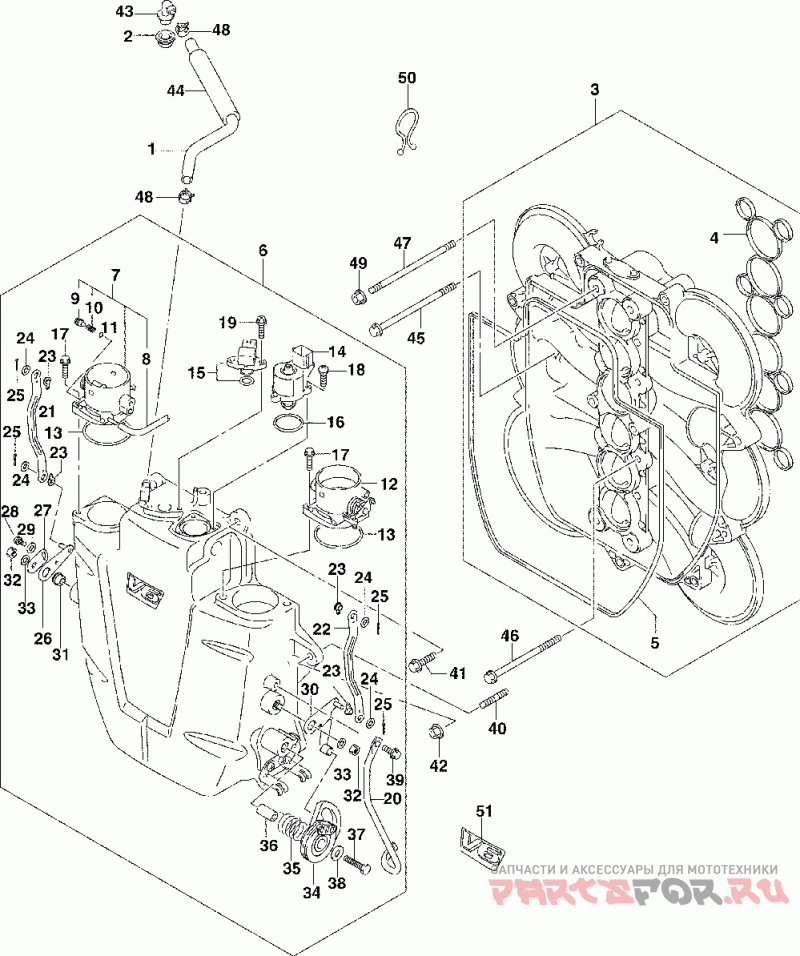

Корпус Дросселя -200HP

Johnson J200PX4SRS

Johnson
#oem кодцена
1
5034862
Hose, Pvc
2
5035370
Seal Pcv Valve
3
5034960
Collector Comp
4
5034961
Gasket, Collector
5
5034964
Gasket, Coll Cover
6
5034962
Cover Comp, Coll
7
5034965
Body Ay, Throt #1 (tps Not Available Separately. Tps Included With Ref #7 P/n 5034965. )
8
5034966
Hose, Bypass Air
9
5035677
Винт
10
5035678
Пружина
11
5035679
Кольцо
12
5034967
Body Ay, Throt #2
13
5034969
Gasket, Throt Body
14
5035412
Valve, Iac V6-4stk
15
5033780
Sensor, Press(map)
16
5034828
O-ring, Iac Valve
17
5030985
Болт
18
5035644
Screw, Iac Valve
19
5034134
Винт
20
5034963
Guard, Throt Drum
21
5035742
Arm, Link
23
5035689
Grommet, Link
24
5035682
Washer, Link
25
5035670
Шплинт
26
5035687
Lever #1
27
5035688
Lever #2
28
5035645
Винт
29
5035667
Washer(5.5x16x1.2)
30
5035681
Lever, Link
31
5035680
Проставка
32
5035693
Гайка
33
5035683
Шайба
34
5035684
Cam, Throttle
35
5035685
Spring, Cam
36
5035686
Проставка
37
5035634
Болт
38
5032624
Шайба
39
5030989
Болт
40
5033297
Шпилька
41
5030996
Болт
42
5031021
Гайка
43
5035056
Valve, Pvc
44
5032912
Protector, Hose
45
5035215
Bolt, 8x125
46
5035214
Bolt, 8x110
47
5034780
Bolt, (l120)
48
5035341
Зажим
49
5035661
Nut-collector
50
5033629
Clip, D23
51
5035731
Decal, V6 Emblem
1
5034862
Hose, Pvc
2
5035370
Seal Pcv Valve
3
5034960
Collector Comp
4
5034961
Gasket, Collector
5
5034964
Gasket, Coll Cover
6
5034962
Cover Comp, Coll
7
5034965
Body Ay, Throt #1 (tps Not Available Separately. Tps Included With Ref #7 P/n 5034965. )
8
5034966
Hose, Bypass Air
9
5035677
Винт
10
5035678
Пружина
11
5035679
Кольцо
12
5034967
Body Ay, Throt #2
13
5034969
Gasket, Throt Body
14
5035412
Valve, Iac V6-4stk
15
5033780
Sensor, Press(map)
16
5034828
O-ring, Iac Valve
17
5030985
Болт
18
5035644
Screw, Iac Valve
19
5034134
Винт
20
5034963
Guard, Throt Drum
21
5035742
Arm, Link
22
5035742
Arm, Link
23
5035689
Grommet, Link
24
5035682
Washer, Link
25
5035670
Шплинт
26
5035687
Lever #1
27
5035688
Lever #2
28
5035645
Винт
29
5035667
Washer(5.5x16x1.2)
30
5035681
Lever, Link
31
5035680
Проставка
32
5035693
Гайка
33
5035683
Шайба
34
5035684
Cam, Throttle
35
5035685
Spring, Cam
36
5035686
Проставка
37
5035634
Болт
38
5032624
Шайба
39
5030989
Болт
40
5033297
Шпилька
41
5030996
Болт
42
5031021
Гайка
43
5035056
Valve, Pvc
44
5032912
Protector, Hose
45
5035215
Bolt, 8x125
46
5035214
Bolt, 8x110
47
5034780
Bolt, (l120)
48
5035341
Зажим
49
5035661
Nut-collector
50
5033629
Clip, D23
51
5035731
Decal, V6 Emblem
