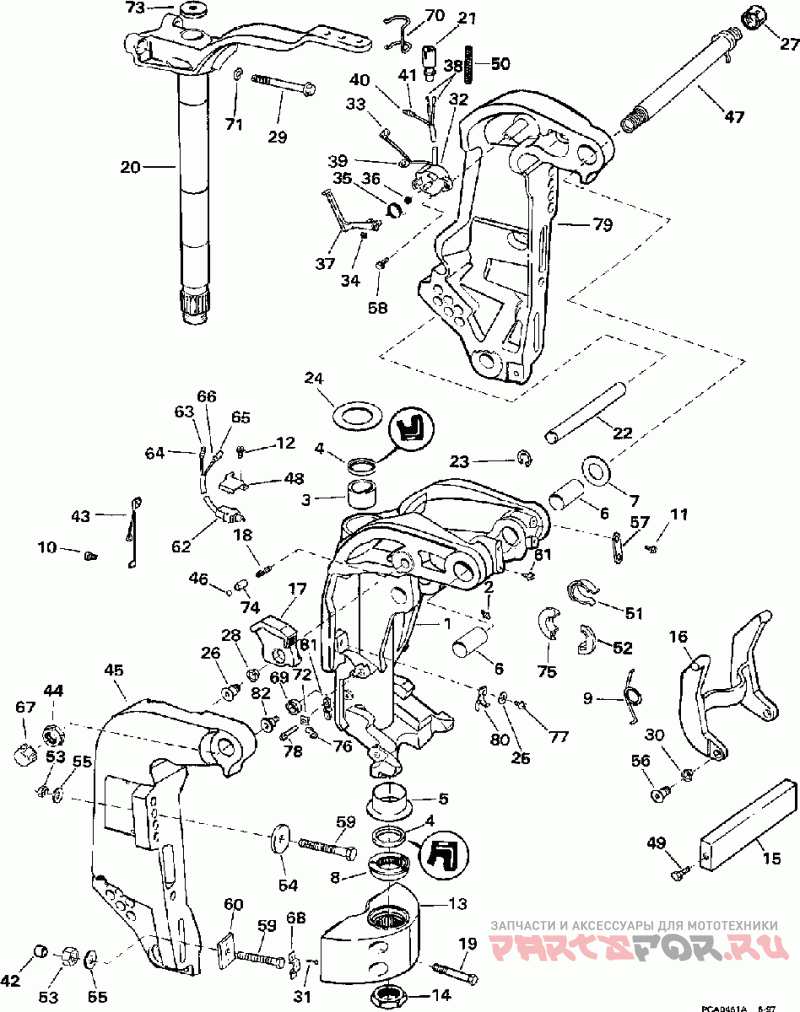

Струбцина

Johnson J90TSLECM

Johnson
#oem кодцена
1
0434691
Brckt Ay,swvl 20" ( Hl, Tsl Models Only)
1
0434724
Brkt,swivel 25" ( Hx, Tsx Models Only)
2
0313607
Фитинг
3
0320962
Bushing Swiv Bk
4
0335686
Сальник
5
0336819
Bushing, Pivot Sft
6
0337579
Bushing, Tilt Tube
7
0910992
Упорная шайба
8
0327696
Keeper
9
0336210
Spring, Trail Lock
10
0328724
Винт
13
0340006
Bracket, Mount-20"
14
0320746
Lock Nut
15
5007089
Анод
16
0335470
Arm, Trail Lock
17
0335485
Lever, Tilt Lock
18
0336230
Spring, Detent
19
0334936
Винт
20
0434164
Strg Arm&shft 20" ( Hl, Tsl Models Only)
20
0437698
Strg Arm&shaft 25" ( Hx, Tsx Models Only)
21
0512746
Conn, 2 Pin Rcpt
22
0336525
Rod, Trim Limiter
23
0336529
Кольцо стопорное
24
0320866
Упорная шайба
25
0328702
Шайба
26
0335481
Винт
27
0337586
Nut, Wiper
28
0335486
Bushing, Tilt Lever
29
0335612
Винт
30
0335701
Bushing, Trail Arm
31
0319886
Screw Ret To Plate
32
0586039
Sender Ay, T&t
33
0513871
Terminal, Ring
34
0511527
Седло
35
0511528
Spring-tilt Trim
36
0320689
Гайка
37
0342386
Arm, T&t Sender Ay
38
0511469
Pin(10)44-100-1414
39
3854047
Lead Ay, Bonding
40
0512947
Штыревой терминал 521616-adz
41
0513185
Втулка
42
0318572
Cap-tran Scr 4pk
43
0584262
Lead Ay, Bonding
44
0335554
Гайка
45
0351922
Bracket, Stern-stbd
46
0336209
Ball, Detent-tlt Lk
47
0435007
Sst Tube Ay, Tilt
48
0336171
Bracket, Mounting
49
0324816
Screw-exh Hsg
50
0512259
Sleeve, Braided
51
0337591
Cam, Tilt Limit Sw
52
0337593
Collar, Tilt Limit
53
0313623
Гайка
54
0307238
Washer 5 Pk
55
0320248
Washer 5 Pk
56
0335487
Винт
57
0513787
Седло
58
0328744
Винт
59
0327053
3" Bolt
59
0336676
4 3/4" Trnsm Bolt
59
0331578
5" Eng Mtg Bolt
59
0354101
Transom Bolt 6"
60
0318272
Sq Plate 4pk
62
0585141
Switch Ay, Limit
65
0512876
Терминал
66
0513186
Sleeve, Socket Blue
67
0317894
Крышка
68
0318273
Седло
69
0335949
Roller, Thrust
70
0512741
Седло
71
0313169
Шайба
72
0336853
Зажим
73
0322302
Seal-shift Rod
74
0334241
Направляющая
75
0337592
Collar, Tilt Limit
76
0335814
Retainer, Trail Lk
77
0342191
Винт
79
0351921
Bracket, Stern-port
80
0336172
Retainer, Trail Arm
81
0336467
Retainer Support
1
0434691
Brckt Ay,swvl 20" ( Hl, Tsl Models Only)
1
0434724
Brkt,swivel 25" ( Hx, Tsx Models Only)
2
0313607
Фитинг
3
0320962
Bushing Swiv Bk
4
0335686
Сальник
5
0336819
Bushing, Pivot Sft
6
0337579
Bushing, Tilt Tube
7
0910992
Упорная шайба
8
0327696
Keeper
9
0336210
Spring, Trail Lock
10
0328724
Винт
11
0328724
Винт
12
0328724
Винт
13
0340006
Bracket, Mount-20"
14
0320746
Lock Nut
15
5007089
Анод
16
0335470
Arm, Trail Lock
17
0335485
Lever, Tilt Lock
18
0336230
Spring, Detent
19
0334936
Винт
20
0434164
Strg Arm&shft 20" ( Hl, Tsl Models Only)
20
0437698
Strg Arm&shaft 25" ( Hx, Tsx Models Only)
21
0512746
Conn, 2 Pin Rcpt
22
0336525
Rod, Trim Limiter
23
0336529
Кольцо стопорное
24
0320866
Упорная шайба
25
0328702
Шайба
26
0335481
Винт
27
0337586
Nut, Wiper
28
0335486
Bushing, Tilt Lever
30
0335701
Bushing, Trail Arm
31
0319886
Screw Ret To Plate
32
0586039
Sender Ay, T&t
33
0513871
Terminal, Ring
34
0511527
Седло
35
0511528
Spring-tilt Trim
36
0320689
Гайка
37
0342386
Arm, T&t Sender Ay
38
0511469
Pin(10)44-100-1414 (010 Per Pack)
39
3854047
Lead Ay, Bonding
40
0512947
Term. 521616-adz (010 Per Pack)
41
0513185
Втулка
42
0318572
Cap-tran Scr (004 Per Pack)
43
0584262
Lead Ay, Bonding
44
0335554
Гайка
45
0351922
Bracket, Stern-stbd
46
0336209
Ball, Detent-tlt Lk
47
0435007
Sst Tube Ay, Tilt
48
0336171
Bracket, Mounting
49
0324816
Screw-exh Hsg
50
0512259
Sleeve, Braided
51
0337591
Cam, Tilt Limit Sw
52
0337593
Collar, Tilt Limit
53
0313623
Nut (004 Per Pack)
54
0307238
Washer 5 Pk (005 Per Pack)
55
0320248
Washer 5 Pk (005 Per Pack)
56
0335487
Винт
57
0513787
Седло
58
0328744
Винт
59
0327053
3" Trnsm Bolt
59
0336676
4 3/4" Trnsm Bolt
59
0336676
4 3/4" Trnsm Bolt
59
0331578
5" Trnsm Bolt
59
0354101
6" Trnsm Bolt
60
0318272
Sq Plate 4pk (004 Per Pack)
61
0328724
Винт
62
0585141
Switch Ay, Limit
63
0512947
Term. 521616-adz (010 Per Pack)
64
0513185
Втулка
65
0512876
Terminal (005 Per Pack)
66
0513186
Sleeve, Socket Blue
67
0317894
Крышка
68
0318273
Седло
69
0335949
Roller, Thrust
70
0512741
Седло
71
0322624
Шайба
72
0336853
Зажим
74
0334241
Направляющая
75
0337592
Collar, Tilt Limit
76
0335814
Retainer, Trail Lk
77
0342191
Screw, .25x20-.500
78
0328724
Винт
79
0351921
Bracket, Stern-port
80
0336172
Retainer, Trail Arm
81
0336467
Retainer Support
82
0335487
Винт
