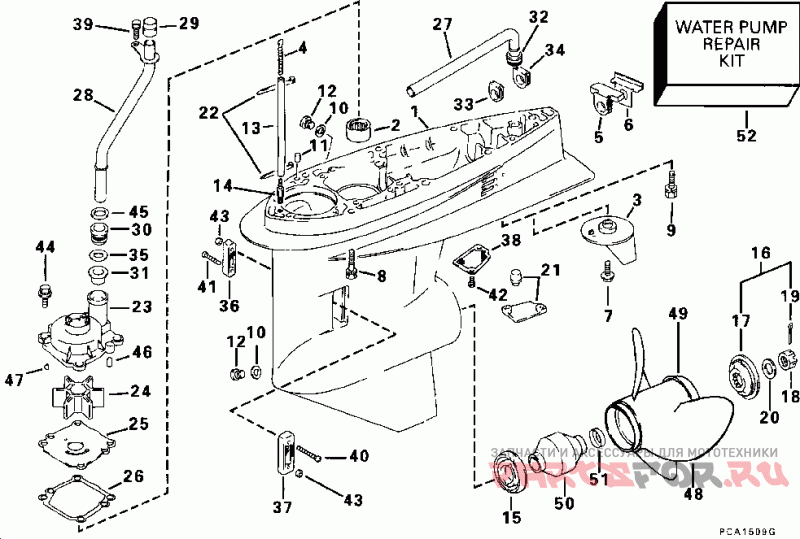

Редуктор

Johnson J70FLTLECS

Johnson
#oem кодцена
1
5030903
G-case&bearing Wht
1
5030904
G-case&bearing Blu
2
5030530
Bearing, 26x34x30
3
5030905
Tab, Trim
4
5030906
Соединение
5
5030908
Резиновый уплотнитель
6
5030909
Plate, Exh Seal
7
5034400
Болт (8x22mm)
8
5034788
Bolt, (l55)
9
5030401
Bolt, 10x80
10
5030071
Fill Plug Washer ( Part Of Gearcase Seal Kit)
11
5030511
Штифт
12
5030094
Plug, Drain, 10x7.5
14
5030568
Ниппель
15
5030924
Stopper, Prop Bush
16
5030976
Propeller Nut Kit
17
5030925
Spacer, Prop Nut
18
5030422
Гайка винта гребного
19
5030087
Шплинт
20
5030441
Шайба
21
5032685
Plug, Water Tube ( For Engines That Are Mounted High On Transom# Cut To Length From P/n 5030564)
22
5030589
Clamp(l:125)
23
5030722
Корпус водной помпы
24
5030723
Implr, Water Pump ( Part Of Water Pump Repair Kit)
25
5030724
Panel, Pump ( Part Of Water Pump Repair Kit)
26
5030725
Gasket ( Part Of Water Pump Repair Kit)
27
5031138
Tube, Gearcase
28
5030726
Tube, Water L
29
5030727
Втулка
30
5030728
Bush Lower
31
5030729
Bush, Pump Case
32
5031100
Bushing, Gearcase
33
5031101
Grommet, Gearcase
34
5031102
Grommet, Gearcase
35
5030735
Spacer, Tube
36
5030737
Screen, Water Intak
37
5030738
Screen, Wtr-stbd
38
5030739
Фильтр
39
5030038
Bolt, M6x16
40
5030404
Винт
41
5030405
Screw, 4x30
42
5030406
Screw, 5x12
43
5030415
Гайка
44
5030398
Bolt, 8x25
45
5030461
Шайба
46
5030508
Штифт
47
5030591
Key, Wtr Pmp Impel ( Part Of Water Pump Repair Kit)
49
0332393
Converging Ring
50
0384977
Prop Hub 50-135 Hp
51
0313926
Гильца
52
5031731
Wtr Pmp & Shft Con
1
5030903
G-case&bearing Wht
1
5030904
G-case&bearing Blu
2
5030530
Bearing, 26x34x30
3
5030905
Tab, Trim
4
5030906
Соединение
6
5030909
Plate, Exh Seal
7
5034400
Болт (8x22mm)
8
5034788
Bolt, (l55)
9
5030401
Bolt, 10x80
10
5030071
Gasket (washer) ( Part Of Gearcase Seal Kit) (010 Per Pack)
11
5030511
Штифт
12
5030094
Plug, Drain, 10x7.5
14
5030568
Ниппель
15
5030924
Stopper, Prop Bush
16
5030976
Kit, Prop Nut 60-70
17
5030925
Spacer, Prop Nut
18
5030422
Гайка винта гребного
19
5030087
Cotter Pin (010 Per Pack)
20
5030441
Шайба
21
5032685
Plug, Water Tube ( For Engines That Are Mounted High On Transom# Cut To Length From P/n 5030564)
22
5030589
Clamp(l:125)
23
5030722
Корпус водной помпы
24
5030723
Implr, Water Pump ( Part Of Water Pump Repair Kit)
25
5037170
Panel ( Part Of Water Pump Repair Kit)
26
5030725
Gasket ( Part Of Water Pump Repair Kit)
27
5031138
Tube, Gearcase
29
5030727
Втулка
30
5030728
Bush Lower
31
5030729
Bush, Pump Case
32
5031100
Bushing, Gearcase
33
5031101
Grommet, Gearcase
34
5031102
Grommet, Gearcase
35
5030735
Spacer, Tube
36
5030737
Screen, Water Intak
37
5030738
Screen, Wtr-stbd
38
5030739
Фильтр
39
5030038
Bolt, M6x16
40
5030404
Винт
41
5030405
Screw, 4x30
42
5030406
Screw, 5x12
43
5030415
Гайка
44
5030398
Bolt, 8x25
45
5030461
Шайба
46
5030508
Штифт
47
5030591
Key, Wtr Pmp Impel ( Part Of Water Pump Repair Kit)
49
0332393
Converging Ring, V4
51
0313926
Гильца
52
5031731
Wtr Pmp & Shft Con
