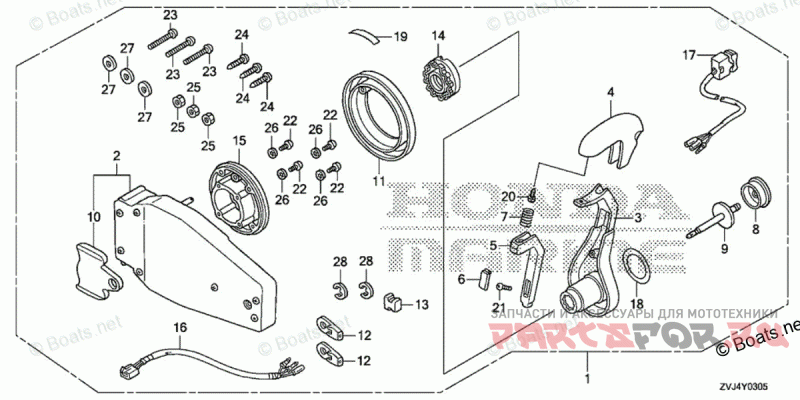

REMOTE CONTROL (FLUSH MOUNT TYPE) (L.) (MECH)
Honda Marine BF200D XRA
| # | oem код | название | цена |
|---|---|---|---|
001 | 06240-ZW7-U10 Деталь BOX KIT, REMOTE CONTROL (FLUSH MOUNT)(L) | Деталь BOX KIT, REMOTE CONTROL (FLUSH MOUNT)(L) | |
002 | 24810-ZW7-U11 Деталь HOUSING ASSY., L. (INNER) (FLUSH MOUNT) | Деталь HOUSING ASSY., L. (INNER) (FLUSH MOUNT) | |
003 | 24811-ZW7-U01 Деталь HANDLE, REMOTE CONTROL | Деталь HANDLE, REMOTE CONTROL | |
004 | 24812-ZW7-U01 Деталь COVER, GRIP | Деталь COVER, GRIP | |
005 | 24813-ZW7-U01 Деталь ARM, NEUTRAL LOCK | Деталь ARM, NEUTRAL LOCK | |
006 | 24814-ZW7-U01 Деталь COVER, LOCK ARM | Деталь COVER, LOCK ARM | |
007 | 24815-ZW7-U01 Деталь SPRING, NEUTRAL LOCK ARM | Деталь SPRING, NEUTRAL LOCK ARM | |
008 | 24816-ZW5-U01 Деталь BUTTON, THROTTLE | Деталь BUTTON, THROTTLE | |
009 | 24817-ZW7-U01 Деталь SHAFT, THROTTLE BUTTON | Деталь SHAFT, THROTTLE BUTTON | |
010 | 24826-ZW5-U01 Деталь PLATE, DWELL | Деталь PLATE, DWELL | |
011 | 24830-ZW7-U01 Деталь COVER ASSY. | Деталь COVER ASSY. | |
012 | 24831-ZW5-U01 Деталь TERMINAL, CABLE | Деталь TERMINAL, CABLE | |
013 | 24832-ZW5-U01 Деталь SPACER, CABLE CLAMP | Деталь SPACER, CABLE CLAMP | |
014 | 24832-ZW7-U01 Деталь HOLDER, NEUTRAL LOCK | Деталь HOLDER, NEUTRAL LOCK | |
015 | 24833-ZW7-U01 Деталь BASE | Деталь BASE | |
016 | 32530-ZW7-U20 Деталь SUB-HARNESS ASSY., POWER TRIM-TILT (C) | Деталь SUB-HARNESS ASSY., POWER TRIM-TILT (C) | |
017 | 35370-ZW7-U02 Деталь SWITCH ASSY., POWER TRIM-TILT (C) | Деталь SWITCH ASSY., POWER TRIM-TILT (C) | |
018 | 87701-ZW7-U01 Деталь MARK, HANDLE FLUSH MOUNT | Деталь MARK, HANDLE FLUSH MOUNT | |
019 | 87703-ZW7-U00 Деталь MARK, FLUSH MOUNT | Деталь MARK, FLUSH MOUNT | |
020 | 90101-ZW5-U00 Деталь SCREW, PAN (5X16) | Деталь SCREW, PAN (5X16) | |
021 | 90101-ZW7-U01 Деталь SCREW, TRUSS (4X12) | Деталь SCREW, TRUSS (4X12) | |
022 | 90102-ZW7-U01 Деталь SCREW, PAN (5X30) | Деталь SCREW, PAN (5X30) | |
023 | 90103-ZW7-U01 Деталь SCREW, PAN (6X35) | Деталь SCREW, PAN (6X35) | |
024 | 90104-ZW7-U01 Деталь SCREW, TAPPING (6X30) | Деталь SCREW, TAPPING (6X30) | |
025 | 90301-ZW7-U01 Деталь NUT, HEX. (6MM) | Деталь NUT, HEX. (6MM) | |
026 | 90501-ZW5-U00 Деталь WASHER, LOCK (5MM) | Деталь WASHER, LOCK (5MM) | |
027 | 90502-ZW7-U00 Деталь WASHER, PLAIN (6MM) | Деталь WASHER, PLAIN (6MM) | |
028 | 94540-06029 Деталь E-RING (6MM) | Деталь E-RING (6MM) |
