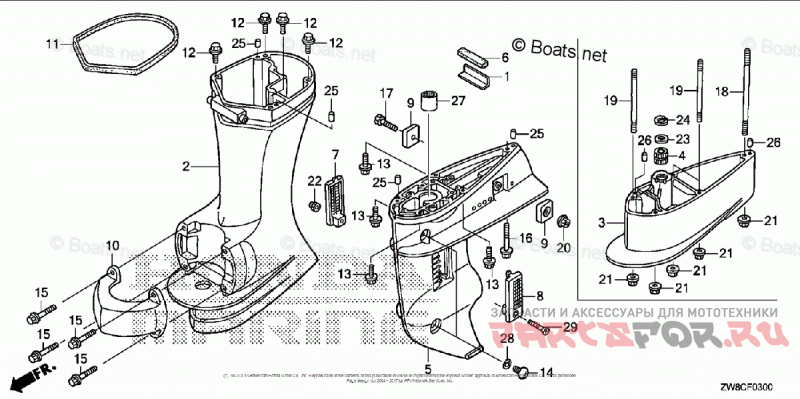

Gear Case + Extension Case

Honda Marine BFP8DK3 XHSA

Honda Marine
#oem кодцена
1
19286-ZY1-000
PLATE, RUBBER SETTING
2
40201-ZW9-631ZB
CASE, EXTENSION *NHB14M* (L) (AQUA MARINE SILVER METALLIC) | Use up to Frame SN 1800064.
2
40201-ZW9-C10ZB
CASE, EXTENSION *NHB14M* (L) (AQUA MARINE SILVER METALLIC) | Use from Frame SN 1800065.
3
40202-ZW9-A30ZB
SEPARATOR, EXTENSION *NHB14M* (UL) (AQUA MARINE SILVER METALLIC)
4
40210-ZW9-A30
BUSH, VERTICAL SHAFT
5
41101-ZW9-C00ZB
CASE, GEAR *NHB14M* (AQUA MARINE SILVER METALLIC)
6
41102-ZY1-000
GROMMET, GEAR CASE
7
41104-ZV5-010
SCREEN, R WATER
8
41105-ZV5-010
SCREEN, L. WATER
9
41106-ZW9-000
METAL, ANODE
10
50111-ZW9-000ZB
HOUSING, MOUNTING (LOWER) *NHB14M* (AQUA MARINE SILVER METALLIC)
11
63702-ZW9-000
RUBBER, COVER (LOWER)
12
90008-ZW9-000
BOLT, FLANGE (8X35)
14
90101-ZW9-003
BOLT, OIL CHECK
15
90105-ZW9-000
BOLT, FLANGE (6X20)
17
90113-ZV5-000
BOLT, HEX. (6X25)
18
90124-ZW9-A30
BOLT, STUD (6X211)
19
90125-ZW9-A30
BOLT, STUD (6X162)
20
90205-ZY1-000
NUT, SELF-LOCK (6MM)
21
90205-ZY1-000
NUT, SELF-LOCK (6MM)
22
90302-ZV4-000
NUT, SELF-LOCK (5MM)
23
90501-ZV5-A10
WASHER (20MM)
24
90651-ZV5-A10
CIRCLIP (INNER) (30MM)
25
90756-ZV5-000
PIN, DOWEL (6X10)
26
90756-ZV5-000
PIN, DOWEL (6X10)
27
91052-ZY1-003
BEARING, NEEDLE (15X22X20)
28
91301-ZW4-003
O-RING (6.9X1.45)
29
93700-05028-4J
SCREW, OVAL (5X28)
