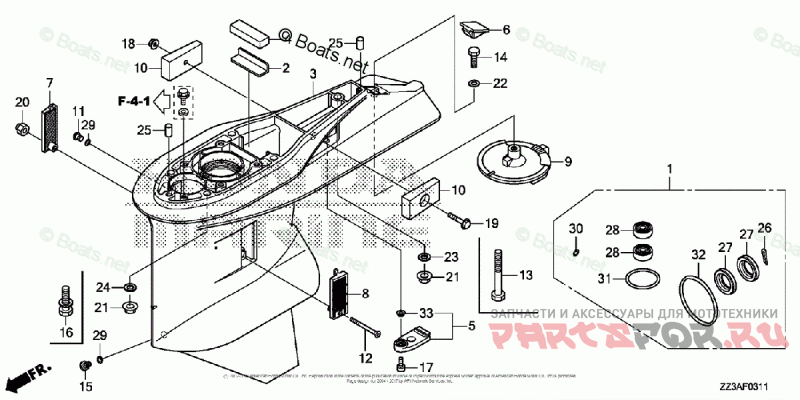

Gear Case 2

Honda Marine BFP60AK1 XRTA

Honda Marine
#oem кодцена
1
06125-ZZ3-E00
CASE KIT, GEAR (P/T) | (Optional).
2
19286-ZW1-B00
PLATE, RUBBER SETTING
3
41101-ZY9-H00ZA
CASE, GEAR *NHB14M* (AQUA MARINE SILVER METALLIC) | Use from Frame SN 8101790.
3
41101-ZZ0-000ZC
CASE, GEAR *NHB14M* (AQUA MARINE SILVER METALLIC) | Use up to Frame SN 8101789.
4
41102-ZW1-B00
GROMMET, GEAR CASE
5
41102-ZZ0-000
COVER B, GEAR CASE
6
41103-ZZ0-000
GROMMET, GEAR CASE
7
41104-ZZ0-010
SCREEN, R. WATER
8
41105-ZZ0-010
SCREEN, L. WATER
9
41107-ZZ0-000ZC
TAB, TRIM *NHB14M* (AQUA MARINE SILVER METALLIC)
10
41109-ZW1-B00
METAL, ANODE
11
90101-ZW9-003
BOLT, OIL CHECK
12
90101-ZZ0-000
SCREW, FLAT (5X55)
14
90115-ZV5-000
BOLT, HEX. (8X25)
15
90120-ZY3-000
BOLT, DRAIN PLUG
17
90133-ZY3-000
BOLT, SOCKET (6X16)
18
90205-ZY1-000
NUT, SELF-LOCK (6MM)
19
90225-HW1-670
BOLT, FLANGE (6X35)
20
90302-ZV4-000
NUT, SELF-LOCK (5MM)
21
90306-ZV5-003
NUT, SELF-LOCK (10MM)
22
90507-ZV4-000
WASHER, PLAIN (8MM)
23
90563-ZV5-000
WASHER, PLAIN (10MM)
24
90563-ZV5-000
WASHER, PLAIN (10MM)
25
90756-ZV5-000
PIN, DOWEL (6X10)
26
90758-ZW1-B00
PIN, SPLIT (4.0) | (Optional).
27
91252-ZZ3-003
SEAL, WATER (30X45X7) | (Optional).
28
91254-ZY3-003
SEAL, WATER (12X21X6) | (Optional).
29
91301-ZW4-003
O-RING (6.9X1.45)
30
91301-ZW4-003
O-RING (6.9X1.45) | (Optional).
31
91308-MJ0-003
O-RING | (Optional).
32
91351-ZW1-B02
O-RING (94X4.1) | (Optional).
33
91556-ZY3-000
COLLAR, DISTANCE (6.5X9X3)
