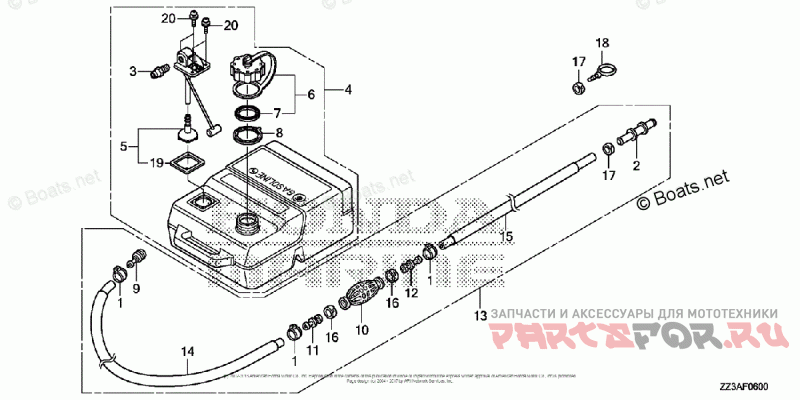

FUEL TANK

Honda Marine BFP60AK1 LRTB

Honda Marine
#oem кодцена
1
16897-ZW9-003
Деталь CLAMP, FUEL TUBE (14.0)
2
16966-MR5-000
Деталь JOINT, FUEL TUBE
3
16977-ZV5-A00
Деталь FITTING, QUICK DISCONNECT | (Optional).
4
17500-ZZ5-711
Деталь SEE PART DETAILS - PRI; TANK ASSY., FUEL | (Optional).
5
17580-ZZ5-003
Деталь FILTER KIT, FUEL | (Optional).
6
17620-ZZ5-003
Деталь CAP, FUEL FILLER | (Optional).
7
17624-ZZ5-003
Деталь GASKET, FUEL CAP | (Optional).
8
17625-ZZ5-003
Деталь RETAINER, PRESSURE RELIEF | (Optional).
9
17660-ZW9-003
Деталь CONNECTOR, FUEL
10
17661-ZW9-900
Деталь BULB, PRIMER
11
17665-ZV5-000
Деталь VALVE, IN.
12
17680-ZV4-000
Деталь VALVE, OUTLET
13
17700-ZY9-E04
Деталь SEE PART DETAILS - PRI; TUBE ASSY., FUEL TANK (CONNECTOR TYPE)
14
17701-ZY9-E04
Деталь SEE PART DETAILS - PRI; TUBE, FUEL LONG (7.3X2000)
15
17702-ZY9-E03
Деталь TUBE, FUEL SHORT | Use up to Frame SN 8100170.
15
17702-ZY9-E04
Деталь TUBE, FUEL SHORT | Use from Frame SN 8100171.
16
17703-921-010
Деталь SEE PART DETAILS - PRI; BAND, TUBE CLIP (20MM)
17
17704-ZV4-010
Деталь SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM)
18
17738-ZY3-000
Деталь PLUG, FUEL TUBE
19
17742-ZZ5-003
Деталь GASKET, FUEL PICK-UP | (Optional).
20
17743-ZZ5-003
Деталь BOLT-WASHER (5MM) (SEAL) | (Optional).
