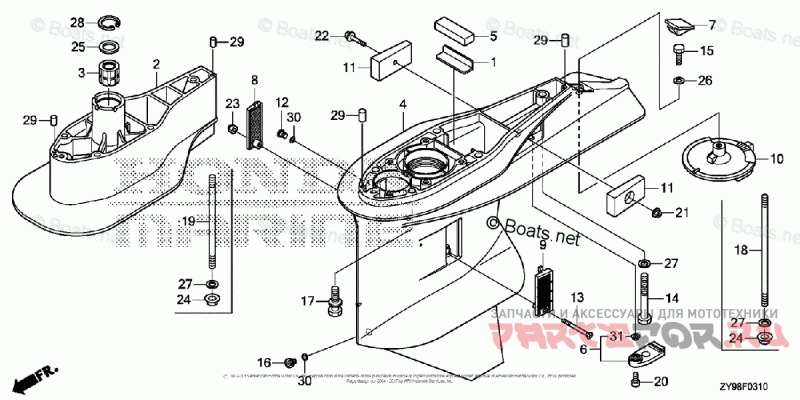

GEAR CASE

Honda Marine BF90DK5 XRTA

Honda Marine
#oem кодцена
1
19286-ZW1-B00
PLATE, RUBBER SETTING
2
40202-ZY9-H50ZA
SEPARATOR, EXTENSION *NHB14M* (XL) (AQUA MARINE SILVER METALLIC)
3
40210-ZW1-710
BUSH, VERTICAL SHAFT
4
41101-ZY9-H00ZA
CASE, GEAR *NHB14M* (AQUA MARINE SILVER METALLIC)
5
41102-ZW1-B00
GROMMET, GEAR CASE
6
41102-ZZ0-000
COVER B, GEAR CASE
7
41103-ZZ0-000
GROMMET, GEAR CASE
8
41104-ZZ0-010
SCREEN, R. WATER
9
41105-ZZ0-010
SCREEN, L. WATER
10
41107-ZZ0-000ZC
TAB, TRIM *NHB14M* (AQUA MARINE SILVER METALLIC)
11
41109-ZW1-B00
METAL, ANODE
12
90101-ZW9-003
BOLT, OIL CHECK
13
90101-ZZ0-000
SCREW, FLAT (5X55)
15
90115-ZV5-000
BOLT, HEX. (8X25)
16
90120-ZY3-000
BOLT, DRAIN PLUG
18
90124-ZW1-910
BOLT, STUD (10X202)
19
90125-ZW1-910
BOLT, STUD (10X164)
20
90133-ZY3-000
BOLT, SOCKET (6X16)
21
90205-ZY1-000
NUT, SELF-LOCK (6MM)
22
90225-HW1-670
BOLT, FLANGE (6X35)
23
90302-ZV4-000
NUT, SELF-LOCK (5MM)
24
90306-ZV5-003
NUT, SELF-LOCK (10MM)
25
90501-ZW1-710
WASHER (26MM)
26
90507-ZV4-000
WASHER, PLAIN (8MM)
27
90563-ZV5-000
WASHER, PLAIN (10MM)
28
90651-ZW1-710
CIRCLIP (INNER) (40)
29
90756-ZV5-000
PIN, DOWEL (6X10)
30
91301-ZW4-003
O-RING (6.9X1.45)
31
91556-ZY3-000
COLLAR, DISTANCE (6.5X9X3)
