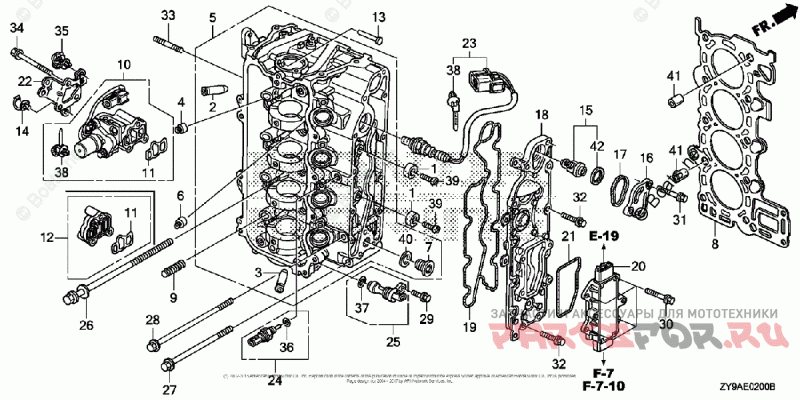

CYLINDER HEAD

Honda Marine BF90DK2 XRTA

Honda Marine
#oem кодцена
1
12155-ZV5-000
METAL, ANODE
2
12204-PJ7-305
GUIDE, VALVE (OVER SIZE)
3
12205-PJ7-305
GUIDE, EX. VALVE (OVER SIZE)
4
12210-PZ1-004
SEAL A, VALVE STEM (NOK)
5
12210-ZY9-000ZA
CYLINDER HEAD *NH8* (DARK GRAY)
6
12211-PZ1-004
SEAL B, VALVE STEM (NOK)
7
12217-ZW1-010
BOLT, SEALING (20MM)
8
12251-ZY9-013
SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD
9
14820-PZA-013
SEE PART DETAILS - PRI; MOTION, LOST
10
15810-ZZ0-003ZA
VALVE ASSY., SPOOL *NH8* (DARK GRAY)
11
15815-RAA-A02
FILTER ASSY., SPOOL VALVE
13
16717-ZY9-000
LIFTER, FUEL PUMP
14
16896-ZY9-003
CLAMP B, FUEL TUBE
15
19300-ZY6-003
THERMOSTAT ASSY.
16
19315-ZW9-000
COVER, THERMOSTAT
17
19317-ZW9-000
O-RING, THERMOSTAT COVER
18
19361-ZY9-010
COVER, WATER JACKET
19
19371-ZY9-000
GASKET, EX. WATER JACKET COVER
20
31750-ZY9-003
RECTIFIER ASSY., REGULATOR
21
31754-ZY9-000
GASKET, REGULATOR
22
32114-ZY9-000
BRACKET D, HARNESS CLIP
23
35655-ZY9-003
SENSOR, OXYGEN
24
35673-ZY3-003
SENSOR ASSY., WATER TEMPERATURE
25
35695-ZY9-003
SENSOR ASSY., TDC
26
90008-PWA-003
BOLT-WASHER (9X155)
27
90011-ZY9-000
BOLT, FLANGE (8X95)
28
90016-ZY9-000
BOLT, FLANGE (8X110)
29
90017-ZY3-000
BOLT, FLANGE (6X16)
30
90018-ZW5-000
BOLT, FLANGE (6X20)
31
90019-ZW9-000
BOLT, FLANGE (6X35)
32
90030-ZY3-000
BOLT, FLANGE (6X22)
33
90047-ZY6-000
BOLT, STUD (8X32)
34
90147-ZW4-000
BOLT, FLANGE (6X55)
35
90691-ZB7-003
CLIP, HARNESS
36
91307-PNA-003
O-RING (9.5X1.9)
37
91333-PNA-003
O-RING (15X1.9)
38
91541-S0A-003
CLIP, HARNESS BAND (145MM) (BLACK)
39
93500-06018-4J
SCREW, PAN (6X18)
40
94109-20000
WASHER, DRAIN PLUG (20MM)
41
94301-14200
PIN, DOWEL (14X20)
42
19303-ZW9-003
RUBBER, RING
