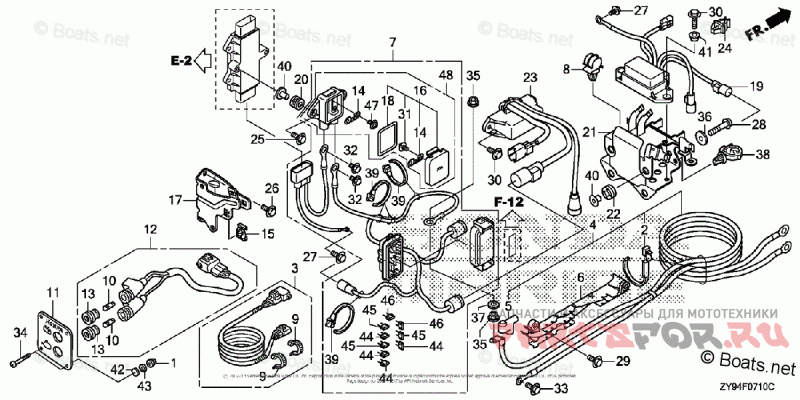

Starter Cable

Honda Marine BF90DK0 XRTA

Honda Marine
#oem кодцена
1
18334-MT8-770
NUT, FLANGE (5MM) | Use up to Frame SN 1014202.
2
32121-HA0-003
BAND, WIRE
3
32185-ZY3-010
WIRE ASSY., INDICATOR (3P/6P) (ANALOG) | Use up to Frame SN 1014202.
4
32410-ZY9-000
CABLE ASSY., STARTER
5
32411-ZY3-003
COVER, STARTER TERMINAL
6
32418-ZY9-000
HOLDER, STARTER CABLE
7
32435-ZY9-000
CABLE ASSY., ALTERNATOR FUSE
8
32660-MJ6-710
CLAMP, WIRE
9
32901-952-770
TIE, CABLE (2.4X92) (NATURAL) | Use up to Frame SN 1014202.
10
34908-KM1-671
BULB, WEDGE BASE (T6.5) (12V 3W) | Use up to Frame SN 1014202.
11
37206-ZW5-024
PANEL, INDICATOR (2-BULB) | Use from Frame SN 1003513 to 1014202.
11
37206-ZW5-014
PANEL, INDICATOR (2-BULB) | Use up to Frame SN 1003512.
12
37210-ZW5-004
LAMP ASSY., INDICATION (2-BULB) | Use up to Frame SN 1014202.
13
37581-KR3-008
LENS, SPEEDOMETER PILOT | Use up to Frame SN 1014202.
14
38201-ZY9-003
FUSE (70A)
15
38216-ZY3-003
CLIP, CONNECTOR HOLDER (B)
16
38216-ZY9-003
COVER ASSY., FUSE (70A)
17
38217-ZY9-000
BRACKET, FUSE BOX
18
38233-ZY9-000
GASKET, FUSE BOX COVER
19
38550-ZY9-003
RELAY ASSY., POWER TILT
20
38551-ZW1-000
GROMMET, RELAY
21
38552-ZY9-000
BRACKET, RELAY
22
38553-ZY9-003
GROMMET, RELAY BRACKET
23
38580-ZY9-003
RELAY ASSY., MAIN
24
50304-HE0-003
CLIP C, BRAKE PIPE
25
90003-ZW2-000
BOLT-WASHER (6X27) (CT200)
26
90011-ZW9-000
BOLT, FLANGE (6X14) (CT200)
27
90013-ZW9-000
BOLT, FLANGE (6X12)
28
90015-ZV0-C10
BOLT, FLANGE (6X28) (CT200)
29
90018-ZW5-000
BOLT, FLANGE (6X20)
30
90021-ZY3-000
BOLT, FLANGE (6X14)
31
90105-ZW5-003
SCREW-WASHER (3X7)
32
90106-ZW5-000
BOLT-WASHER (5X9)
33
90107-ZY3-000
BOLT, FLANGE (8X18)
34
90109-ZW5-000
SCREW, PAN (5X40) | Use up to Frame SN 1014202.
35
90203-ZW1-000
NUT-WASHER (8MM)
36
90404-ZY3-000
WASHER, PLAIN (22X6X1.6)
37
90405-ZY3-000
WASHER, PLAIN (8MM)
38
90683-SA0-003
CLIP, WIRE HARNESS (25MM)
39
91541-S0A-003
CLIP, HARNESS BAND (145MM) (BLACK)
40
91553-ZV5-010
SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)
41
91555-ZY9-000
COLLAR, P.T.T. RELAY
42
94103-05400
WASHER, PLAIN (5MM) | Use up to Frame SN 1014202.
43
94111-05400
WASHER, SPRING (5MM) | Use up to Frame SN 1014202.
44
98200-41000
FUSE, MINI (10A)
45
98200-41500
FUSE, MINI (15A)
46
98200-43000
FUSE, MINI (30A)
47
90153-SB2-003
SCREW-WASHER (5X10)
48
38210-ZY9-003
BOX ASSY., FUSE (70A)
