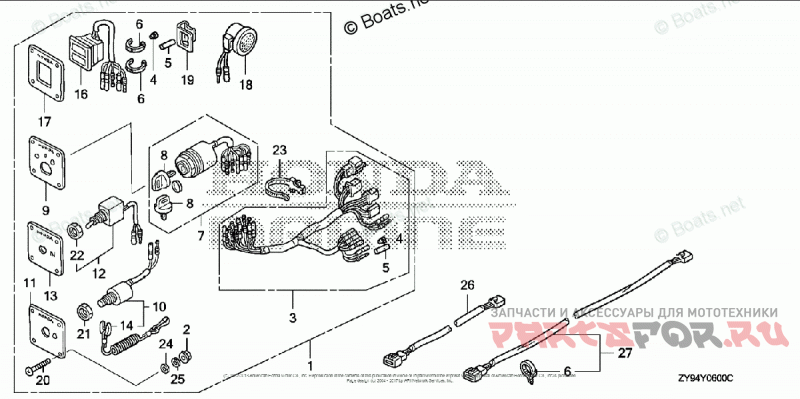

Control Panel Kit

Honda Marine BF90DK0 XRTA

Honda Marine
#oem кодцена
1
06323-ZW5-U16
PANEL KIT, CONTROL (2-LED) (A) | (Optional).
2
18334-MT8-770
NUT, FLANGE (5MM) | (Optional).
3
32545-ZW1-V03
HARNESS ASSY., SWITCH PANEL | (Optional).
4
32823-ZV5-003
PLUG, CONNECTOR (INNER) | (Optional).
5
32824-ZV5-003
PLUG, CONNECTOR (OUTER) | (Optional).
6
32901-952-770
TIE, CABLE (2.4X92) (NATURAL) | (Optional).
7
35100-ZV5-003
SWITCH ASSY., COMBINATION | (Optional). Use up to Frame SN 1011478.
7
35100-ZV5-013
SWITCH ASSY., COMBINATION | (Optional). Use from Frame SN 1011479.
8
35110-ZV5-003
KEY ASSY., COMBINATION SWITCH (35100-ZV5-003 ONLY) | (Optional). Use up to Frame SN 1011478.
9
35118-ZW5-U02
PANEL, SWITCH | (Optional).
10
35180-ZV7-033
SEE PART DETAILS - PRI; SWITCH ASSY., EMERGENCY STOP | (Optional).
11
35184-ZW5-U03
PANEL, EMERGENCY STOP SWITCH | (Optional).
12
35630-ZW5-U11
SWITCH ASSY., SOLENOID | (Optional).
13
35634-ZW5-U12
PANEL, SOLENOID | (Optional).
14
36182-ZV4-651
SEE PART DETAILS - PRI; WIRE, EMERGENCY | (Optional).
16
37210-ZW5-U01
LAMP ASSY., INDICATOR (2-LED) | (Optional).
17
37214-ZW5-U02
PANEL, INDICATOR | (Optional).
18
38410-ZW5-U01
BUZZER, WARNING | (Optional).
19
38414-ZW5-U00
BRACKET, BUZZER | (Optional).
20
90109-ZW5-000
SCREW, PAN (5X40) | (Optional).
21
90302-921-000
NUT, HEX. (16MM) | (Optional).
22
90305-ZW1-V01
NUT, HEX. (12MM) | (Optional).
23
90649-SC2-003
BAND, WIRE HARNESS (150MM) (NATURAL) | (Optional).
24
94103-05400
WASHER, PLAIN (5MM) | (Optional).
25
94111-05400
WASHER, SPRING (5MM) | (Optional).
26
32570-ZW5-U00
CABLE ASSY., EXTENSION (3P 7FT) (FOR 2-LED) | (Optional).
27
32570-ZW5-U10
CABLE ASSY., EXTENSION (3P 30FT) (FOR 2-LED) | (Optional).
