Stern Bracket (1) для лодочных моторов Honda Marine BF8DK3 SHA (2007 и новее)

Москва и регионы России

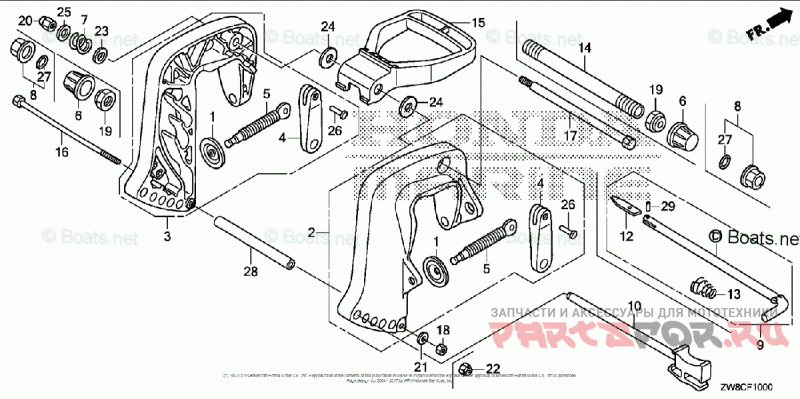

Stern Bracket (1)

Honda Marine BF8DK3 SHA

Stern Bracket (1)

#

oem код

название

цена

1

PLATE, PUSH

PLATE, PUSH

2

50300-ZW9-020ZB

BRACKET, R. STERN *NHB14M* (AQUA MARINE SILVER METALLIC)

BRACKET, R. STERN *NHB14M* (AQUA MARINE SILVER METALLIC)

3

50310-ZW9-030ZB

BRACKET, L. STERN *NHB14M* (AQUA MARINE SILVER METALLIC)

BRACKET, L. STERN *NHB14M* (AQUA MARINE SILVER METALLIC)

4

SEE PART DETAILS - PRI; GRIP, CLAMP

SEE PART DETAILS - PRI; GRIP, CLAMP

5

SCREW, CLAMP

SCREW, CLAMP

7

SPRING, TILT

SPRING, TILT

10

ROD, ADJUSTING

ROD, ADJUSTING

15

SEE PART DETAILS - PRI; HANDLE, CARRYING

SEE PART DETAILS - PRI; HANDLE, CARRYING

16

BOLT, HEX. (6X160)

BOLT, HEX. (6X160)

17

BOLT, TILTING

BOLT, TILTING

18

NUT, HEX. (6MM)

NUT, HEX. (6MM)

20

NUT, SELF-LOCK (8MM)

NUT, SELF-LOCK (8MM)

21

WASHER, PLAIN (6MM)

WASHER, PLAIN (6MM)

23

WASHER, PLAIN (10MM)

WASHER, PLAIN (10MM)

24

WASHER (10MM)

WASHER (10MM)

25

WASHER (8MM)

WASHER (8MM)

26

RIVET (4X22.6)

RIVET (4X22.6)

28

COLLAR, DISTANCE (6MM)

COLLAR, DISTANCE (6MM)
