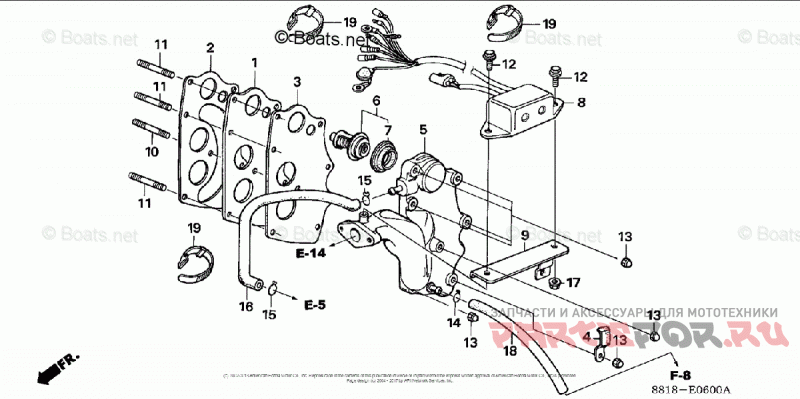

Inlet Manifold

Honda Marine BF8AK0 SA

Honda Marine
#oem кодцена
1
12515-881-000
PLATE, EX. CHAMBER
2
12516-881-003
SEE PART DETAILS - PRI; GASKET, EX. CHAMBER
3
12517-881-003
SEE PART DETAILS - PRI; GASKET, EX. CHAMBER
4
91403-881-000
CLIP B, CORD
5
17100-881-740ZA
MANIFOLD, IN. *NH8* (DARK GRAY)
6
19300-881-741
SEE PART DETAILS - PRI; THERMOSTAT ASSY.
7
19302-921-003
RUBBER, THERMOSTAT
8
30580-881-A01
MODULE, IGNITION CONTROL (CDI)
9
30586-881-010
SEE PART DETAILS - PRI; STAY, IGNITION CONTROL MODULE (CDI)
10
90005-881-742
BOLT, STUD (6X48)
11
90007-881-742
SEE PART DETAILS - PRI; BOLT, STUD (6X36)
12
90056-ZY3-000
BOLT, FLANGE (6X12)
13
90202-ZV0-000
NUT, CAP (6MM)
14
90602-921-000
CLIP, TUBE (B8)
15
90604-ZV0-000
CLIP, TUBE (B12)
16
90807-881-000
TUBE, BYPASS
17
90302-ZW4-000
NUT, HEX. (6MM)
18
95005-50003-30M
BULK HOSE, VACUUM (5X3000) (5X250)
19
90650-ZY1-003
TIE, CABLE
