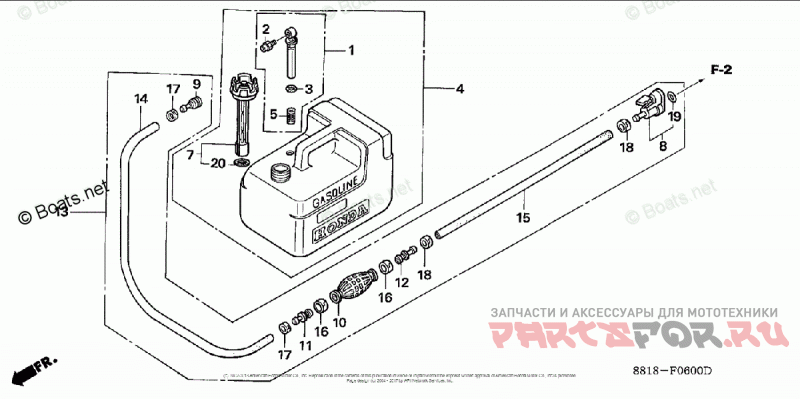

FUEL TANK

Honda Marine BF8AK0 SA

Honda Marine
#oem кодцена
1
16900-ZV4-A22
SEE PART DETAILS - PRI; JOINT ASSY., FUEL
2
16977-ZV5-A00
FITTING, QUICK DISCONNECT
3
16979-ZV5-901
SEE PART DETAILS - PRI; O-RING
4
17500-ZZ5-003
SEE PART DETAILS - PRI; TANK ASSY., FUEL
5
17583-ZV5-901
SEE PART DETAILS - PRI; FILTER, FUEL
7
17620-ZV4-A22
SEE PART DETAILS - SUP; CAP, FUEL FILLER
7
17620-ZV4-A23
SEE PART DETAILS - PRI; CAP, FUEL FILLER
8
17650-921-003ZB
CONNECTOR, FUEL *NH1* (BLACK) | Use up to Frame SN 2100466.
8
17650-921-003ZC
CONNECTOR, FUEL *NH282MU* (OYSTER SILVER METALLIC-U) | Use from Frame SN 2100467.
9
17660-ZW9-003
SEE PART DETAILS - PRI; CONNECTOR, FUEL
10
17661-921-010
SEE PART DETAILS - PRI; BULB, PRIMER
11
17665-ZV5-000
VALVE, IN.
12
17680-921-000
VALVE, OUTLET
13
17700-881-C03ZA
TUBE, FUEL *NH1* (BLACK) | Use up to Frame SN 2100466.
13
17700-881-C03ZB
TUBE, FUEL *NH282MU* (OYSTER SILVER METALLIC-U) | Use from Frame SN 2100467.
14
17701-ZV5-000
TUBE, FUEL LONG (7.3X2000)
15
17702-921-000
TUBE, FUEL SHORT
16
17703-921-010
SEE PART DETAILS - PRI; BAND, TUBE CLIP (20MM)
17
17704-ZV4-010
BAND, TUBE CLIP (12.5MM)
18
17704-ZW9-660
BAND, TUBE CLIP (11MM)
19
91353-921-310
O-RING (5.5MM)
20
17624-ZV5-902
GASKET, FUEL CAP
