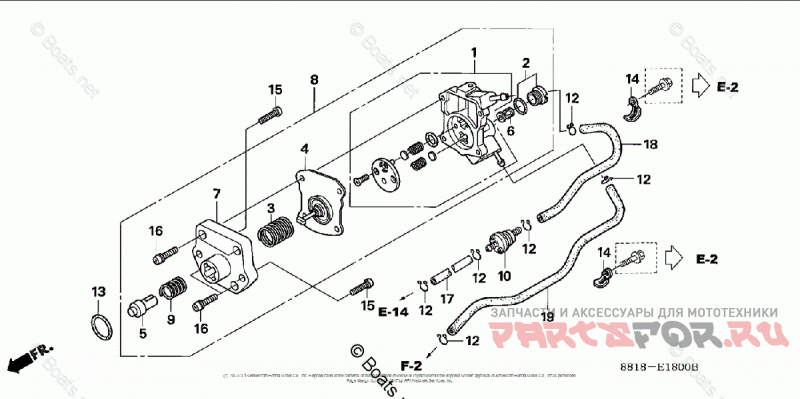

FUEL PUMP

Honda Marine BF8AK0 SA

Honda Marine
#oem кодцена
1
16015-935-034
SEE PART DETAILS - PRI; BODY SET, PUMP
2
16016-935-004
BOLT SET, HOLDING
3
16050-935-024
SPRING, DIAPHRAGM
4
16181-935-024
DIAPHRAGM
5
16182-935-014
ROD, PUSH
6
16194-935-004
SCREEN, FUEL STRAINER
7
16195-935-014
BODY (LOWER)
8
16700-935-024
PUMP ASSY., FUEL (MSDS)
9
16707-882-601
SPRING, PUSH ROD
10
16910-GB2-005
FILTER, FUEL
12
90602-921-000
CLIP, TUBE (B8)
13
91351-MG7-003
O-RING (20.8X2.4)
14
91403-881-000
CLIP B, CORD
15
90004-881-000
SCREW, PAN (6X20)
16
93892-04016-08
SCREW-WASHER (4X16)
17
95001-45003-60M
BULK HOSE, FUEL (4.5X3000) (95001-4500(95001-45001-60M)
18
95001-45003-60M
BULK HOSE, FUEL (4.5X3000) (4.5X220)
19
95001-45003-60M
BULK HOSE, FUEL (4.5X3000) (4.5X400)
