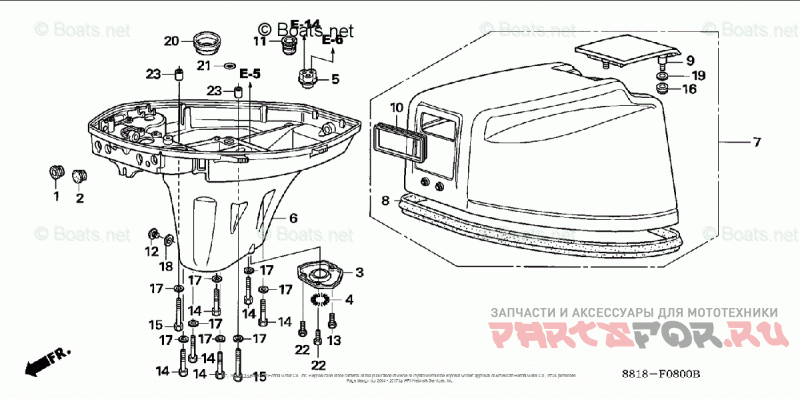

Engine Cover + Oil Case

Honda Marine BF8AK0 SA

Honda Marine
#oem кодцена
1
17914-881-300
GROMMET A, WIRE
2
17918-881-000
GROMMET C, OIL CASE
3
18221-881-000
PLATE, EX.
4
18222-881-000
BAND, EX. SEAL
5
19262-921-000
MANIFOLD, TUBE
6
40101-881-A04ZB
CASE, OIL *NH282MU* (OYSTER SILVER METALLIC-U)
7
63100-881-842ZB
SEE PART DETAILS - PRI; COVER, ENGINE *NH282MU* (OYSTER SILVER METALLIC-U)
8
63102-881-840
SEAL, ENGINE COVER
9
63105-881-840
HANDLE, TILT
10
63109-881-310
SEAL, RECOIL
11
82873-881-010
GROMMET, WATER CHECK
12
90105-ZVA-000
SEE PART DETAILS - PRI; BOLT, OIL CHECK
13
90106-881-000
BOLT, HEX. (6X12)
14
90111-881-000
BOLT, HEX. (6X32)
15
90120-ZV4-010
SEE PART DETAILS - PRI; BOLT, HEX. (6X40)
16
90304-881-010
NUT (6MM)
17
90506-ZV4-000
WASHER, PLAIN (6MM)
18
90507-921-000
WASHER, NYLON (8MM)
19
90512-921-010
WASHER (6MM)
20
91255-881-004
SEAL, COUPLING (25X40X22) (NOK)
21
91305-PE2-003
O-RING (9.8X1.9)
22
92101-06012-4J
BOLT, HEX. (6X12)
23
94301-08140
PIN, DOWEL (8X14)
