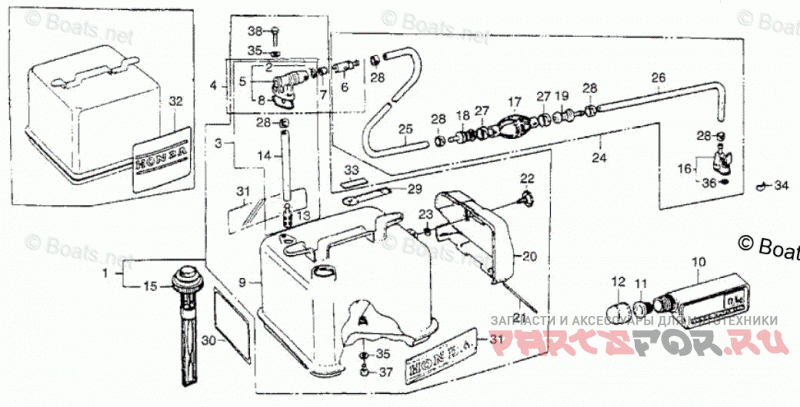

Fuel Tank + Sub Tank

Honda Marine BF75Z SA

Honda Marine
#oem кодцена
001
061C7-881-711H
TANK KIT, FUEL *R8*(BRIGHT RED)
002
16075-935-006
O-RING
003
16900-881-010
JOINT A, FUEL (NOT AVAILABLE)
004
16950-935-016
JOINT, FUEL CONSENT (NOT AVAILABLE)
005
16951-935-006
JOINT A, FUEL CONSENT (NOT AVAILABLE)
006
16952-935-016
JOINT B, FUEL CONSENT
007
16953-935-000
ABSORBER, FUEL
008
16962-865-010
RING, PETCOCK SEAL
009
17500-881-000H
TANK, FUEL *R8*(BRIGHT RED) (NOT AVAILABLE)
010
17570-921-000
TANK, OIL
011
17572-801-810
CAP, SUB-TANK (INNER) (NOT AVAILABLE)
012
17573-801-810
CAP, SUB-TANK (NOT AVAILABLE)
013
17583-881-000
FILTER, FUEL
014
17611-935-000
TUBE (INNER)
015
17620-921-153
CAP, FUEL FILLER (NOT AVAILABLE)
016
17650-921-003ZB
CONNECTOR, FUEL *NH1*(BLACK)
017
17661-921-010
BULB, PRIMER
018
17670-921-000
VALVE, IN.
019
17680-921-000
VALVE, OUTLET
020
17696-921-010
BOX, TOOL (NOT AVAILABLE)
021
17697-921-000
BAR (3X150) (NOT AVAILABLE)
022
17698-921-000
LATCH, TOOL BOX (NOT AVAILABLE)
023
17699-921-000
STOPPER, LATCH (NOT AVAILABLE)
024
17700-935-000B
TUBE, FUEL *B9*(ATLANTIS BLUE) (NOT AVAILABLE)
025
17701-921-000
TUBE, FUEL LONG (NOT AVAILABLE)
026
17702-921-000
TUBE, FUEL SHORT
027
17703-921-010
BAND, TUBE CLIP (20MM)
028
17704-921-000
BAND, TUBE CLIP (11MM)
029
87571-881-671
MARK, TANK CAUTION (ENGLISH/FRENCH)
032
87573-881-C41
MARK B, TANK (ENGLISH)
035
90445-700-000
GASKET, FIBER (6MM)
036
91353-921-310
O-RING (5.5MM)
037
92101-06012-4J
BOLT, HEX. (6X12)
038
92101-06016-0B
BOLT, HEX. (6X16)
