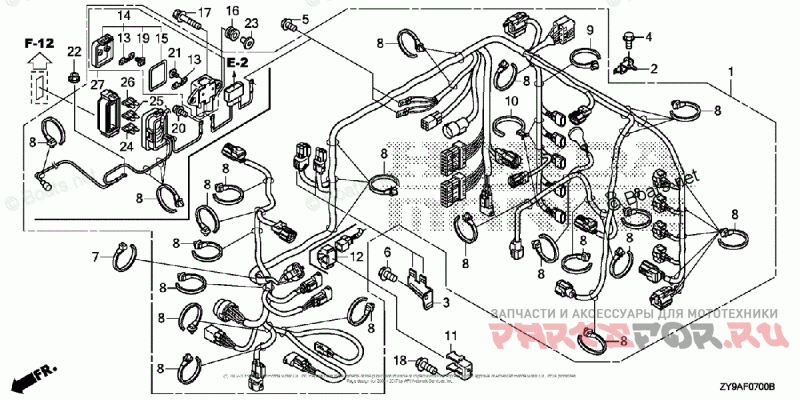

Main Wire Harness

Honda Marine BF75DK3 LRTA

Honda Marine
#oem кодцена
1
32100-ZY9-H00
WIRE HARNESS ASSY., MAIN
2
32101-ZY9-000
BRACKET A, CONNECTOR
3
32103-ZY9-000
BRACKET C, CONNECTOR
4
90011-ZW9-000
BOLT, FLANGE (6X14) (CT200)
5
90013-ZW9-000
BOLT, FLANGE (6X12)
6
90014-ZW9-000
BOLT, FLANGE (6X10)
7
90652-ZY9-003
BAND, WIRE HARNESS
8
91541-S0A-003
CLIP, HARNESS BAND (145MM) (BLACK)
9
91551-SW5-003
CLIP, HARNESS BAND (151MM) (BROWN)
10
91558-SJ6-003
STRAP, HARNESS (30) (107.5MM) (BLACK)
11
32104-ZY9-H00
BRACKET, CONNECTOR
12
32127-ZZ3-000
SUSPENSION, CONNECTOR
13
38201-ZY9-003
FUSE (70A)
14
38216-ZY9-003
COVER ASSY., FUSE (70A)
15
38233-ZY9-000
GASKET, FUSE BOX COVER
16
38551-ZW1-000
GROMMET, RELAY
17
90003-ZW2-000
BOLT-WASHER (6X27) (CT200)
18
90011-ZW9-000
BOLT, FLANGE (6X14) (CT200)
19
90105-ZW5-003
SCREW-WASHER (3X7)
20
90106-ZW5-000
BOLT-WASHER (5X9)
21
90153-SB2-003
SCREW-WASHER (5X10)
22
90203-ZW1-000
NUT-WASHER (8MM)
23
91553-ZV5-010
SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)
24
98200-41000
FUSE, MINI (10A)
25
98200-41500
FUSE, MINI (15A)
26
98200-43000
FUSE, MINI (30A)
27
38210-ZY9-003
BOX ASSY., FUSE (70A)
