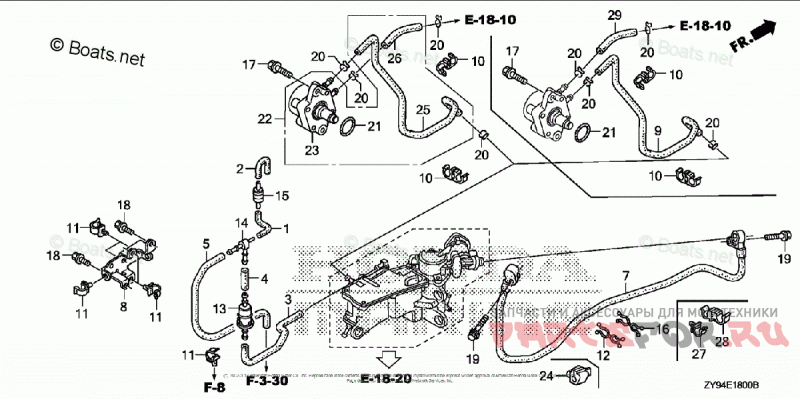

FUEL PUMP

Honda Marine BF75DK0 LHTA

Honda Marine
#oem кодцена
1
16195-ZY9-000
TUBE A, CHECK VALVE
2
16196-ZY9-000
TUBE B, CHECK VALVE
3
16197-ZY9-000
TUBE A, AIR VENT
4
16198-ZY9-000
TUBE B, AIR VENT
5
16199-ZY9-000
TUBE C, AIR VENT
7
16755-ZY9-003
HOSE, FUEL
8
16816-ZY9-000
BRACKET, FUEL TUBE CLAMP
9
06167-ZY9-000
SEE PART DETAILS - PRI; PUMP ASSY. KIT, FUEL (MSDS) | Use up to Engine SN 1004358.
10
16895-ZY9-003
CLAMP A, FUEL TUBE
11
16896-ZY9-003
CLAMP B, FUEL TUBE
12
16897-ZY9-003
CLAMP C, FUEL TUBE | Use up to Engine SN 1004257.
13
16910-ZV4-015
FILTER, FUEL
14
19269-ZY6-000
T-JOINT
15
36135-ZY6-003
VALVE, CHECK
16
78419-SJ6-003
CLIP D, SPEEDOMETER CABLE | Use up to Engine SN 1004257.
17
90003-ZW9-000
BOLT, FLANGE (6X22)
18
90011-ZW9-000
BOLT, FLANGE (6X14) (CT200)
19
90016-ZW9-000
BOLT, FLANGE (6X25)
20
90604-ZV0-000
CLIP, TUBE (B12) | Use from Engine SN 1004359.
21
91303-ZW9-000
O-RING (31.2X2.4)
22
06167-ZY9-000
SEE PART DETAILS - PRI; PUMP ASSY. KIT, FUEL (MSDS) | Use up to Engine SN 1004358.
23
16700-ZY9-013
PUMP ASSY., FUEL (MSDS) | Use from Engine SN 1004359.
24
16756-ZY9-000
GROMMET, FUEL HOSE | Use from Engine SN 1004258.
25
16881-ZY9-010
TUBE D, FUEL | Use from Engine SN 1004359.
26
16891-ZY9-000
TUBE E, FUEL | Use from Engine SN 1004359.
27
16896-ZY9-003
CLAMP B, FUEL TUBE | Use from Engine SN 1004258.
28
36533-P3F-A01
CLAMP, OXYGEN SENSOR | Use from Engine SN 1004258.
29
95001-75008-60M
BULK HOSE, FUEL (7.5X8000) (7.3X90) | Use up to Engine SN 1004358.
