Handlebar для лодочных моторов Honda Marine BF6AH SHNA (2007 и новее)

Москва и регионы России

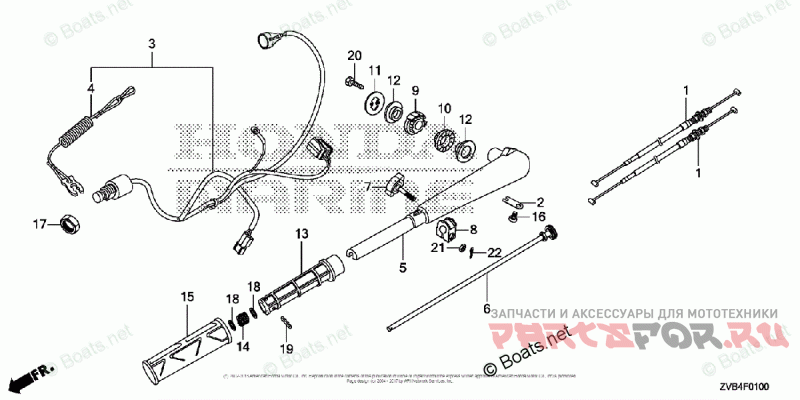

Handlebar

Honda Marine BF6AH SHNA

Handlebar

#

oem код

название

цена

1

CABLE, THROTTLE

CABLE, THROTTLE

2

PLATE, SHIFT SHAFT

PLATE, SHIFT SHAFT

3

SWITCH ASSY., EMERGENCY STOP

SWITCH ASSY., EMERGENCY STOP

4

WIRE, EMERGENCY

WIRE, EMERGENCY

5

53101-ZVD-305ZA

HANDLEBAR *NHB14M* (COO) (AQUA MARINE SILVER METALLIC)

HANDLEBAR *NHB14M* (COO) (AQUA MARINE SILVER METALLIC)

6

REEL, THROTTLE

REEL, THROTTLE

7

BOLT, FRICTION

BOLT, FRICTION

8

BLOCK, THROTTLE FRICTION

BLOCK, THROTTLE FRICTION

9

RUBBER, HANDLE MOUNTING (B)

RUBBER, HANDLE MOUNTING (B)

10

RUBBER, HANDLE MOUNTING (A)

RUBBER, HANDLE MOUNTING (A)

11

PLATE, HANDLEBAR

PLATE, HANDLEBAR

12

COLLAR, HANDLEBAR

COLLAR, HANDLEBAR

13

PIPE, GRIP

PIPE, GRIP

14

SPRING, GRIP PIPE

SPRING, GRIP PIPE

15

RUBBER, GRIP (COO)

RUBBER, GRIP (COO)

16

SCREW, PAN (6X8)

SCREW, PAN (6X8)

17

NUT, HEX. (16MM)

NUT, HEX. (16MM)

18

WASHER, PLAIN (10MM)

WASHER, PLAIN (10MM)

19

PIN, SPRING (4X28)

PIN, SPRING (4X28)

20

BOLT, HEX. (6X16)

BOLT, HEX. (6X16)

21

NUT, HEX. (6MM)

NUT, HEX. (6MM)

22

PIN, SPLIT 2

PIN, SPLIT 2
