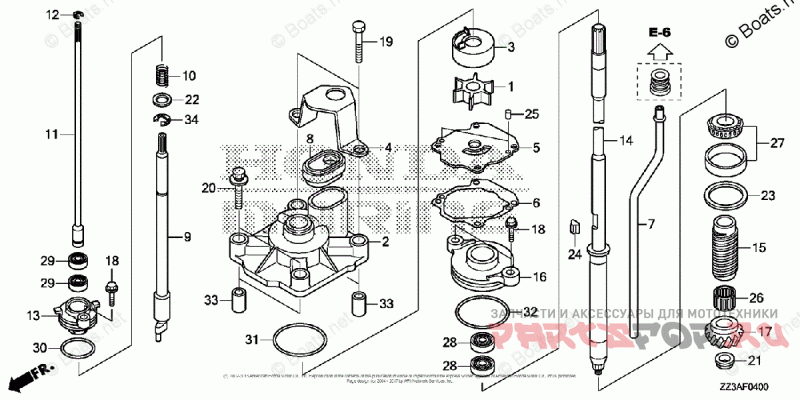

WATER PUMP 1

Honda Marine BF60AK1 LRTA

Honda Marine
#oem кодцена
1
19210-ZV5-003
IMPELLER, PUMP
2
19221-ZZ3-000
HOUSING, IMPELLER
3
19223-ZZ3-000
LINER, PUMP
4
19228-ZZ3-000
HOLDER, WATER TUBE SEAL
5
19231-ZZ3-000
COVER, IMPELLER
6
19234-ZZ3-000
GASKET, IMPELLER
7
19251-ZZ3-000
TUBE, WATER (L)
8
19253-ZZ3-000
RUBBER, WATER TUBE SEAL
9
24310-ZZ3-000
ROD, SHIFT
10
24318-ZY3-000
SPRING, SHIFT ROD
11
24320-ZW1-B00
ROD A, SHIFT (L)
12
24327-ZW1-000
RING, STOPPER
13
24343-ZZ3-000
HOLDER, SHIFT ROD
14
41112-ZZ3-000
SHAFT, VERTICAL (L)
15
41116-ZV5-000
SLINGER, OIL
16
41117-ZZ3-000
HOUSING, WATER SEAL
17
41131-ZZ3-000
GEAR, PINION (14T)
18
90105-ZW9-000
BOLT, FLANGE (6X20)
19
90116-881-000
BOLT, HEX. (8X40)
20
90116-ZY6-000
BOLT-WASHER (8X40)
21
90303-ZV5-000
NUT, SPECIAL (12MM)
22
90472-723-000
WASHER, PLAIN (12MM)
23
90518-ZV5-000
SHIM, GEAR (40X46X0.10) (A)
23
90519-ZV5-000
SHIM, GEAR (40X46X0.15) (B)
23
90520-ZV5-000
SHIM, GEAR (40X46X0.30) (C)
23
90521-ZV5-000
SHIM, GEAR (40X46X0.50) (D)
24
90752-ZV5-003
KEY, WOODRUFF
25
90756-ZV5-000
PIN, DOWEL (6X10)
26
91052-ZZ3-003
BEARING, NEEDLE (7/8X11/8X1)
27
91054-ZV5-003
BEARING (25X47X15)
28
91251-ZZ3-003
SEAL, WATER (17X36X6)
29
91254-ZY3-003
SEAL, WATER (12X21X6)
30
91351-ZZ3-000
O-RING (33.7X3.5)
31
91356-ZZ3-000
O-RING, WATER PUMP
32
91359-MB0-000
O-RING (58.5X3.5)
33
91552-ZY6-000
COLLAR, DISTANCE
34
94540-10019
E-RING (10MM)
