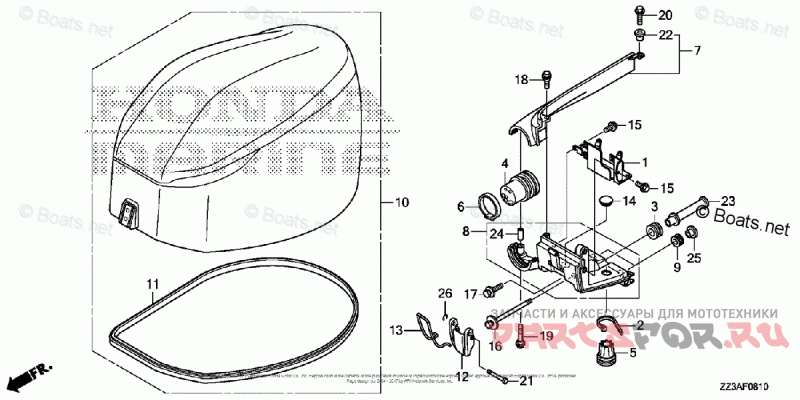

ENGINE COVER

Honda Marine BF60AK1 JRTA

Honda Marine
#oem кодцена
1
32581-ZZ3-000
BRACKET, REMOTE CONTROL CABLE
2
35701-MG9-950
BAND (BLACK 3.5X140)
3
40102-ZV5-000
GROMMET, CASE (LOWER)
4
40105-ZZ3-000
GROMMET, REMOTE CONTROL CABLE
5
40107-ZW1-700
GROMMET, CASE (LOWER) (C)
6
40119-ZY3-003
BAND, CASE GROMMET (LOWER)
7
40151-ZZ3-000ZA
COVER, FR. SEPARATE *NHB14M* (AQUA MARINE SILVER METALLIC)
8
40154-ZZ3-000ZA
BRACKET, FR. COVER (LOWER) *NHB14M* (AQUA MARINE SILVER METALLIC)
9
61102-MB6-631
RUBBER, FENDER MOUNTING
10
63100-ZZ3-010ZA
COVER ASSY., ENGINE *NHB14M* (AQUA MARINE SILVER METALLIC)
11
63102-ZZ3-000
SEAL, ENGINE COVER
12
63232-ZY9-010
LEVER, FASTENER
13
63237-ZY9-000
WIRE, FASTENER
14
63515-ZC0-700
CAP, L. SIDE COVER
15
90014-ZW9-000
BOLT, FLANGE (6X10)
16
90104-ZY9-000
BOLT-WASHER (6X95)
17
90106-ZZ3-000
BOLT-WASHER (6X27)
18
90111-ZY3-000
BOLT, SPECIAL (6X17)
19
90132-ZY3-000
BOLT, SPECIAL (6X37)
20
90168-ZW4-000
BOLT, FLANGE (6X20)
21
90754-ZY9-000
PIN (5X44.5)
22
91553-ZY6-000
COLLAR, DISTANCE (6.5X9X11.5)
23
91553-ZY9-000
COLLAR, FR. BRACKET
24
91553-ZZ3-000
COLLAR, DISTANCE (6.1X9.1X20.5)
25
91554-ZY9-000
COLLAR, DISTANCE (6.2X7.5)
26
94540-04029
E-RING (4MM)
