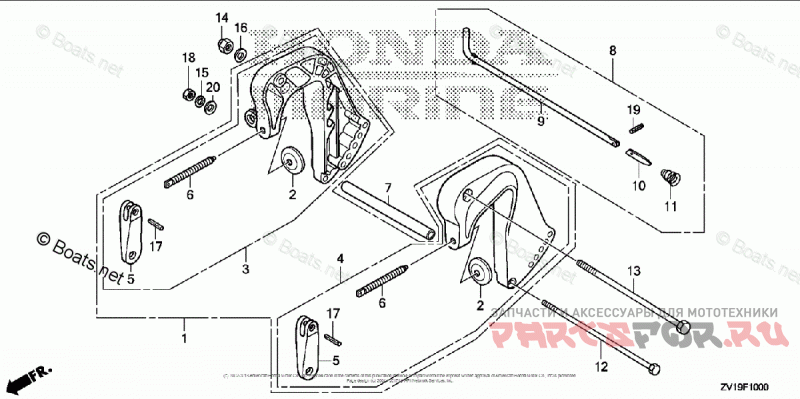

Stern Bracket

Honda Marine BF5AK3 SA

Honda Marine
#oem кодцена
1
04601-ZV1-010ZB
BRACKET KIT, STERN *NHB14M* (AQUA MARINE SILVER METALLIC) | (Optional).
2
50122-935-010
PLATE, PUSH
3
50300-ZV1-842ZC
BRACKET, R. STERN *NHB14M* (AQUA MARINE SILVER METALLIC)
4
50310-ZV1-843ZC
BRACKET, L. STERN *NHB14M* (AQUA MARINE SILVER METALLIC)
5
50323-ZW9-300
SEE PART DETAILS - PRI; GRIP, CLAMP
6
50325-ZW9-830
SCREW, CLAMP
7
50335-ZV1-000
COLLAR, DISTANCE (6MM)
8
50340-ZV1-000
ROD, ADJUSTING
9
50341-ZV1-310
ROD, ADJUSTING
10
50342-ZV1-310
STOPPER, ROD
11
50343-ZV1-300
SPRING, ROD ADJUSTING
12
90103-ZV1-000
BOLT, HEX. (6X140)
13
90107-ZV1-000
BOLT, HEX. (8X130)
14
90305-ZV4-000
NUT, SELF-LOCK (8MM)
15
90407-920-000
WASHER, SPRING (6MM)
16
90514-921-000
WASHER (8MM)
17
90855-ZW9-300
RIVET (4X22.6)
18
94001-06490-0S
NUT, HEX. (6MM)
19
94305-20063
PIN, SPRING (2X6)
20
90504-921-010
WASHER, PLAIN (6MM)
