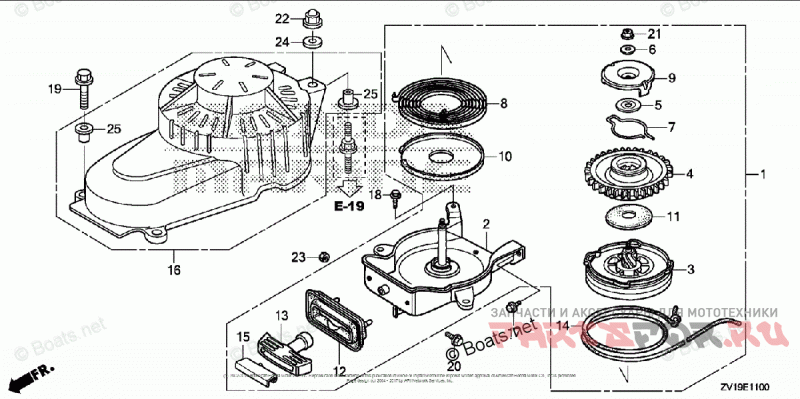

RECOIL STARTER

Honda Marine BF5AK3 SA

Honda Marine
#oem кодцена
1
28400-ZV1-083ZB
SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *TBLACK* (BLACK)
2
28410-ZV1-033ZB
SEE PART DETAILS - PRI; CASE, RECOIL STARTER *TBLACK* (BLACK)
3
28421-ZV1-003
PULLEY, RECOIL STARTER
4
28426-ZV1-033
SEE PART DETAILS - PRI; GEAR, STARTER
5
28431-ZV1-013
SEE PART DETAILS - PRI; WASHER, THRUST
6
28432-ZV1-013
WASHER
7
28441-ZV1-013
SEE PART DETAILS - PRI; SPRING, FRICTION
8
28442-ZV1-003
SPRING, STARTER RETURN
9
28443-ZV1-033
SEE PART DETAILS - PRI; RETAINER, SPRING
10
28445-ZV1-003
HOLDER, SPRING
11
28454-ZV1-003
RUBBER, CUSHION
12
28455-ZV1-000
RUBBER, ENGINE COVER SEAL
13
28461-ZV1-023
GRIP, STARTER
14
28462-ZV1-003
ROPE, RECOIL STARTER (N/A: USE P/N 08555-ZG921-11)
15
28463-ZV1-003
CAP, GRIP
16
31145-ZV1-000
COVER, FLYWHEEL
17
90013-ZV0-010
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)
18
90017-ZY3-000
BOLT, FLANGE (6X16)
19
90028-ZY3-000
BOLT, FLANGE (6X18)
20
90128-ZV1-010
BOLT, FLANGE (6X16)
21
90201-ZV1-003
NUT, FLANGE (6MM)
22
90201-ZY6-000
NUT, FLANGE CAP (6MM)
23
90302-ZW4-000
NUT, HEX. (6MM)
24
90403-ZW6-000
WASHER (6.5X18)
25
90504-ZS9-000
COLLAR, RECOIL STARTER
