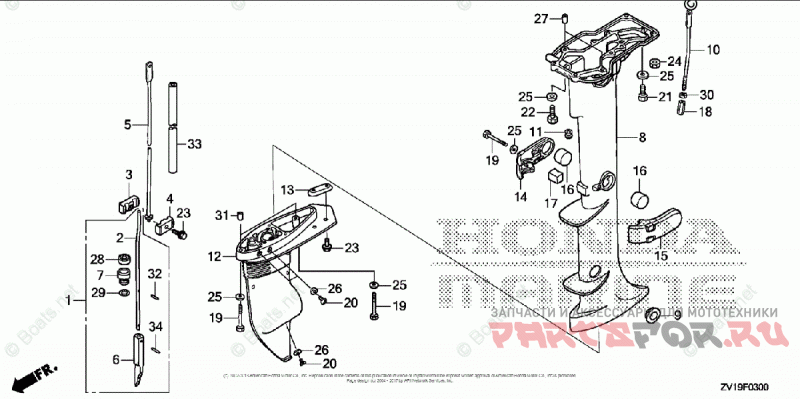

Extension Case + Gear Case

Honda Marine BF5AK3 LA

Honda Marine
#oem кодцена
1
24310-ZV1-000
ROD B, SHIFT
2
24311-ZV1-C00
SEE PART DETAILS - PRI; ROD B, SHIFT
3
24312-ZV1-003
JOINT, R. SHIFT ROD
4
24313-ZV1-003
JOINT, L. SHIFT ROD
5
24320-ZV1-700
ROD A, SHIFT (L)
6
24341-ZV1-300
ROD, PUSH
7
24343-ZV1-000
HOLDER, SEAL
8
40201-ZV1-943ZC
CASE, EXTENSION *NHB14M* (L) (AQUA MARINE SILVER METALLIC) | Use up to Frame SN 2502355.
8
40201-ZV1-C10ZB
CASE, EXTENSION *NHB14M* (L) (AQUA MARINE SILVER METALLIC) | Use from Frame SN 2502356.
9
40202-ZV1-000
GROMMET, EXTENSION
10
40204-ZV1-000
SHAFT, REVERSE LOCK
11
40205-ZV1-000
GROMMET, LOCK SHAFT
12
41100-ZV1-C00ZB
CASE, GEAR *NHB14M* (AQUA MARINE SILVER METALLIC)
13
41106-ZV4-650
METAL, ANODE
14
50111-ZV1-842ZC
HOUSING, R. MOUNTING (LOWER) *NHB14M* (AQUA MARINE SILVER METALLIC)
15
50121-ZV1-842ZC
HOUSING, L. MOUNTING (LOWER) *NHB14M* (AQUA MARINE SILVER METALLIC)
16
50152-ZV1-000
RUBBER A, MOUNTING (LOWER)
17
50155-ZV1-000
RUBBER B, MOUNTING (LOWER)
18
90005-ZV1-000
NUT, REVERSE LOCK
19
90102-ZV1-000
BOLT, HEX. (6X50)
20
90105-ZVA-000
SEE PART DETAILS - PRI; BOLT, OIL CHECK
21
90111-881-000
BOLT, HEX. (6X32)
22
90114-881-000
BOLT, HEX. (6X40)
23
90215-HW1-671
SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (SUS)
24
90304-ZV4-000
NUT, HEX. (6MM)
25
90506-ZV4-000
WASHER, PLAIN (6MM)
26
90507-921-000
WASHER, NYLON (8MM)
27
94301-08160
PIN, DOWEL (8X16)
28
91253-921-003
SEAL, WATER (6MM)
29
15142-PH3-003
SEE PART DETAILS - PRI; O-RING (10.8X2.4) (ARAI)
30
94001-05490-0S
NUT, HEX. (5MM)
31
94301-08140
PIN, DOWEL (8X14)
32
94305-25102
PIN, SPRING (2.5X10)
33
95001-80001-60M
BULK HOSE, FUEL (8X1000) (8X250)
34
91151-VD6-851
ROLLER (2.5X11.8)
34
96220-25118
ROLLER (2.5X11.8)
