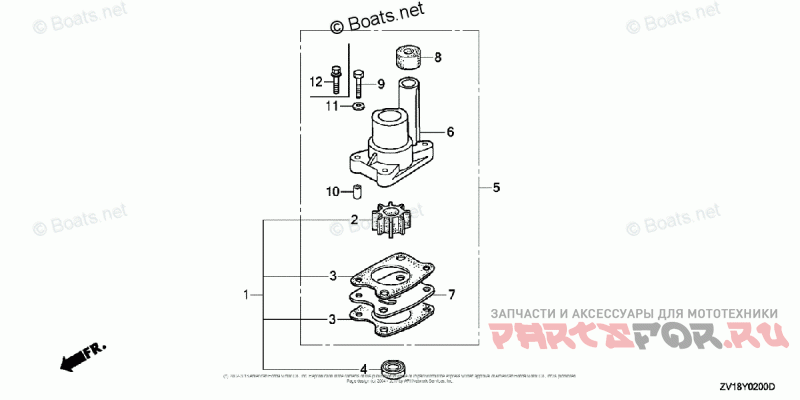

Water Pump Impeller Kit

Honda Marine BF5AK0 SA

Honda Marine
#oem кодцена
1
06192-ZV1-C00
IMPELLER KIT, WATER PUMP | (Optional).
2
19210-881-A02
SEE PART DETAILS - PRI; IMPELLER, PUMP | (Optional).
3
19232-ZV1-A10
GASKET, IMPELLER | (Optional).
4
91252-ZV1-003
SEAL, WATER (13MM) (ARAI) | (Optional).
5
06193-ZV1-000
PUMP KIT, IMPELLER | (Optional).
6
19220-ZV1-A00
SEE PART DETAILS - PRI; HOUSING, IMPELLER | (Optional).
7
19231-ZV1-A00
COVER, IMPELLER | (Optional).
8
19253-ZV1-000
RING, WATER TUBE SEAL | (Optional).
9
90108-881-000
BOLT, HEX. (6X28) | (Optional). Use up to Frame SN 2305314.
10
90112-881-000
COLLAR B, DISTANCE | (Optional).
11
90504-921-010
WASHER, PLAIN (6MM) | (Optional). Use up to Frame SN 2305314.
12
90059-ZY3-000
BOLT-WASHER (6X29) | (Optional). Use from Frame SN 2305315.
