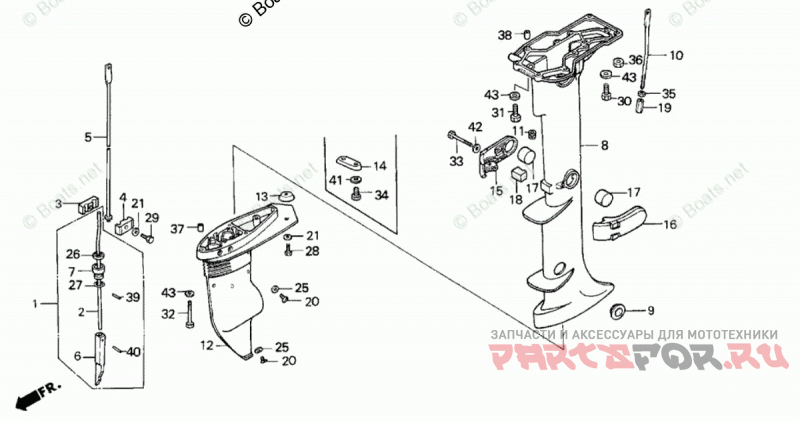

Extension Case

Honda Marine BF50F-SA BF50S-1000001 to BF50S-1099999

Honda Marine
#oem кодцена
001
24310-ZV1-000
ROD B, SHIFT
002
24311-ZV1-C00
ROD B, SHIFT
003
24312-ZV1-003
JOINT, R. SHIFT ROD
004
24313-ZV1-003
JOINT, L. SHIFT ROD
005
24320-ZV1-000
ROD A, SHIFT (S)
006
24341-ZV1-300
ROD, PUSH
007
24343-ZV1-000
HOLDER, SEAL
008
40201-ZV1-000ZA
CASE, EXTENSION *B107* (S)(SENIOR BLUE) (NOT AVAILABLE)
009
40202-ZV1-000
GROMMET, EXTENSION
010
40204-ZV1-000
SHAFT, REVERSE LOCK
011
40205-ZV1-000
GROMMET, LOCK SHAFT
012
41100-ZV1-000ZA
CASE, GEAR *B107*(SENIOR BLUE) (NOT AVAILABLE)
013
41106-ZV1-000
METAL, ANODE
014
41106-935-811
METAL, ANODE
014
41106-935-812
METAL, ANODE
015
50111-ZV1-000ZA
HOUSING, R. MOUNTING (LOWER) *B107*(SENIOR BLUE) (NOT AVAILABLE)
016
50121-ZV1-000ZA
HOUSING, L. MOUNTING (LOWER) *B107*(SENIOR BLUE) (NOT AVAILABLE)
017
50152-ZV1-000
RUBBER A, MOUNTING (LOWER)
018
50155-ZV1-000
RUBBER B, MOUNTING (LOWER)
019
90005-ZV1-000
NUT, REVERSE LOCK
020
90105-921-000
BOLT, OIL CHECK
021
90504-921-010
WASHER, PLAIN (6MM)
025
90507-921-000
WASHER, NYLON (8MM)
026
91253-921-003
SEAL, WATER (6MM)
027
15142-PH3-003
O-RING (10.8X2.4) (ARAI)
028
92101-06014-4J
BOLT, HEX. (6X14)
029
92101-06016-4J
BOLT, HEX. (6X16)
030
92000-06032-4J
BOLT, HEX. (6X32) (NOT AVAILABLE)
031
92000-06040-4J
BOLT, HEX. (6X40)
032
92101-06045-4J
BOLT, HEX. (6X45)
033
92101-06050-4J
BOLT, HEX. (6X50)
034
92101-06016-4J
BOLT, HEX. (6X16)
035
94001-05490-0S
NUT, HEX. (5MM)
036
94001-06490-0S
NUT, HEX. (6MM)
037
94301-08140
PIN, DOWEL (8X14)
038
94301-08160
PIN, DOWEL (8X16)
039
94305-25122
PIN, SPRING (2.5X12)
039
94305-25102
PIN, SPRING (2.5X10)
040
96220-25118
ROLLER (2.5X11.8)
041
90504-921-010
WASHER, PLAIN (6MM)
042
90504-921-010
WASHER, PLAIN (6MM)
043
90504-921-010
WASHER, PLAIN (6MM)
