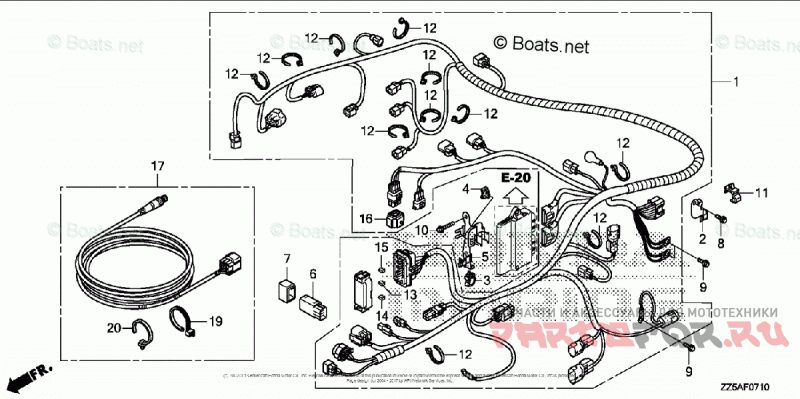

Wire Harness

Honda Marine BF40DK4 LRTA

Honda Marine
#oem кодцена
1
32100-ZZ5-M00
WIRE HARNESS ASSY., MAIN
2
32103-ZZ5-000
BRACKET C, CONNECTOR
3
32660-MJ6-710
CLAMP, WIRE
4
38216-ZY3-003
CLIP, CONNECTOR HOLDER (B)
5
38217-ZZ5-010
BRACKET, FUSE BOX
6
38580-ZZ5-003
RELAY ASSY., MAIN
7
38586-ZZ5-003
SUSPENSION, RELAY
8
90011-ZZ5-M00
BOLT, FLANGE (6X14) (CT200)
9
90105-ZZ5-M00
BOLT, FLANGE (6X12)
10
90103-ZZ5-M00
BOLT, FLANGE (6X28) (CT200)
11
90651-SB2-003
CLIP, WIRE HARNESS (13MM) (GRAY)
12
91541-S0A-003
CLIP, HARNESS BAND (145MM) (BLACK)
13
98200-41000
FUSE, MINI (10A)
14
98200-41500
FUSE, MINI (15A)
15
98200-43000
FUSE, MINI (30A)
16
32127-ZZ3-000
SUSPENSION, CONNECTOR
17
06328-ZZ3-763
SEE PART DETAILS - PRI; KIT, CABLE (6FT) (NMEA) | (Optional).
19
90650-ZY1-003
TIE, CABLE | (Optional).
20
91540-STK-003
CLIP, HARNESS BAND (155.3MM) (BLACK) | (Optional).
