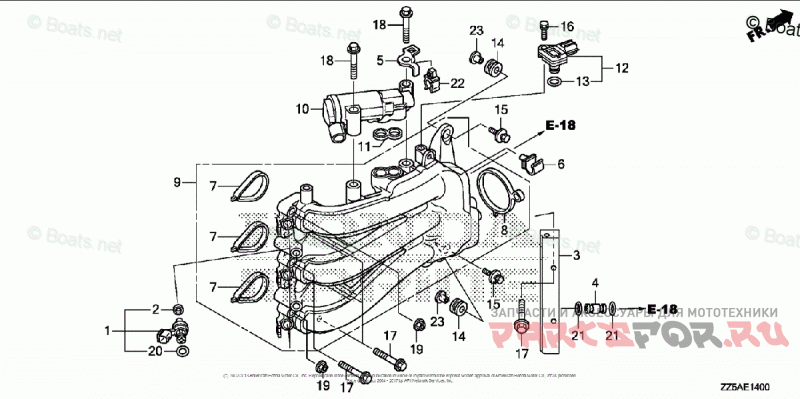

Inlet Manifold + Injector

Honda Marine BF40DK2 LRTA

Honda Marine
#oem кодцена
1
16450-ZZ5-003
INJECTOR ASSY., FUEL
2
16472-KPC-D50
RING, SEAL
3
16620-ZZ5-010
LINE, FUEL
4
16752-ZY3-A00
JOINT, FUEL PIPE
5
16817-ZZ5-000
BRACKET B, TUBE CLAMP
6
16896-ZY9-003
CLAMP B, FUEL TUBE
7
17105-ZZ5-003
GASKET, IN. MANIFOLD
8
17107-ZZ5-003
GASKET, THROTTLE BODY
9
17110-ZZ5-003
MANIFOLD, INLET
10
36550-ZZ5-003
VALVE ASSY., ELECTRONIC AIR CONTROL
11
36551-ZY6-003
GASKET, ELECTRONIC AIR CONTROL VALVE
12
37830-RNA-A01
SENSOR ASSY., MAP | Use from Engine SN 1009262.
12
37830-PNC-003
SENSOR ASSY., MAP | Use up to Engine SN 1009261.
13
37835-PGK-A01
O-RING
14
40102-ZV5-000
GROMMET, CASE (LOWER)
15
90013-ZW1-000
BOLT-WASHER (6X25)
16
90029-ZY3-000
BOLT-WASHER (5X18)
17
90031-ZY3-000
BOLT, FLANGE (6X32)
18
90126-ZW4-000
BOLT, FLANGE (8X45)
19
90301-ZW2-F00
NUT, FLANGE (6MM)
20
91301-KPH-701
O-RING (7.3X2.2)
21
91301-MJ0-003
O-RING (7.8X1.9) (ARAI)
22
91531-SZ5-003
CLIP, TUBE (3.5)
23
91553-ZV5-010
SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)
