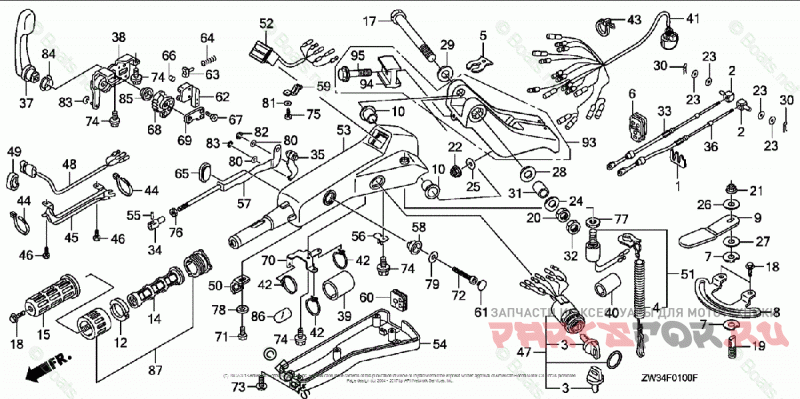

Handlebar

Honda Marine BF40AK0 LHA

Honda Marine
#oem кодцена
1
17877-ZV5-000
PLATE, REMOTE CONTROL CABLE
2
24618-ZV5-000
PIVOT, SHIFT
3
35110-ZV5-003
KEY ASSY., COMBINATION SWITCH (35100-ZV5-003 ONLY)
4
36182-ZV4-651
SEE PART DETAILS - PRI; WIRE, EMERGENCY | Use up to Frame SN 3700790.
5
36187-ZV4-652
SEE PART DETAILS - PRI; CLIP, EMERGENCY LOCK
6
40105-ZV5-000
GROMMET, CASE (LOWER) (A)
7
50212-ZW9-003
BLOCK, FRICTION
8
50218-ZW4-H00
PLATE, FRICTION
9
50219-ZW4-H00
LEVER, FRICTION
10
53116-ZW4-H11
BUSH, HANDLEBAR
11
53130-ZW9-000
GRIP ASSY., THROTTLE FRICTION | Use up to Frame SN 3700773.
12
53133-ZW9-000
PAD, THROTTLE FRICTION
13
53134-ZW9-000
BLOCK, THROTTLE FRICTION | Use up to Frame SN 3700773.
14
53141-ZW4-H00
PIPE, GRIP
15
53165-ZW9-000
RUBBER, GRIP
16
53233-ZW4-H01ZA
SEE PART DETAILS - PRI; BRACKET, STEERING *NH282MU* (OYSTER SILVER METALLIC-U)
17
90101-ZW4-H00
BOLT, HEX. (12X80)
18
90102-ZW9-000
BOLT, FLANGE (6X12)
19
90162-ZW9-000
BOLT, STUD (8X26)
20
90303-ZW4-H00
NUT, HEX. (12MM)
21
90305-ZW9-000
NUT, SELF-LOCK (8MM)
22
90306-ZV5-003
NUT, SELF-LOCK (10MM)
23
90504-921-010
WASHER, PLAIN (6MM)
24
90506-ZV1-000
WASHER, WAVE (14MM)
25
90514-ZV4-000
WASHER (10MM)
26
90514-921-000
WASHER (8MM)
27
90517-ZW9-000
WASHER, NYLON (8MM)
28
90552-ZV5-000
WASHER, PLAIN (12MM)
29
90559-ZV5-000
WASHER, PLAIN (12MM)
30
90765-ZV5-000
PIN, SPECIAL LOCK (6MM)
31
91552-ZW4-H00
COLLAR, DISTANCE (12.2X23X16)
32
94002-12490-0S
NUT, HEX. (12MM)
33
17910-ZW4-H01
CABLE, THROTTLE
34
17917-ZW9-000
PIVOT, THROTTLE CABLE
35
17931-ZW4-H02
ARM, THROTTLE
36
24590-ZW4-H01
CABLE, SHIFT
37
24614-ZW4-H01
LEVER, SHIFT
38
24615-ZW4-H02
FRAME ASSY., SHIFT | Use from Frame SN 3701428.
38
24615-ZW4-H03
FRAME ASSY., SHIFT | Use up to Frame SN 3701427.
39
32533-ZW4-H01
TUBE (38.1X40)
40
32534-ZW4-H01
TUBE (19X40)
41
32538-ZW4-H01
CABLE ASSY., LONG HANDLE (A)
42
32543-ZW4-H01
BAND (CONVEX CV-150)
43
32544-ZW4-H01
BAND (CONVEX CV-200)
47
35100-ZW4-H02
SWITCH ASSY., COMBINATION
50
35645-ZW4-H02
HOLDER, SWITCH
51
36180-ZV5-033
SEE PART DETAILS - PRI; SWITCH ASSY., EMERGENCY STOP
52
37210-ZW1-702
LAMP ASSY., INDICATION (2-LED)
53
06531-ZY9-305ZA
HOUSING *NH282MU* (OYSTER SILVER METALLIC-U)
54
53102-ZY9-305
COVER (LOWER)
55
53103-ZW9-000
PIN, THROTTLE CABLE
56
53104-ZW4-H02
BRACKET, CABLE
57
53105-ZW4-H01
PLATE ASSY., LOCK
58
53106-ZW4-H01
STOPPER
59
53107-ZW4-H02
PLATE, GUIDE
60
53108-ZW4-H01
GROMMET
61
53109-ZW4-H02
CAP
62
53112-ZW4-H02
GUIDE, SPRING
63
53113-ZW4-H01
ACTUATOR
64
53114-ZW4-H01
SPRING, COIL
65
53115-ZW4-H01
GROMMET, POWER TILT SWITCH
66
53116-ZW4-H01
ROLLER
67
53117-ZW4-H01
SCREW (M5X14) | Use from Frame SN 3701428.
68
53118-ZW4-H03
SEE PART DETAILS - PRI; GEAR, SHIFT
69
53119-ZW4-H01
PLATE, BALL GUIDE | Use up to Frame SN 3701427.
69
53119-ZW4-H02
PLATE, BALL GUIDE | Use from Frame SN 3701428.
70
53121-ZW4-H02
BRACKET
71
90102-ZW4-H01
BOLT (M5X8)
72
90103-ZW4-H02
SEE PART DETAILS - PRI; BOLT (M8X50) | Use up to Frame SN 3701427.
73
90104-ZW4-H01
BOLT (M5X12)
74
90105-ZW4-H02
BOLT (M6X12)
75
90106-ZW4-H01
BOLT (M5X12)
76
90301-ZW4-H01
NUT, HEX. (5MM)
77
90302-921-000
NUT, HEX. (16MM)
78
90501-ZW4-H01
WASHER (5MM)
79
90502-ZW4-H02
SEE PART DETAILS - PRI; WASHER (8MM) | Use up to Frame SN 3701427.
80
90503-ZW4-H01
WASHER (10MM)
81
90504-ZW4-H01
WASHER (5MM)
82
90651-ZW4-H01
E-RING
83
90652-ZW4-H01
E-RING
84
91051-ZW4-H01
BEARING
85
91052-ZW4-H01
BEARING
86
91408-ZJ1-810
TUBE, CORD (30MM)
87
53130-ZW9-000
GRIP ASSY., THROTTLE FRICTION
93
06530-ZW4-305ZA
BRACKET KIT, STEERING *NH282MU* (OYSTER SILVER METALLIC-U)
94
53232-ZY9-A00
BLOCK, HEIGHT ADJUSTER | (Optional).
95
90118-HW1-671
BOLT, FLANGE (8X28) | (Optional).
