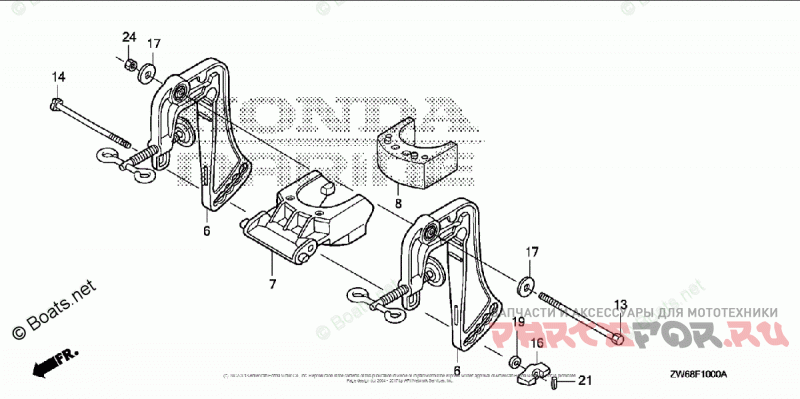

Swivel Case

Honda Marine BF2DK0 SCHA

Honda Marine
#oem кодцена
1
50201-ZW6-000ZA
CASE, SWIVEL *NH246* (LOOSY GRAY) | Use up to Frame SN 2301000.
1
50201-ZW6-C00ZA
CASE, SWIVEL *NH246* (LOOSY GRAY) | Use from Frame SN 2301001.
2
50203-ZW6-000ZA
CAP, SWIVEL CASE *NH246* (LOOSY GRAY) | Use up to Frame SN 2301000.
2
50203-ZW6-010ZA
CAP, SWIVEL CASE *NH246* (LOOSY GRAY) | Use from Frame SN 2301001.
3
50204-ZV0-000
COLLAR, SWIVEL CASE
4
50212-ZV0-010
BLOCK, FRICTION
5
50233-ZV0-000
SPRING, FRICTION ADJUSTING
6
50300-ZW6-020ZA
SEE PART DETAILS - PRI; BRACKET, STERN *NH246* (LOOSY GRAY)
7
50302-ZW6-000
RECEIVER, THRUST
8
50303-ZV0-000
RUBBER, THRUST
9
50337-ZV0-000
COLLAR, DISTANCE
10
50511-ZV0-010
ARM, TILT LOCK
11
50516-ZVA-000
SEE PART DETAILS - PRI; SPRING, TILT LOCK
12
90106-ZV0-000
BOLT, SWIVEL CASE
13
90107-ZV0-000
BOLT, HEX. (8X110)
14
90108-ZV0-000
BOLT, DIAMOND (6X110)
15
90114-HW1-671
SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) | Use from Frame SN 2301001.
15
90116-881-000
BOLT, HEX. (8X40) | Use up to Frame SN 2301000.
16
90301-ZV0-000
WINGNUT
17
90501-ZV0-000
WASHER, PLAIN (8MM)
18
90507-ZV4-000
WASHER, PLAIN (8MM) | Use up to Frame SN 2301000.
19
90512-ZV0-000
WASHER, PLAIN (6MM)
20
90518-921-000
WASHER, PLAIN (8MM)
21
90751-ZW6-000
PIN, SPRING (2.5X8)
22
90752-ZW6-000
PIN, SPRING (2.5X20)
23
90951-ZV7-010
SEE PART DETAILS - PRI; NIPPLE, GREASE
24
94001-08490-0S
NUT, HEX. (8MM)
