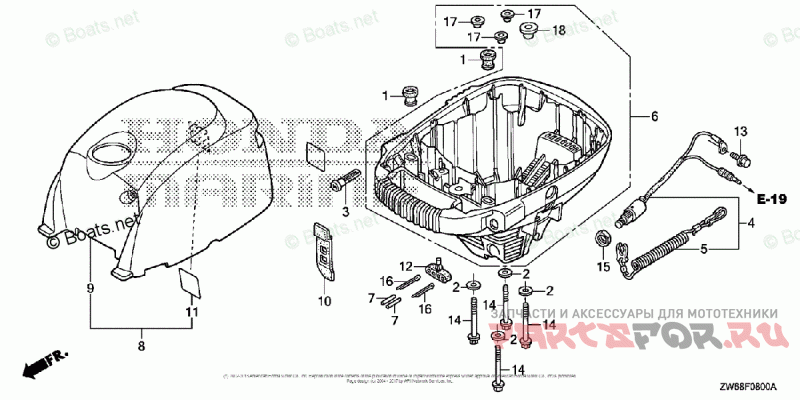

ENGINE COVER

Honda Marine BF2DK0 SCAB

Honda Marine
#oem кодцена
1
17514-ZV0-000
RUBBER, TANK MOUNTING (C)
2
17936-921-000
WASHER, PIVOT
3
17951-ZG1-000
KNOB, CHOKE
4
35180-ZW6-023
SEE PART DETAILS - PRI; SWITCH ASSY., EMERGENCY STOP
5
36182-ZV4-651
SEE PART DETAILS - PRI; WIRE, EMERGENCY | Use up to Frame SN 2300048.
6
40100-ZVA-000
SEE PART DETAILS - PRI; CASE, ENGINE (LOWER) | Use up to Frame SN 2301000.
7
58131-ZV0-000
PIN, SHEAR
12
88111-ZV0-000
HOLDER, PARTS
13
90019-ZW4-000
BOLT, FLANGE (5X10) (CT200)
14
90103-ZVA-000
SEE PART DETAILS - PRI; BOLT, FLANGE (6X60)
15
90302-921-000
NUT, HEX. (16MM)
16
90757-ZV0-000
PIN, SPLIT (3MM)
16
94201-30402
PIN, SPLIT (3.0)
17
91551-ZW6-000
COLLAR (6X4)
18
91552-ZW6-000
COLLAR, ENGINE CASE (LOWER)
